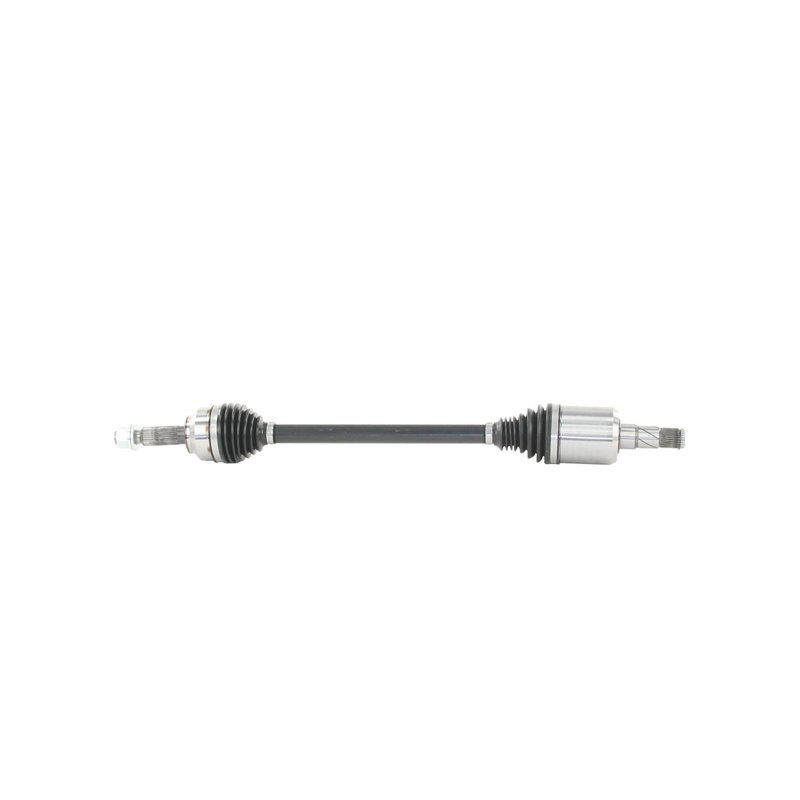

TrakMotive TS-86004 CV Axle Shaft - Front Left
| Brand | TrakMotive TS-86004 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 33.13 |
| Overall Compressed Length (mm) | 841 |
| Overall Extended Length (in) | 35.75 |
| Overall Extended Length (mm) | 908 |
| Product line | CV Axle Shaft |
| Fits | Tesla · 9 vehicles |
Premium grade. Built as a CV axle shaft with conventional joint design.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TS-86004 for the same application. See all 1.
TrakMotive TS-86004 CV Axle Shaft
TrakMotive TS-86004 is a premium CV axle shaft for the front left position on select Tesla X models. It is built for applications without a small drive unit and is listed for 2016-2021 Tesla X, plus 2022 Tesla X built after February 2021 and 2023-2024 Tesla X.
Key Features
- Premium-grade CV axle shaft for driveline service
- Front left application for select Tesla X vehicles
- 29 inboard splines and 30 outboard splines
- Male inboard joint with conventional outboard joint design
- Overall compressed length: 841 mm (33.13 in)
- Overall extended length: 908 mm (35.75 in)
- Axle nut thread size: M24x1.5
- Axle nut hex size: 32 mm
- No ABS tone ring included
Detailed Description
This TrakMotive CV axle shaft is engineered for the front left side of Tesla X models that do not use a small drive unit. The TS-86004 matches the listed spline counts, joint style, and shaft length requirements for the specified Tesla X fitments, making it a direct replacement option for driveline repair on 2016-2021 Tesla X, 2022 Tesla X after February 2021, and 2023-2024 Tesla X. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for application-specific fitment. Part number TS-86004 is part of that line and is backed by the manufacturer’s limited lifetime warranty. The company also states its ISO 9001:2008 and TS 16949:2009 certification.
Common Repair Uses
- Replacing a worn or noisy front left CV axle on a Tesla X
- Addressing clicking or vibration during acceleration and turning
- Restoring proper driveline engagement after axle wear
- Correcting axle fitment issues on Tesla X models without a small drive unit
- Servicing a damaged axle shaft with the correct spline and length specification
Installation Notes and Tips
Verify the vehicle build date before ordering, especially for 2022 Tesla X applications after February 2021. Confirm front left position, absence of a small drive unit, axle nut thread size M24x1.5, and 32 mm hex size before installation. Because no axle nut is included, reuse or replace the nut as required by the vehicle service procedure. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive identifies this axle as a premium replacement part and supports it with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2023 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2022 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | After Feb. 2021; CV Axle Shaft |
| 2021 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2020 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2019 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2018 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2017 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
| 2016 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | Without Small Drive Unit; CV Axle Shaft |
