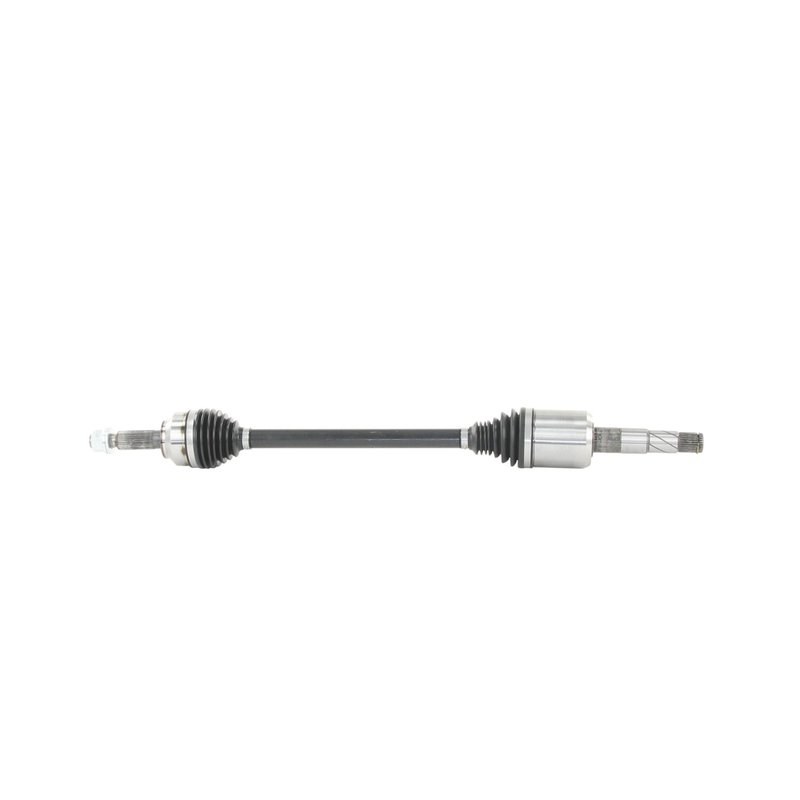

TrakMotive TS-86005 CV Axle Shaft - Front Right
| Brand | TrakMotive TS-86005 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 35.81 |
| Overall Compressed Length (mm) | 909 |
| Overall Extended Length (in) | 38.38 |
| Overall Extended Length (mm) | 976 |
| Product line | CV Axle Shaft |
| Fits | Tesla · 6 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TS-86005 and NCV99037 for the same application. See all 2.
Front Right CV Axle Shaft for Tesla Model X
TrakMotive TS-86005 is a premium CV axle shaft for the front right position on select Tesla Model X applications. It is built for vehicles built on or after 4/25/19 and is listed for 2019-2024 Tesla X fitment, including standard duty replacement coverage for 2021 models.
Key Features
- Front right CV axle shaft for Tesla Model X
- Premium grade construction
- Male inboard joint with conventional outboard joint
- 29 inboard splines and 30 outboard splines
- Overall compressed length: 909 mm (35.81 in)
- Overall extended length: 976 mm (38.38 in)
- 32 mm axle nut socket size, M24x1.5 thread size
- No ABS tone ring included; ABS ring tooth count: 0
Detailed Description
TrakMotive TS-86005 is a CV axle shaft engineered for the front right side of the Tesla Model X. This axle is specified for 2019-2020 Tesla X models built on or after 4/25/19 and 2022-2024 Tesla X models built on or after 4/25/19, plus 2021 Tesla X standard duty replacement applications. The design uses a male inboard joint and a conventional outboard joint, with 29 inboard splines and 30 outboard splines for the listed application.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. TS-86005 follows that product line approach with application-specific dimensions and spline counts for Tesla Model X front right service work. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part May Address
- Clicking or popping from the front right axle during turns
- Vibration or shudder from a worn driveline shaft
- Boot or joint wear that affects axle operation
- Loss of smooth power transfer to the front wheel
- Replacement needs after axle damage or excessive wear
Installation Notes and Tips
Verify Tesla Model X build date and front right application before ordering, since this axle is listed for vehicles built on or after 4/25/19. Confirm axle nut thread size, socket size, spline counts, and overall length against the original part before installation. The axle nut is not included, and no ABS tone ring is included.
Quality Assurance
TrakMotive lists TS-86005 as a premium CV axle shaft and notes ISO 9001:2008 and TS 16949:2009 certified company standards. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Tesla | X | BATTERY EV (EV/BEV) | Front Right | For Vehicles Built on or after 4/25/19; CV Axle Shaft |
| 2023 | Tesla | X | BATTERY EV (EV/BEV) | Front Right | For Vehicles Built on or after 4/25/19; CV Axle Shaft |
| 2022 | Tesla | X | BATTERY EV (EV/BEV) | Front Right | For Vehicles Built on or after 4/25/19; CV Axle Shaft |
| 2021 | Tesla | X | BATTERY EV (EV/BEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Tesla | X | BATTERY EV (EV/BEV) | Front Right | For Vehicles Built on or after 4/25/19; CV Axle Shaft |
| 2019 | Tesla | X | BATTERY EV (EV/BEV) | Front Right | For Vehicles Built on or after 4/25/19; CV Axle Shaft |
