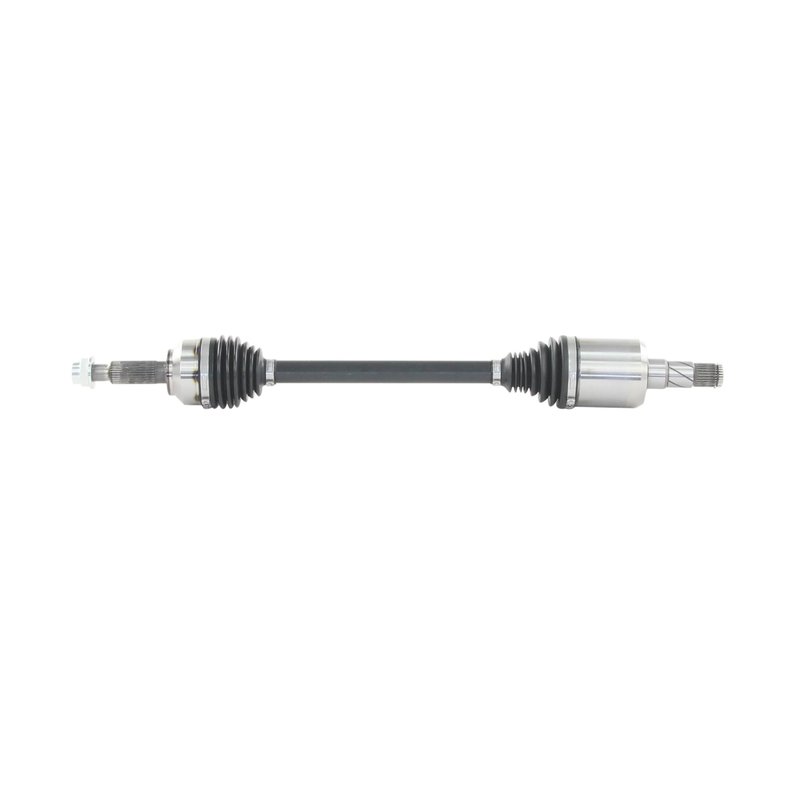

TrakMotive TS-86007 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Tesla Model X

TrakMotive TS-86007 is a premium CV axle shaft for the front left position on select Tesla Model X applications. It is built for standard-duty replacement use and is specified for vehicles with the correct axle spline and length requirements.

Key Features

• Front left CV axle shaft for Tesla Model X applications
• Premium grade replacement part
• Inboard joint type: male
• Inboard splines: 29; outboard splines: 30
• Overall compressed length: 31.25 in. (793 mm)
• Overall extended length: 33.81 in. (860 mm)
• Axle nut thread size: M24x1.5
• Axle nut hex/socket size: 36 mm
• No ABS tone ring included

Detailed Description

TrakMotive TS-86007 is a CV axle shaft engineered for the front left side of the Tesla Model X. It matches applications calling for a male inboard joint, 29 inboard splines, 30 outboard splines, and the listed compressed and extended lengths. This part is a direct-fit driveline replacement for 2016 Tesla Model X front left standard-duty applications and 2017-2020 Tesla Model X front left vehicles with the small drive unit, as well as 2021 Tesla Model X front left standard-duty replacement applications.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to meet application-specific fitment needs. TS-86007 follows that approach with the correct spline count, axle nut thread specification, and length dimensions for the listed Tesla Model X configurations. This part cross-references TrakMotive TS-86007 for the same application.

What It Helps Fix

• Clicking or popping during turns caused by worn CV joints
• Vibration from a damaged or out-of-balance axle shaft
• Grease leakage from a failing CV axle assembly
• Driveline noise from excessive axle wear
• Front left axle replacement needs on listed Tesla Model X vehicles

Installation Notes and Tips

Verify the vehicle’s front left application, drive unit configuration, spline counts, and axle length before installation. Confirm the axle nut thread size is M24x1.5 and use the correct 36 mm socket size for service procedures. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive TS-86007 is backed by a limited lifetime warranty. TrakMotive states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified company standards.
