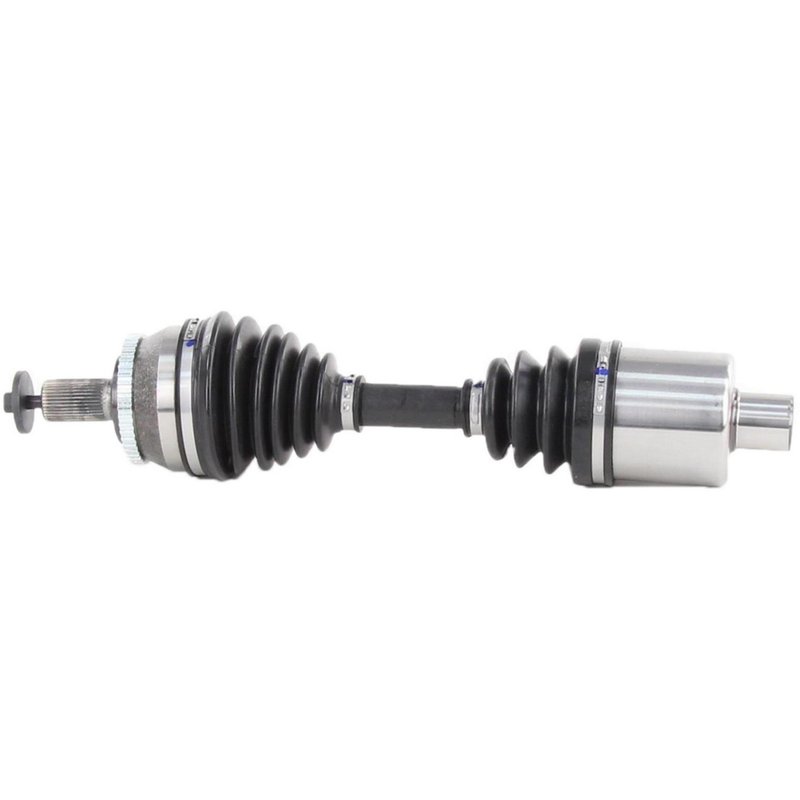

TrakMotive VO-8006 CV Axle Shaft - Front Left
| Brand | TrakMotive VO-8006 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 17.09 |
| Overall Compressed Length (mm) | 434 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 8 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references Cardone New 66-9233, TrakMotive VO-8006 and 80-7838 for the same application. See all 15.
TrakMotive CV Axle Shaft VO-8006
The TrakMotive VO-8006 is a new CV axle shaft for the front left position on select Volvo S80 models. Built for 1999-2006 Volvo S80 applications with a visco clutch, it supports smooth power transfer from the transmission to the wheel while matching the required OE-style fitment details.
TrakMotive’s CV Axle Shaft line focuses on direct replacement driveline components, and this VO-8006 axle follows that approach with application-specific dimensions, spline counts, and ABS tone ring details for the listed vehicle fitment.
Key Features
- Fits 1999-2006 Volvo S80, front left, with visco clutch
- New CV axle shaft for driveline repair and replacement
- Overall compressed length: 17.09 in. (434 mm)
- Inboard joint type: female
- Outboard joint type: Audi-style spline bolt
- Inboard splines: 35; outboard splines: 36
- Neoprene boot material for axle joint protection
- ABS tone ring included with 48-tooth toothed ring
- Axle bolt thread size: M10 x 1.5
- Axle bolt hex size: 12.8 mm; axle bolt length: 75 mm
Detailed Description
TrakMotive VO-8006 is a replacement CV axle shaft engineered for the front left side of the Volvo S80 in the listed 1999-2006 applications. It uses a female inboard connection and an Audi-style spline bolt outboard connection, with 35 inboard splines and 36 outboard splines to match the specified driveline setup. The axle measures 17.09 inches compressed and includes a toothed ABS tone ring with 48 teeth.
This part cross-references Cardone New 66-9233 for the same application. If you are searching for a Volvo S80 front left CV axle shaft, TrakMotive VO-8006 provides the fitment-specific details needed for a direct replacement decision.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration caused by axle wear
- Grease leakage from a damaged axle boot
- ABS warning concerns related to a missing or damaged tone ring
- Driveline noise from a fatigued front left axle assembly
Installation Notes and Tips
Verify the vehicle’s front left application, visco clutch configuration, spline counts, and axle bolt specifications before installation. Confirm that the ABS tone ring style matches the vehicle’s original setup, especially on ABS-equipped systems. Always compare the removed axle to the new part before final assembly to confirm length, joint style, and connection details.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards, supporting controlled manufacturing and product consistency.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Volvo | S80 | FWD | 2.9L | L6 | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 2005 | Volvo | S80 | FWD | 2.9L | L6 | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 2004 | Volvo | S80 | FWD | 2.9L | L6 | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 2003 | Volvo | S80 | — | — | — | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 2002 | Volvo | S80 | — | — | — | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 2001 | Volvo | S80 | — | — | — | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 2000 | Volvo | S80 | — | — | — | Front Left | w/ Visco Clutch; CV Axle Shaft |
| 1999 | Volvo | S80 | — | — | — | Front Left | w/ Visco Clutch; CV Axle Shaft |
