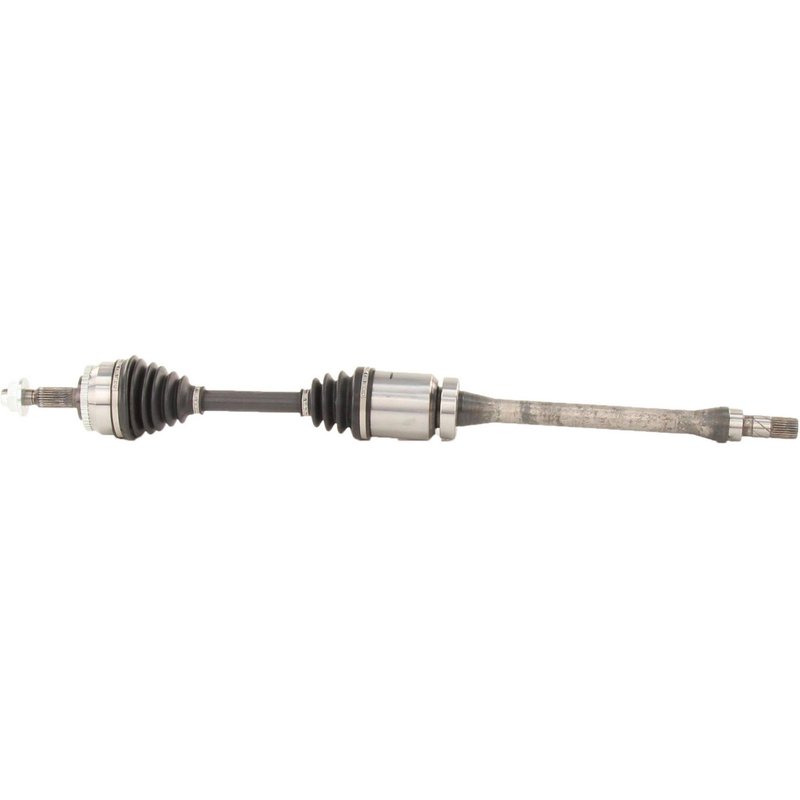

TrakMotive VO-8009 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VO-8009

The TrakMotive CV Axle Shaft VO-8009 is engineered for reliable driveline performance in Volvo S40 and V40 models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Volvo S40 and V40 models
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 37.46 inches (951.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This CV Axle Shaft VO-8009 features both inboard and outboard joints with 26 splines each, ensuring smooth power transfer and compatibility with the specified Volvo models. The inclusion of a toothed ABS ring and tone ring supports proper ABS sensor function, critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft is equipped with a neoprene boot that provides resistance against environmental elements and wear. The inboard joint uses a male connection style, while the outboard joint is conventional, matching the original equipment design. The axle nut is a hex type with a 36 mm hex size and a length of 41.5 mm, secured by a cotter pin locking system to maintain safe installation. The ABS ring tooth count of 43 and the included tone ring ensure accurate wheel speed readings for ABS operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Volvo S40 and V40
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft VO-8009, verify compatibility with your Volvo S40 or V40 model year. Use the included hex axle nut and cotter pin to secure the axle properly. Ensure the ABS tone ring is correctly positioned to maintain ABS sensor accuracy. It is recommended to inspect related suspension and driveline components during installation for optimal performance.

Quality Assurance and Warranty

This CV axle shaft is a new, direct replacement part manufactured to meet or exceed OEM standards. The use of high-quality materials such as neoprene for the boot and precision-machined splines supports long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment.
