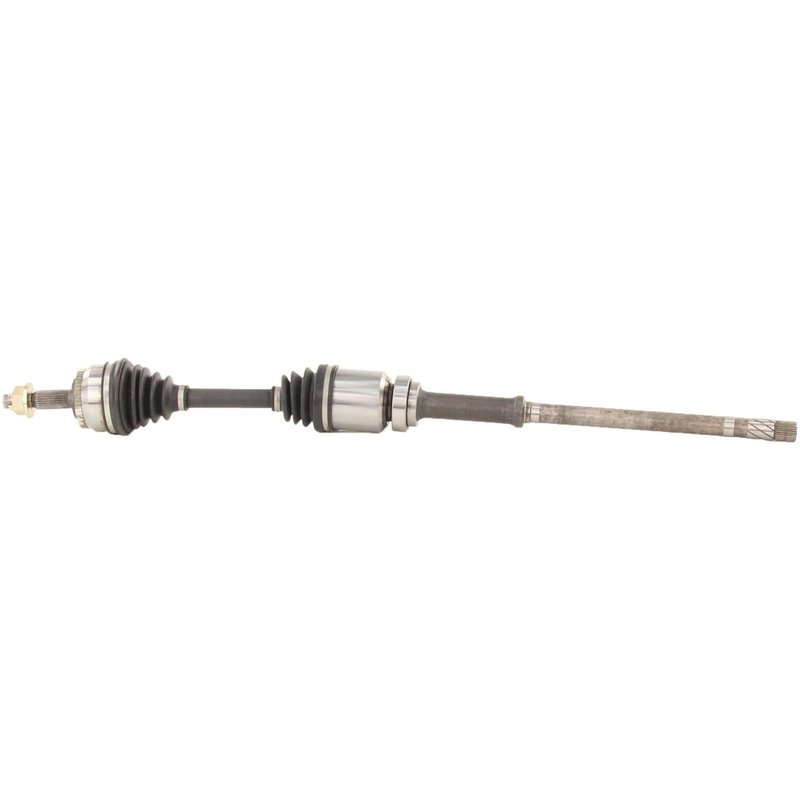

TrakMotive VO-8013 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VO-8013 for Volvo V70

The TrakMotive CV Axle Shaft VO-8013 is engineered specifically for Volvo V70 models, providing reliable driveline performance. This new CV axle shaft is designed to meet precise fitment requirements and restore proper vehicle handling and power transfer.

• Compatible with Volvo V70 vehicles
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 40.51 inches (1029 mm)
• Male inboard joint and conventional outboard joint types
• 26 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that match OEM specifications. This CV Axle Shaft VO-8013 is part of that line, ensuring compatibility and performance for Volvo V70 vehicles. The product line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts with cotter pin locking for secure installation.

Technical Specifications and Features

This CV axle shaft features a 43-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The axle nut is a hex head type measuring 36 mm across flats, with a height of 28.2 mm and length of 41.5 mm, secured by a cotter pin locking system. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint. Both the inboard and outboard shafts have 26 splines, with the inboard joint designed as male and the outboard joint conventional, ensuring a precise fit and smooth power transfer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volvo V70
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft VO-8013, ensure the ABS tone ring is properly aligned with the sensor. Use the included hex head axle nut and secure it with the cotter pin locking mechanism to prevent loosening. Verify spline engagement on both inboard and outboard connections for a secure fit. The neoprene boot should be inspected for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards for Volvo V70 driveline parts. The inclusion of the ABS tone ring and hardware reflects attention to detail in quality and fitment. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
