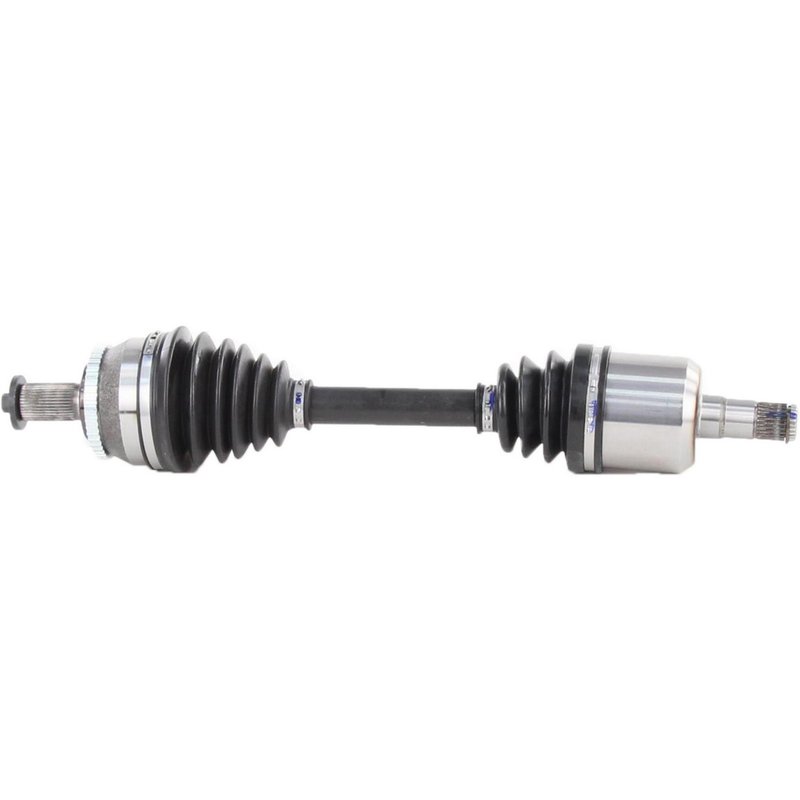

TrakMotive VO-8016 CV Axle Shaft - Front Left
| Brand | TrakMotive VO-8016 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 20.75 |
| Overall Compressed Length (mm) | 527 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 27 vehicles |
New replacement part. Built as a fresh CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps protect the joint with a durable, flexible seal.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references Cardone New 66-9252, Cardone Reman 60-9236 and Cardone Reman 60-9270 for the same application. See all 23.
Volvo S60 and V70 Front Left CV Axle Shaft
TrakMotive VO-8016 is a new CV axle shaft for the front left position on select Volvo applications. It is built with a neoprene boot, 26 inboard splines, 36 outboard splines, and an ABS tone ring with 48 teeth for applications that require wheel speed sensor signal support.
This CV axle shaft is compatible with 2001-2009 Volvo S60 front left and 2001-2007 Volvo V70 front left, including 2002-2007 Volvo V70 front left exc. XC. The TrakMotive CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles, and VO-8016 follows that approach for these Volvo platforms.
Key Features
- Part number: VO-8016
- Brand: TrakMotive CV Axle Shaft
- New construction
- Front left application
- Inboard joint type: male
- Outboard joint type: Audi-style spline bolt
- ABS tone ring included
- ABS ring type: toothed, 48-tooth count
- Neoprene boot material
- Overall compressed length: 20.75 in. (527 mm)
- Axle bolt thread size: M10 x 1.5
- Axle bolt hex size: 12.8 mm
- Axle bolt length: 75 mm
Detailed Description
VO-8016 is a replacement CV axle shaft for Volvo S60 and Volvo V70 front left driveline service. It uses a male inboard connection and an Audi-style spline bolt outboard connection, with 26 inboard splines and 36 outboard splines for the specified fitments. The included ABS tone ring and 48-tooth toothed ring support vehicles that use ABS-equipped axle signal input.
Cross-reference part numbers for the same application include Cardone New 66-9252 and Cardone Reman 60-9236.
What It Helps Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- ABS warning concerns related to a failed tone ring or axle signal component
- Driveline noise from excessive axle wear
Installation Notes and Tips
Verify axle length, spline count, and outboard connection style before installation. Confirm front left placement and check whether the vehicle uses ABS, since this axle includes an ABS tone ring and is listed for ABS and non-ABS applications unless otherwise noted. Inspect axle seals, hub hardware, and surrounding suspension components during service to help prevent repeat repairs.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified. Those quality systems support consistent manufacturing control for replacement driveline components such as VO-8016.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2009 | Volvo | S60 | — | — | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2008 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2007 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2007 | Volvo | V70 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2007 | Volvo | V70 | — | — | AWD | Automatic | — | — | Front Left | Exc. XC; CV Axle Shaft |
| 2006 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2006 | Volvo | V70 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2006 | Volvo | V70 | — | — | AWD | Automatic | — | — | Front Left | Exc. XC; CV Axle Shaft |
| 2005 | Volvo | S60 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2005 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2005 | Volvo | V70 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2005 | Volvo | V70 | — | — | AWD | Automatic | — | — | Front Left | Exc. XC; CV Axle Shaft |
| 2004 | Volvo | S60 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2004 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2004 | Volvo | V70 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2004 | Volvo | V70 | — | — | AWD | Automatic | — | — | Front Left | Exc. XC; CV Axle Shaft |
| 2003 | Volvo | S60 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2003 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2003 | Volvo | V70 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2003 | Volvo | V70 | — | — | AWD | Automatic | — | — | Front Left | Exc. XC; CV Axle Shaft |
| 2002 | Volvo | S60 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2002 | Volvo | S60 | — | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2002 | Volvo | V70 | Base | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2002 | Volvo | V70 | AWD | — | AWD | Automatic | — | — | Front Left | Exc. XC; CV Axle Shaft |
| 2001 | Volvo | S60 | — | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2001 | Volvo | V70 | X/C | — | AWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2001 | Volvo | V70 | — | Wagon | FWD | Automatic | 2.4L | L5 | Front Left | CV Axle Shaft |
