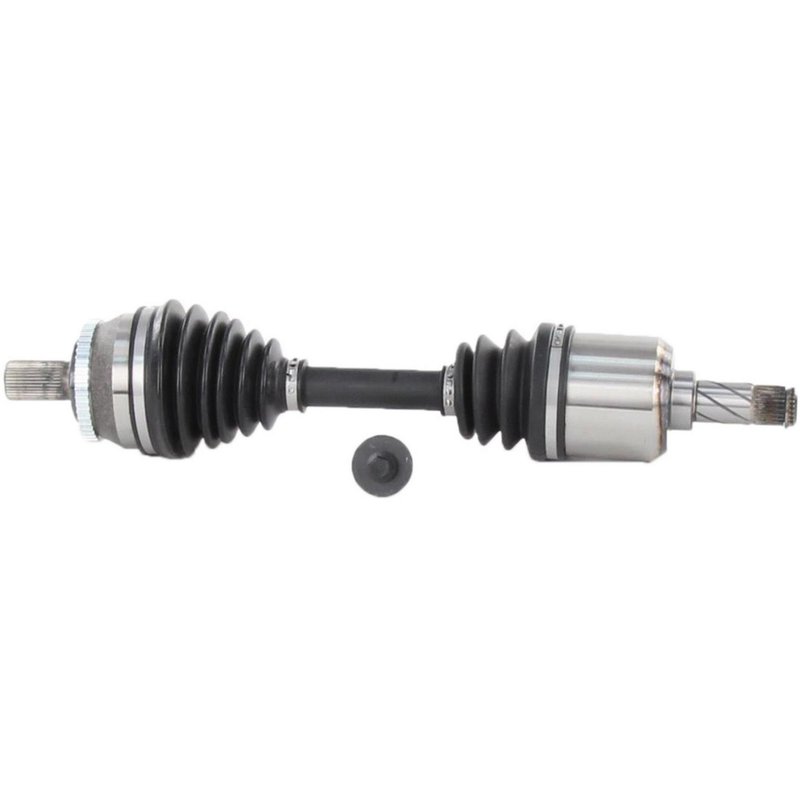

TrakMotive VO-8017 CV Axle Shaft - Front Left
| Brand | TrakMotive VO-8017 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 20.51 |
| Overall Compressed Length (mm) | 521 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 15 vehicles |
New part. Freshly manufactured for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-9240, Cardone Reman 60-9240 and Cardone Reman 60-9264 for the same application. See all 21.
TrakMotive VO-8017 CV Axle Shaft
The TrakMotive VO-8017 is a new front left CV axle shaft for select Volvo C70, S70, and V70 applications. It is built with a neoprene boot, 26 inboard splines, 36 outboard splines, and an ABS tone ring with 48 teeth for the listed fitments.
Key Features
- New CV axle shaft for front left driveline service
- Neoprene boot material for the outer joint assembly
- 26 inboard splines and 36 outboard splines
- ABS tone ring included; toothed ring with 48 teeth
- Inboard joint type: male
- Outboard connection: Audi-style spline bolt
- Overall compressed length: 20.51 in. (521 mm)
- Axle bolt thread size: M10 x 1.5
- Axle bolt length: 75 mm; hex size: 12.8 mm
Detailed Description
TrakMotive CV Axle Shaft VO-8017 is a direct-fit driveline replacement for the front left side on 1999-2004 Volvo C70, 1999-2000 Volvo S70, and 1999-2000 Volvo V70, including the 2000 Volvo V70 exc. R application. This axle is configured as a new unit with a male inboard shaft connection and an Audi-style spline bolt outboard connection, matching the listed OE-style dimensions and spline counts for the specified Volvo platforms. TrakMotive’s CV Axle Shaft line focuses on application-specific driveline replacement parts, and VO-8017 follows that approach with the correct compressed length and ABS tone ring setup for the covered vehicles.
This part cross-references Cardone New 66-9240 and Cardone Reman 60-9240 for the same application.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a failed tone ring setup
- Driveline noise from spline or joint wear
Installation Notes and Tips
- Verify front left placement and confirm the vehicle’s year, model, and ABS configuration before installation.
- Match the axle bolt thread size, bolt length, and spline counts to the removed part.
- Inspect hub, transmission seal, and mounting surfaces for wear before installing the new axle.
- Use the correct torque procedure for axle fasteners and follow the vehicle service manual.
Quality Assurance
TrakMotive lists this CV axle shaft as a new replacement part and states that its products are backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing operations.
Compatible With 1999-2004 Volvo C70, front left; 1999-2000 Volvo S70, front left; and 1999-2000 Volvo V70, front left. Fits 2000 Volvo V70, front left, exc. R.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Volvo | C70 | — | Manual | Front Left | CV Axle Shaft |
| 2003 | Volvo | C70 | — | Manual | Front Left | CV Axle Shaft |
| 2002 | Volvo | C70 | — | Manual | Front Left | CV Axle Shaft |
| 2001 | Volvo | C70 | — | Manual | Front Left | CV Axle Shaft |
| 2000 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2000 | Volvo | S70 | — | Manual | Front Left | CV Axle Shaft |
| 2000 | Volvo | S70 | FWD | Automatic | Front Left | CV Axle Shaft |
| 2000 | Volvo | V70 | FWD | Manual | Front Left | CV Axle Shaft |
| 2000 | Volvo | V70 | AWD | — | Front Left | Exc. R; CV Axle Shaft |
| 2000 | Volvo | V70 | FWD | Automatic | Front Left | CV Axle Shaft |
| 1999 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 1999 | Volvo | S70 | — | — | Front Left | CV Axle Shaft |
| 1999 | Volvo | V70 | FWD | Manual | Front Left | CV Axle Shaft |
| 1999 | Volvo | V70 | AWD | — | Front Left | CV Axle Shaft |
| 1999 | Volvo | V70 | FWD | Automatic | Front Left | CV Axle Shaft |
