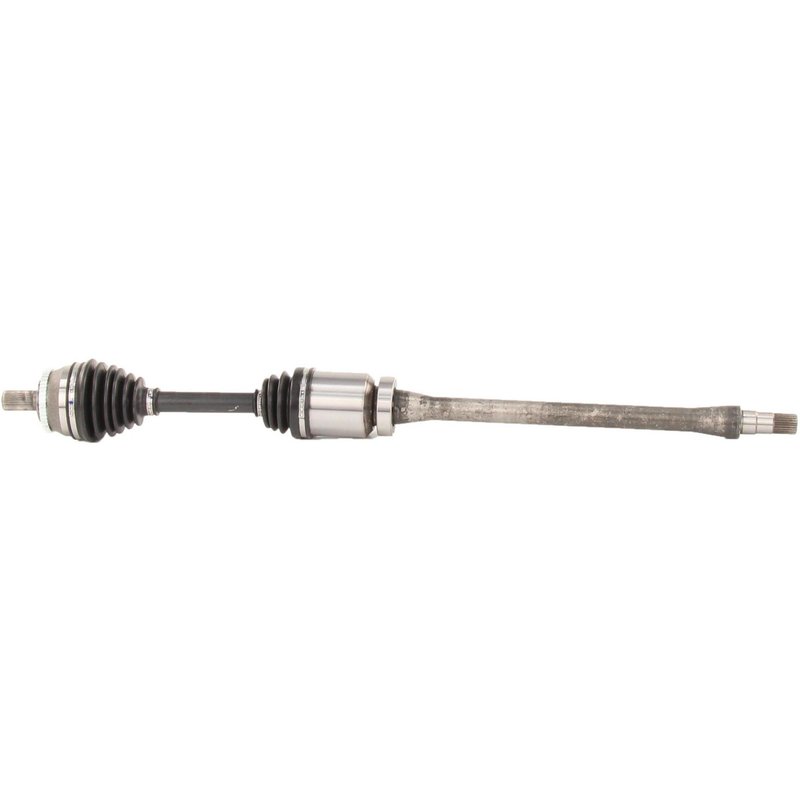

TrakMotive VO-8019 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VO-8019 for Volvo S60 and V70

The TrakMotive CV Axle Shaft VO-8019 is engineered specifically for Volvo S60 and V70 models, providing reliable driveline performance. This new CV axle shaft is designed to meet precise fitment requirements and ensure smooth power transfer from the transmission to the wheels.

• Compatible with Volvo S60 and V70 vehicles
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Includes ABS tone ring with 48 toothed ring teeth
• Axle bolt specifications: 12.8 mm hex size, 75 mm length, M10*1.5 thread size
• Inboard joint type: Male with 26 splines
• Outboard joint type: Audi style spline bolt with 36 splines
• Overall compressed length: 974 mm (38.35 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. The VO-8019 part number represents a new axle shaft designed to maintain factory specifications, including ABS tone ring integration and robust neoprene boots. This line emphasizes compatibility and durability for Volvo models requiring exact fitment and reliable performance.

Technical Description and Features

The VO-8019 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The included ABS tone ring with 48 teeth and a toothed design ensures accurate wheel speed sensor readings, critical for ABS functionality. The axle bolts are sized with a 12.8 mm hex, 75 mm length, and M10*1.5 thread, matching factory hardware requirements. The inboard joint uses a male connection with 26 splines, while the outboard joint employs an Audi style spline bolt with 36 splines, ensuring secure and precise fitment. The overall compressed length of 974 mm (38.35 inches) aligns with Volvo S60 and V70 specifications.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volvo S60 and V70
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Addresses axle shaft failure due to joint wear or spline damage

Installation Notes and Tips

Ensure the axle bolt torque specifications match Volvo factory recommendations when installing the VO-8019 CV axle shaft. Verify the ABS tone ring is properly seated to maintain sensor accuracy. Inspect the mating surfaces and splines for cleanliness before assembly to avoid premature wear. Use appropriate tools for the 12.8 mm hex axle bolt and confirm the M10*1.5 thread engagement is secure. It is recommended to replace axle nuts separately as they are not included with this part.

Quality Assurance and Warranty

The TrakMotive VO-8019 CV Axle Shaft is a new component manufactured to meet OEM standards for fit and function. It includes a neoprene boot and ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in Volvo S60 and V70 applications.
