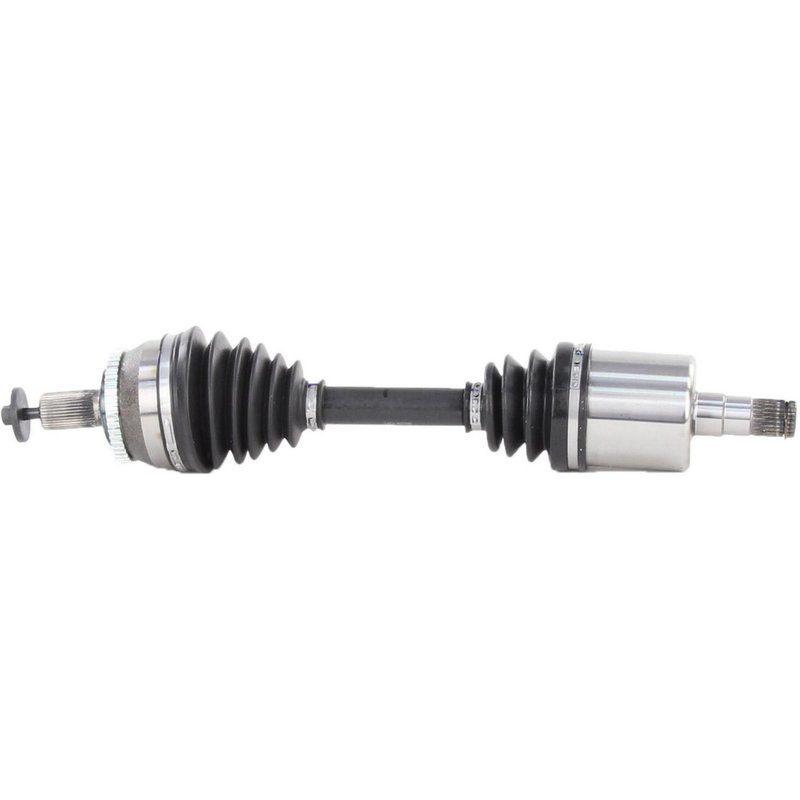

TrakMotive VO-8036 CV Axle Shaft - Front Left
| Brand | TrakMotive VO-8036 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 19.92 |
| Overall Compressed Length (mm) | 506 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 9 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references Atlantic Automotive Engineering 7830N, Cardone New 66-9250 and TrakMotive VO-8036 for the same application. See all 13.
Volvo Front Left CV Axle Shaft
The TrakMotive VO-8036 is a new CV axle shaft for front left applications on select Volvo models. It is built with a neoprene boot, 26 inboard splines, 36 outboard splines, and an ABS tone ring with 48 teeth for the specified applications.
Compatible with 2001-2007 Volvo C70 front left, 2000 Volvo S70 front left, and 2000 Volvo V70 front left, this TrakMotive CV axle shaft is a direct driveline replacement for vehicles requiring the listed spline and ABS configuration. The VO-8036 part number is also referenced in interchange listings for related aftermarket applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VO-8036
- New axle shaft construction
- Front left position
- Neoprene boot material
- Male inboard joint and male inboard shaft connection style
- Audi-style spline bolt outboard joint and shaft connection
- 26 inboard splines and 36 outboard splines
- ABS tone ring included with 48-tooth toothed ring
- Overall compressed length: 19.92 in. (506 mm)
Product Details
TrakMotive VO-8036 is part of the CV Axle Shaft line and is engineered for driveline service where the original axle has worn splines, damaged boots, vibration, or clicking during turns. The axle uses a neoprene boot and the specified ABS ring configuration to match the listed Volvo front left applications. TrakMotive identifies this axle as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Cardone New 66-9250 for the same application. The VO-8036 designation is useful when verifying replacement fitment for Volvo C70, Volvo S70, and Volvo V70 front left driveline service.
Common Issues This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration caused by a damaged or worn axle shaft
- Torn axle boot conditions that can lead to grease loss and contamination
- ABS-related driveline replacement needs when the tone ring configuration must match
- Front left axle wear on listed Volvo C70, S70, and V70 applications
Installation Notes
Verify spline counts, compressed length, and ABS ring details before installation. Confirm the axle bolt thread size, bolt length, and hex size against the vehicle’s original hardware and service information. Because this axle uses an Audi-style spline bolt outboard connection, proper alignment and torque procedures are important during installation.
For fitment, use the exact vehicle listing: Fits 2001-2007 Volvo C70, front left; Fits 2000 Volvo S70, front left; Fits 2000 Volvo V70, front left.
Quality Assurance
TrakMotive states that this CV axle shaft is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. The VO-8036 also carries a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2006 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2005 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2004 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2003 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2002 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2001 | Volvo | C70 | — | Automatic | Front Left | CV Axle Shaft |
| 2000 | Volvo | S70 | FWD | Automatic | Front Left | CV Axle Shaft |
| 2000 | Volvo | V70 | FWD | Automatic | Front Left | CV Axle Shaft |
