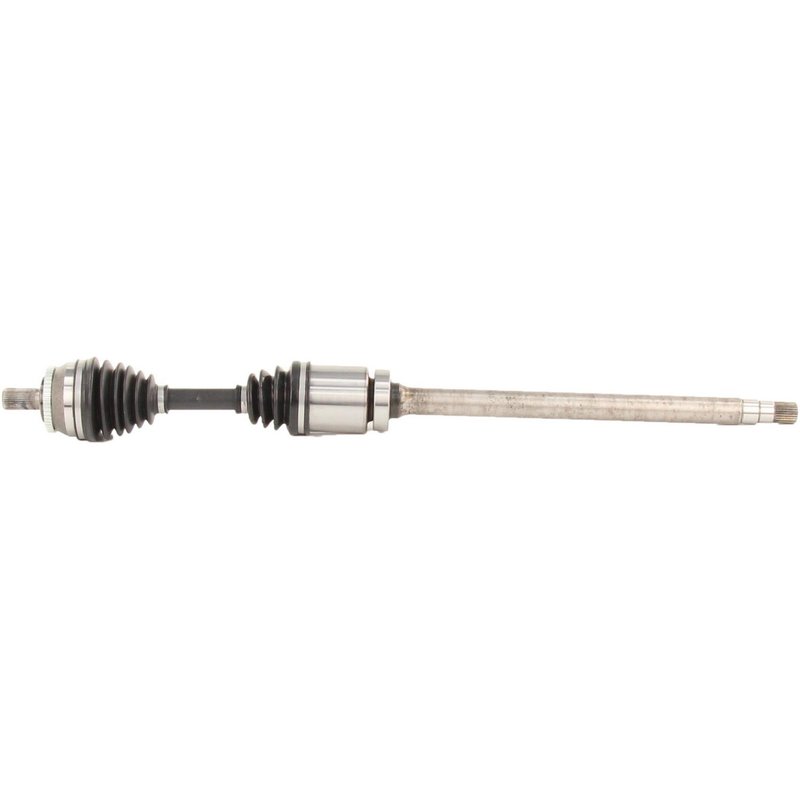

TrakMotive VO-8037 CV Axle Shaft - Front Right
| Brand | TrakMotive VO-8037 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 37.6 |
| Overall Compressed Length (mm) | 955 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 9 vehicles |
New unit. Built as a fresh replacement, not remanufactured.
Neoprene boot. Flexible material helps protect the joint from wear.
ABS tone ring included. Ready for applications that use wheel-speed sensing.
Cross-references Atlantic Automotive Engineering 7831N, Cardone Reman 60-9241 and Cardone Reman 60-9251 for the same application. See all 10.
TrakMotive CV Axle Shaft for Volvo Front Right
The TrakMotive VO-8037 is a new CV axle shaft for front right applications on select Volvo models. It is built with a neoprene boot, ABS tone ring, and OE-style shaft connections to support smooth driveline operation and accurate wheel speed signal transfer where equipped.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VO-8037
- New axle shaft with 955 mm overall compressed length
- Front right position
- Inboard joint type: male
- Outboard joint type: Audi-style spline bolt
- 26 inboard splines and 36 outboard splines
- 48-tooth toothed ABS ring with tone ring included
- Neoprene boot material
- Axle bolt thread size: M10 x 1.5
Detailed Description
TrakMotive VO-8037 is a CV axle shaft for Volvo C70, Volvo S70, and Volvo V70 front right applications. This CV axle shaft uses a male inboard connection and an Audi-style spline bolt outboard connection, with 26 inboard splines and 36 outboard splines for the specified fitments. The integrated 48-tooth ABS ring and included tone ring support vehicles equipped with ABS, while TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted. The VO-8037 is a direct-fit driveline replacement for 2001-2007 Volvo C70, 2000 Volvo S70, and 2000 Volvo V70 front right service needs.
This part cross-references Cardone Reman 60-9241 and 60-9251 for the same application.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or imbalanced axle shaft
- ABS warning concerns related to a failed tone ring or sensor signal path
- Grease leakage from a deteriorated axle boot
- Driveline noise from spline wear or joint wear
Installation Notes and Tips
Confirm front right fitment by year, model, and axle configuration before installation. Verify spline counts, axle bolt thread size, and compressed length against the original part. Inspect the hub, seals, and mating components for wear before installing the new axle shaft. Use the correct torque specifications and follow the vehicle service procedure for axle removal and reinstallation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states that its products are manufactured under ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Volvo | C70 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2006 | Volvo | C70 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2005 | Volvo | C70 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2004 | Volvo | C70 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2003 | Volvo | C70 | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Volvo | C70 | — | Automatic | 2.4L | L5 | Front Right | CV Axle Shaft |
| 2001 | Volvo | C70 | — | Automatic | 2.4L | L5 | Front Right | CV Axle Shaft |
| 2000 | Volvo | S70 | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 2000 | Volvo | V70 | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| No rows match your filter. | ||||||||
