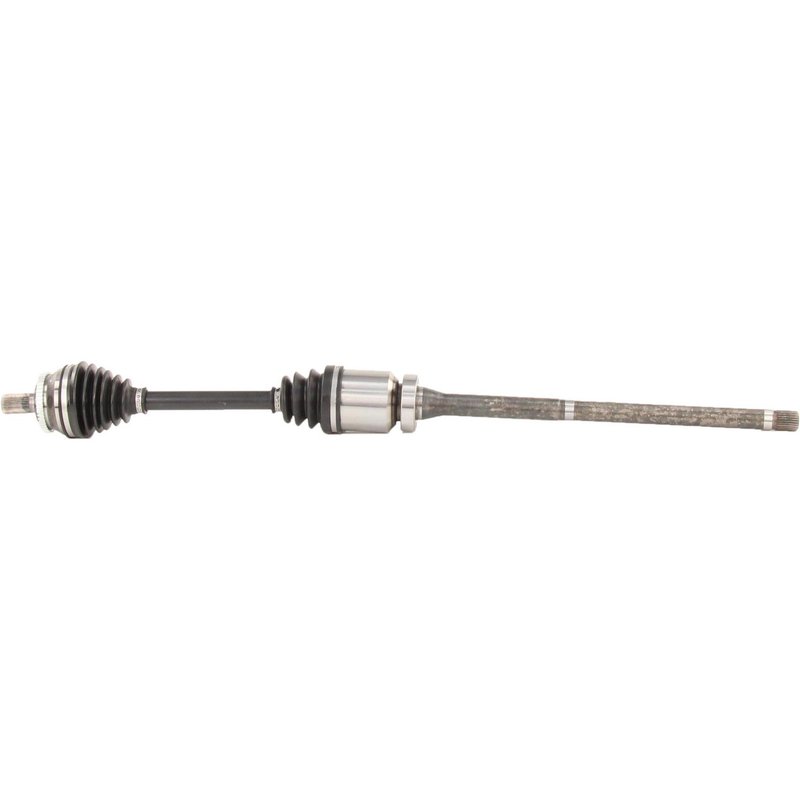

TrakMotive VO-8042 CV Axle Shaft - Front Right
| Brand | TrakMotive VO-8042 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 39.65 |
| Overall Compressed Length (mm) | 1007 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 7 vehicles |
New part. Built as a fresh replacement CV axle shaft.
Neoprene boot. Flexible material helps protect the joint from wear.
ABS tone ring included. Ready for applications that use wheel speed sensing.
Cross-references Cardone New 66-9263, Cardone Reman 60-9263 and Four Seasons 7809N for the same application. See all 13.
Volvo XC70 Front Right CV Axle Shaft
TrakMotive VO-8042 is a new front right CV axle shaft for select Volvo applications, including 2003-2007 Volvo XC70 and 2001-2002 Volvo V70. It is built with a neoprene boot, 26 inboard splines, 36 outboard splines, and an Audi-style spline bolt outboard joint for a direct driveline service replacement.
Key Features
- New CV axle shaft for the front right position
- Fits 2003-2007 Volvo XC70, front right
- Fits 2001-2002 Volvo V70, front right
- ABS tone ring included with 48-tooth toothed ring
- Male inboard shaft connection style
- Audi-style spline bolt outboard joint
- Neoprene boot material for driveline protection
- Overall compressed length: 39.65 in. (1007 mm)
- Axle bolt thread size: M10 x 1.5
Product Details
TrakMotive VO-8042 is a CV axle shaft built for front right driveline service on Volvo XC70 and Volvo V70 models listed above. The axle uses a male inboard connection, an Audi-style spline bolt outboard connection, and a 48-tooth ABS tone ring. TrakMotive identifies this part as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-9263 and Cardone Reman 60-9263 for the same application.
Common Issues This Part Can Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or bent axle shaft
- Grease leakage from a torn axle boot
- ABS warning concerns related to a damaged tone ring or axle assembly
- Driveline noise from spline or joint wear
Installation Notes and Tips
Verify front right fitment by year, model, spline count, and axle connection style before installation. Confirm axle bolt thread size, bolt length, and hex size against the vehicle’s service requirements. Inspect related seals, hub components, and suspension hardware during replacement to help prevent repeat driveline noise or vibration. Use the vehicle’s service procedure for torque specifications and final ABS system checks after installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Volvo | XC70 | — | — | — | — | Front Right | CV Axle Shaft |
| 2006 | Volvo | XC70 | — | — | — | — | Front Right | CV Axle Shaft |
| 2005 | Volvo | XC70 | — | — | — | — | Front Right | CV Axle Shaft |
| 2004 | Volvo | XC70 | — | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Volvo | XC70 | — | — | — | — | Front Right | CV Axle Shaft |
| 2002 | Volvo | V70 | X/C | Wagon | AWD | Automatic | Front Right | CV Axle Shaft |
| 2001 | Volvo | V70 | — | Wagon | AWD | Automatic | Front Right | CV Axle Shaft |
