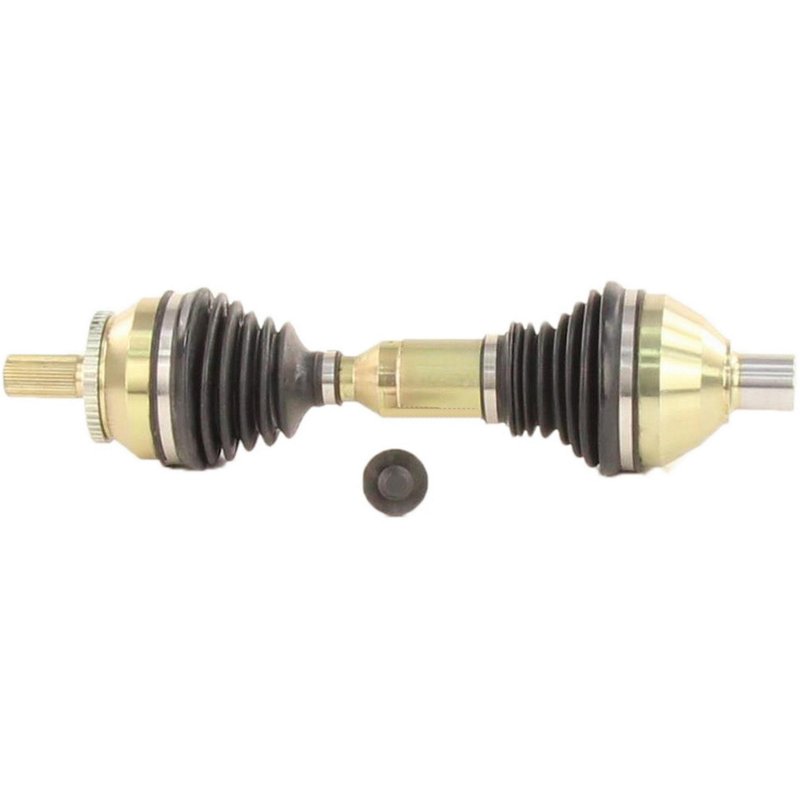

TrakMotive VO-8047 CV Axle Shaft - Front Left
| Brand | TrakMotive VO-8047 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 18.7 |
| Overall Compressed Length (mm) | 475 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 5 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS-ready design. Includes a toothed tone ring with 48 teeth.
Cross-references TrakMotive VO-8047, 80-7845 and 7839XB for the same application. See all 9.
Volvo XC90 Front Left CV Axle Shaft
The TrakMotive VO-8047 CV axle shaft is a new driveline replacement for the front left position on select 2003-2006 Volvo XC90 models. Built with a neoprene boot and OE-style spline connections, it is designed for direct replacement service where a worn or damaged axle is causing driveline noise, vibration, or torque transfer issues.
Key Features
- Fits 2003-2006 Volvo XC90, front left
- TrakMotive CV Axle Shaft, part number VO-8047
- New axle assembly with 475 mm overall compressed length
- 35 inboard splines and 36 outboard splines
- Male inboard shaft connection style
- Outboard Audi-style spline bolt joint
- Neoprene boot material for flexible sealing performance
- ABS tone ring included with 48-tooth toothed ring
- Axle bolt thread size: M10 x 1.5
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
TrakMotive VO-8047 is a front left CV axle shaft for the Volvo XC90, engineered as a new replacement driveline component. It uses a male inboard connection and an outboard spline-bolt design, with an ABS tone ring included for applications that require wheel speed signal integration. The 18.7-inch compressed length, spline counts, and bolt specifications help support accurate fitment for the listed vehicle application. This part number, VO-8047, is also referenced in interchange listings for related aftermarket replacement needs.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for direct-fit service across covered applications. For buyers searching for a Volvo XC90 front left CV axle shaft, VO-8047 provides the key dimensions and connection style details needed to match the original axle configuration.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from a damaged axle boot
- Driveline looseness from spline or joint wear
- ABS warning concerns related to a damaged tone ring or axle sensor interface
Installation Notes and Tips
Verify the front left position, spline counts, axle bolt thread size, and overall compressed length before installation. Confirm whether the vehicle uses ABS, since this axle includes an ABS tone ring and toothed ring configuration. Inspect related seals, hub components, and mounting points during replacement to help ensure proper operation after installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The VO-8047 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Volvo | XC90 | T6 | Front Left | CV Axle Shaft |
| 2005 | Volvo | XC90 | T6 | Front Left | CV Axle Shaft |
| 2005 | Volvo | XC90 | T6 Premier | Front Left | CV Axle Shaft |
| 2004 | Volvo | XC90 | T6 | Front Left | CV Axle Shaft |
| 2003 | Volvo | XC90 | T6 | Front Left | CV Axle Shaft |
