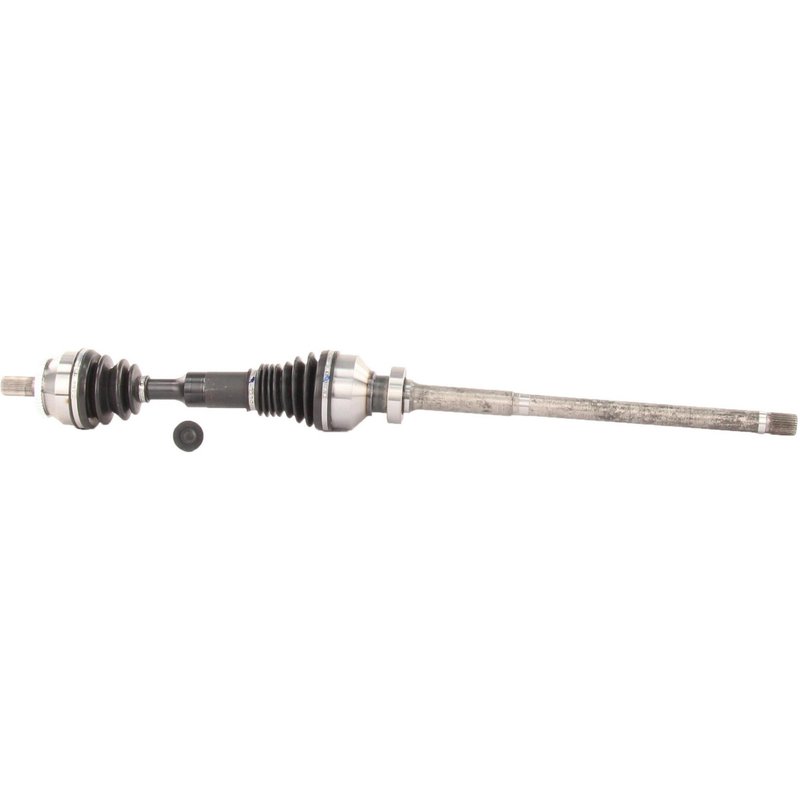

TrakMotive VO-8059 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VO-8059 for Volvo XC90

The TrakMotive CV Axle Shaft VO-8059 is designed specifically for Volvo XC90 models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Volvo XC90 vehicles
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability and protection
• Includes ABS tone ring with 48 toothed ring teeth
• Axle bolt specifications: 12.8 mm hex size, 75 mm length, M10*1.5 thread size
• Inboard joint type: Male with 28 splines
• Outboard joint type: Audi style spline bolt with 36 splines
• Overall compressed length: 1028 mm (40.47 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes new parts engineered to meet or exceed OEM specifications, including critical features such as ABS tone rings and durable neoprene boots. The VO-8059 model exemplifies this approach by combining exact fitment for the Volvo XC90 with quality materials and design.

Technical Description and Specifications

The VO-8059 CV axle shaft is engineered with a 48-tooth ABS ring that is toothed and included with the assembly, ensuring proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint features a male connection style with 28 splines, while the outboard joint uses an Audi style spline bolt with 36 splines, providing secure and precise engagement. The axle bolts have a hex size of 12.8 mm, a length of 75 mm, and a thread size of M10*1.5, designed for proper installation without the need for an axle nut, which is not included. The overall compressed length of 1028 mm (40.47 inches) matches Volvo XC90 specifications for optimal driveline geometry.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volvo XC90
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage and joint contamination with durable neoprene boot
• Addresses driveline instability caused by spline or joint wear

Installation Notes and Tips

When installing the TrakMotive VO-8059 CV axle shaft, ensure the vehicle is securely lifted and supported. Verify the spline counts and joint types match the original equipment. Use the specified axle bolts (12.8 mm hex, 75 mm length, M10*1.5 thread) and torque to manufacturer specifications. Since the axle nut is not included, reuse the original or source separately. Inspect the neoprene boot for proper seating to prevent contamination. Confirm ABS tone ring alignment for accurate sensor readings.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet OEM standards for fit and function. The inclusion of the ABS tone ring and use of durable materials like neoprene for the boot reflect attention to quality and longevity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Volvo XC90 driveline applications.
