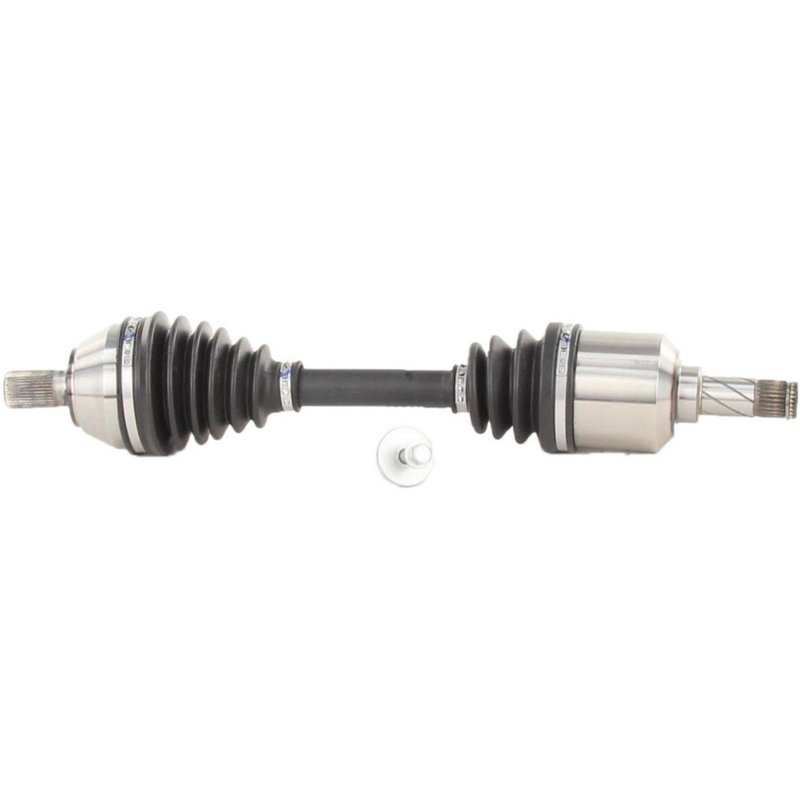

TrakMotive VO-8072 CV Axle Shaft - Front Left
| Brand | TrakMotive VO-8072 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.22 |
| Overall Compressed Length (mm) | 539 |
| Product line | CV Axle Shaft |
| Fits | Volvo · 11 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service replacement.
Neoprene boot. Flexible boot material helps protect the joint from road grime and moisture.
ISO certified company. Manufactured by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Four Seasons 7862N, TrakMotive VO-8072 and 360005474 for the same application. See all 3.
Volvo S40 V50 Front Left CV Axle Shaft
TrakMotive VO-8072 is a new front left CV axle shaft for select Volvo S40 and Volvo V50 applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to match the listed driveline configuration.
Compatible with 2005-2010 Volvo V50, front left, and 2005-2008 Volvo S40, front left; also fits 2010 Volvo S40, front left. This TrakMotive CV axle shaft, part number VO-8072, is a direct driveline replacement for vehicles requiring the specified spline and bolt dimensions.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VO-8072
- New replacement axle shaft
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- 26 inboard splines and 36 outboard splines
- Overall compressed length: 21.22 in. (539 mm)
- Axle bolt thread size: M10 x 1.5
- Axle bolt hex size: 12.8 mm
- Axle bolt length: 75 mm
- No ABS tone ring included
Product Details
TrakMotive VO-8072 is part of the CV Axle Shaft line and is engineered for front left driveline service on the listed Volvo platforms. The axle uses a male inboard joint and a conventional outboard joint, with the specified spline counts and compressed length to match the original application requirements. The manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted, and this axle is supplied without an ABS tone ring.
This part cross-references Four Seasons 7862N for the same application.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a worn or damaged axle shaft
- Grease leakage from a deteriorated boot
- Driveline noise from excessive axle wear
- Front left axle failure on Volvo S40 and Volvo V50 models
Installation Notes
Verify spline count, axle bolt thread size, and compressed length before installation. Confirm whether the vehicle is equipped for the listed front left application and compare the original axle to VO-8072 before assembly. Use the correct torque specifications for the axle bolt and related fasteners during installation.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:1007 and TS 16949:2009 certified, supporting controlled manufacturing and quality processes for driveline components.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Volvo | S40 | AWD | Manual | Front Left | CV Axle Shaft |
| 2010 | Volvo | V50 | AWD | Manual | Front Left | CV Axle Shaft |
| 2009 | Volvo | V50 | AWD | — | Front Left | CV Axle Shaft |
| 2008 | Volvo | S40 | AWD | Manual | Front Left | CV Axle Shaft |
| 2008 | Volvo | V50 | AWD | — | Front Left | CV Axle Shaft |
| 2007 | Volvo | S40 | AWD | Manual | Front Left | CV Axle Shaft |
| 2007 | Volvo | V50 | AWD | Manual | Front Left | CV Axle Shaft |
| 2006 | Volvo | S40 | AWD | Manual | Front Left | CV Axle Shaft |
| 2006 | Volvo | V50 | AWD | Manual | Front Left | CV Axle Shaft |
| 2005 | Volvo | S40 | AWD | Manual | Front Left | CV Axle Shaft |
| 2005 | Volvo | V50 | AWD | Manual | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||||
