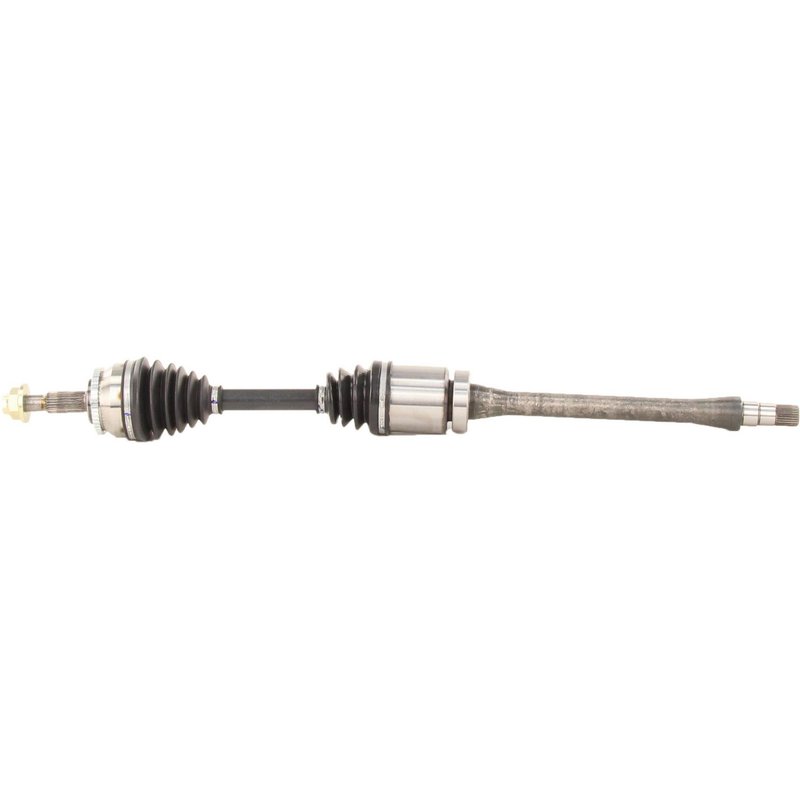

TrakMotive VO-8084 CV Axle Shaft - Front Right

Overview of TrakMotive AAR CV Axle Shaft VO-8084

The TrakMotive AAR CV Axle Shaft VO-8084 is engineered for reliable driveline performance in Volvo S40 and V40 models. Designed as a new replacement part, this CV axle shaft ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Volvo S40 and V40 models
• Includes a toothed ABS tone ring with 43 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a male inboard joint and conventional outboard joint for secure shaft connection
• Comes with a hex head axle nut with cotter pin locking for secure installation
• Overall compressed length of 36.85 inches (936 mm) for exact fitment

Detailed Product Features and Specifications

This CV axle shaft from TrakMotive's AAR CV Axle Shaft line is designed to meet the specific requirements of Volvo S40 and V40 vehicles. The part number VO-8084 includes a 43-tooth ABS ring that is toothed and integrated with the tone ring, ensuring compatibility with the vehicle's anti-lock braking system. The axle nut is a hex type with a 36 mm hex size and a height of 28.2 mm, secured by a cotter pin locking mechanism to maintain safety and reliability during operation.

The shaft features 26 splines on both the inboard and outboard ends, with the inboard joint designed as a male connection and the outboard joint using a conventional spline style. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the CV joint. The overall compressed length of 36.85 inches (936 mm) ensures proper alignment and fit within the driveline assembly.

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft product line by TrakMotive focuses on delivering precise, vehicle-specific CV axle components. This line emphasizes compatibility with original equipment specifications, including ABS tone ring integration and secure axle nut designs. The VO-8084 model exemplifies this approach by combining robust materials and exact measurements tailored for Volvo S40 and V40 applications.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Volvo S40 and V40
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included hex axle nut and cotter pin locking

Installation Notes and Tips

• Verify vehicle compatibility with Volvo S40 or V40 before installation
• Ensure the axle nut thread size M22*1.5 matches the hub assembly
• Use proper torque specifications for the 36 mm hex axle nut and secure with cotter pin
• Inspect surrounding components such as wheel bearings and suspension for wear during replacement
• Confirm ABS tone ring alignment to maintain sensor accuracy

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft VO-8084 is manufactured as a new component to meet or exceed OEM standards for fit and function. The inclusion of a neoprene boot and precise spline counts ensures durability and reliable performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support long-term driveline integrity.
