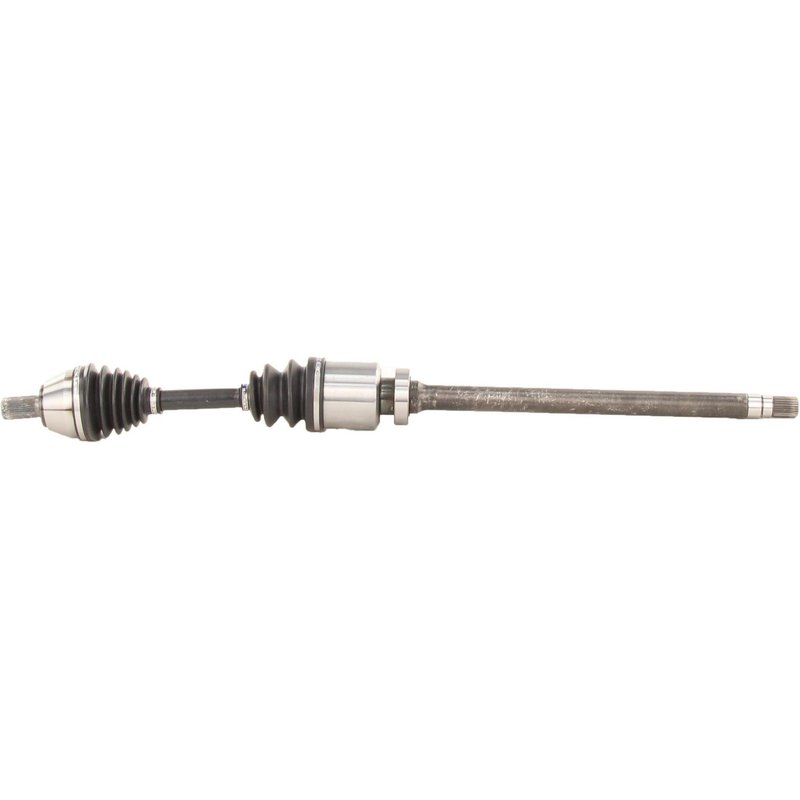

TrakMotive VO-8087 CV Axle Shaft - Front Right
| Brand | TrakMotive VO-8087 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 40 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.17 |
| Overall Compressed Length (mm) | 995 |
| Product line | AAR CV Axle Shaft |
| Fits | Volvo · 11 vehicles |
New CV axle shaft. Built as a fresh replacement for driveline service.
Neoprene boot material. Helps resist wear while protecting the joint assembly.
Spline connections. Provides secure engagement at both ends of the shaft.
Cross-references TrakMotive VO-8087 and VO10537 for the same application. See all 2.
TrakMotive VO-8087 CV Axle Shaft for Volvo
The TrakMotive VO-8087 is a new front right CV axle shaft for select Volvo applications, including 2007-2014 Volvo S80 and 2008-2010 Volvo V70 models. Built for direct driveline replacement, it uses a neoprene boot, spline-style shaft connections, and an Audi-style spline bolt outboard joint for the specified fitments.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: VO-8087
- Front right position
- New axle shaft construction
- Neoprene boot material
- Inboard joint type: male
- Inboard shaft connection style: spline
- Outboard joint type: Audi style spline bolt
- Outboard shaft connection style: spline
- 28 inboard splines and 40 outboard splines
- Overall compressed length: 39.17 in. (995 mm)
- ABS tone ring not included
- Axle nut not included
Product Details
TrakMotive VO-8087 is part of the AAR CV Axle Shaft line, a product line focused on replacement driveline components for specific vehicle applications. This axle is engineered for the front right side on Volvo S80 and Volvo V70 fitments listed below, with updated design notes for those applications. The construction details, spline counts, and compressed length are important for matching the correct axle to the vehicle’s hub and transmission interfaces. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Vehicle Fitment
- Fits 2007-2014 Volvo S80, front right. Updated Design; AAR CV Axle Shaft.
- Fits 2008-2010 Volvo V70, front right. Updated Design; AAR CV Axle Shaft.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration during acceleration caused by axle wear or imbalance
- Torn or deteriorated axle boot leading to grease loss
- Noise from a damaged front right driveline assembly
- Restoring proper power transfer on Volvo S80 and Volvo V70 models
Installation Notes
Verify spline counts, compressed length, and joint style before installation. This axle does not include an ABS tone ring or axle nut, so confirm whether the vehicle requires separate components. Match the front right application exactly for 2007-2014 Volvo S80 and 2008-2010 Volvo V70 vehicles.
Quality Assurance
TrakMotive states this axle is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The VO-8087 also carries a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Volvo | S80 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Volvo | S80 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Volvo | S80 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Volvo | S80 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Volvo | S80 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Volvo | V70 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Volvo | S80 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Volvo | V70 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Volvo | S80 | FWD | 3.2L | L6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Volvo | V70 | FWD | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Volvo | S80 | FWD | 3.2L | L6 | Front Right | Updated Design; AAR CV Axle Shaft |
