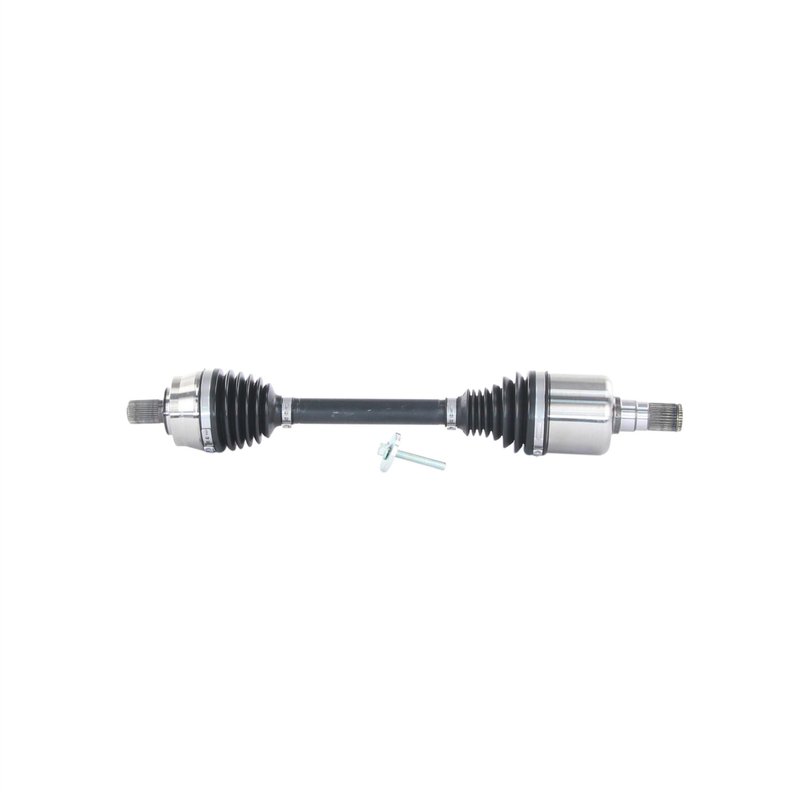

TrakMotive VO-86007 CV Axle Shaft - Front Left

Volvo XC40 Front Left CV Axle Shaft

Restore driveline performance with the TrakMotive AAR CV Axle Shaft VO-86007 for the front left position on select 2019-2022 Volvo XC40 models. This premium axle is built for OE AAR design applications and uses spline-style shaft connections for a direct-fit replacement.

Key Features

• Fits 2019-2022 Volvo XC40, front left
• TrakMotive AAR CV Axle Shaft, part number VO-86007
• Premium grade replacement for driveline service
• 31 inboard splines and 36 outboard splines
• Thermoplastic boots on both inboard and outboard joints
• Inboard joint type: male
• Outboard joint type: Audi style spline bolt
• Overall compressed length: 22.875 in. (582 mm)
• Overall extended length: 25 in. (635 mm)
• ABS tone ring not included; ABS ring tooth count: 0

Product Details

The TrakMotive VO-86007 is an AAR CV axle shaft engineered for the front left side of the Volvo XC40 from 2019 through 2022. It is built to match OE AAR design requirements and uses a spline connection at both ends, with a male inboard joint and an Audi style spline bolt outboard joint. The axle measures 22.875 inches compressed and 25 inches extended, helping support proper fitment in the specified application. TrakMotive VO-86007 is a direct replacement choice for Volvo XC40 front left CV axle service.

TrakMotive’s AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for vehicles that need accurate spline counts, joint styles, and length specifications. For shoppers searching for a 2019-2022 Volvo XC40 front left CV axle shaft or TrakMotive VO-86007, this part provides the key dimensions and connection details needed for a proper match.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Grease leakage from deteriorated joint boots
• Driveline noise caused by spline or joint wear
• Loss of smooth power transfer to the front left wheel

Installation Notes

Verify spline counts, axle length, and joint style before installation. This axle uses a 13 mm axle bolt hex size with an M10x1.5 thread and a 74 mm axle bolt length. The axle nut is not included. Confirm ABS requirements for the vehicle, since this axle does not include an ABS tone ring and is listed with 0 ABS ring teeth.

Quality Assurance

TrakMotive states that this AAR CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification for its quality management system.
