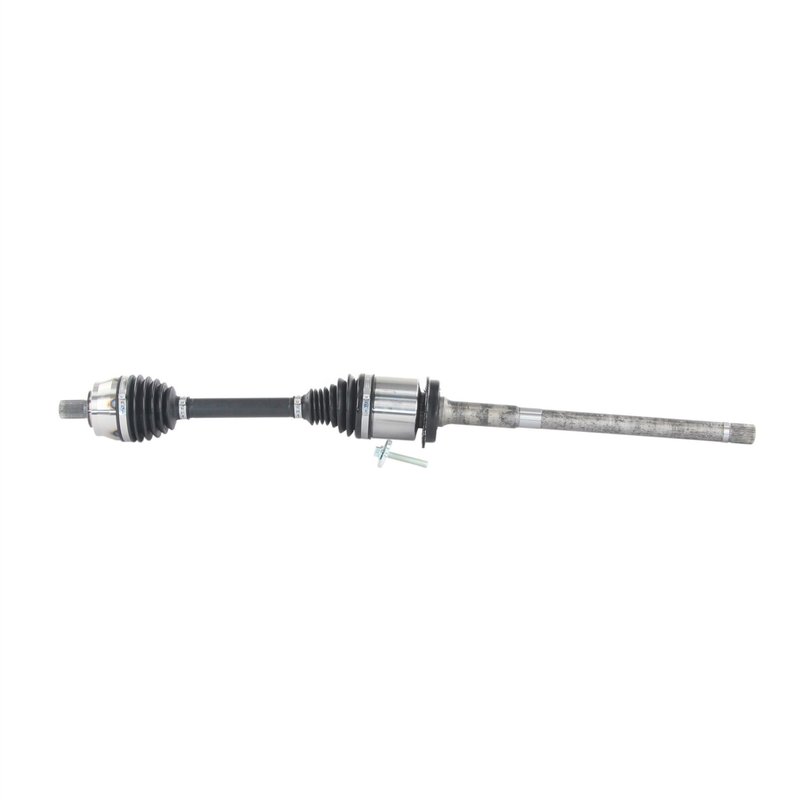

TrakMotive VO-86010 CV Axle Shaft - Front Right
| Brand | TrakMotive VO-86010 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 13 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.75 |
| Overall Compressed Length (mm) | 960 |
| Overall Extended Length (in) | 39.69 |
| Overall Extended Length (mm) | 1008 |
| Product line | AAR CV Axle Shaft |
| Fits | Volvo · 4 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium grade. Thermoplastic boots help protect the joints from wear.
Certified company. Built by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive VO-86010 for the same application. See all 1.
Volvo XC40 Front Right CV Axle Shaft
TrakMotive VO-86010 is a premium CV axle shaft for the front right position on select 2019-2022 Volvo XC40 models. Built for OE AAR design applications, it supports smooth power transfer in a direct-fit driveline replacement.
Key Features
- Fits 2019-2022 Volvo XC40, front right
- OE AAR design for the specified application
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint uses a long-male design with spline connection
- Outboard joint uses an Audi-style spline bolt design
- Thermoplastic boot material on both inboard and outboard joints
- 28 inboard splines and 36 outboard splines
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 960 mm (37.75 in); extended length: 1008 mm (39.69 in)
Detailed Description
TrakMotive VO-86010 is engineered as a front right CV axle shaft for the Volvo XC40, covering 2019 through 2022 model years. This AAR CV Axle Shaft line is built for applications that call for an OE AAR design, with spline-based shaft connections and thermoplastic boots selected for driveline service in the specified position. The axle uses a 28-spline inboard connection and a 36-spline outboard connection, along with an Audi-style spline bolt outboard joint configuration.
This part number, VO-86010, is a direct replacement choice for Volvo XC40 front right axle service where the original axle design matches the listed fitment. TrakMotive identifies this axle as a premium-grade component and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder under acceleration from axle wear
- Grease leakage caused by damaged axle boots
- Driveline noise from a failing front right axle assembly
- Loss of smooth power delivery to the front wheel
Installation Notes and Tips
Verify the vehicle is a 2019-2022 Volvo XC40 with front right fitment before installation. Confirm spline counts, axle length, and bolt specifications match the original part: M10x1.5 axle bolt thread, 13 mm hex size, and 75 mm bolt length. This axle does not include an axle nut, and it does not use an ABS tone ring.
Inspect related suspension and hub components for wear before installing the new axle. Always compare the removed axle to VO-86010 to confirm joint style, compressed length, and outboard connection details.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The brand also states that its manufacturing is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Volvo | XC40 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Volvo | XC40 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Volvo | XC40 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Volvo | XC40 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
