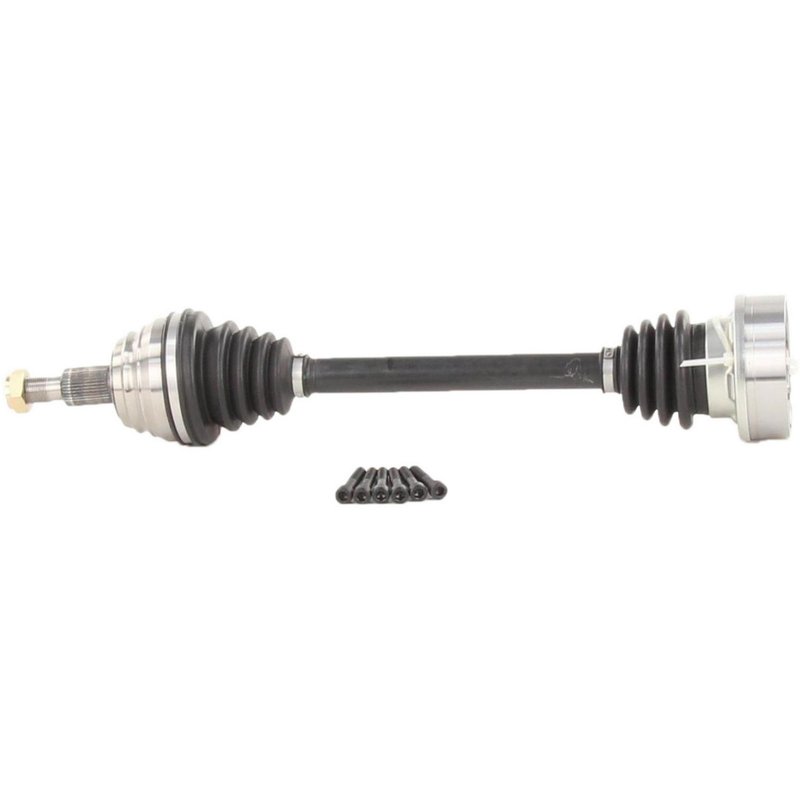

TrakMotive VW-8001 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft VW-8001

The TrakMotive CV Axle Shaft VW-8001 is designed for reliable driveline performance in select Audi and Volkswagen models. Engineered to meet OEM specifications, this new axle shaft ensures consistent power transfer and durability for vehicles like the Audi A3 and Volkswagen Jetta.

• Compatible with Audi A3, Volkswagen Beetle, Beetle Cabrio, Corrado, Golf, Golf City, Jetta, Jetta City, and Passat
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced joint protection
• Bolt-on inboard joint with 6 bolt holes for secure fitment
• Overall compressed length of 21.81 inches (554 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for European vehicles. This CV Axle Shaft VW-8001 is part of that line, offering a bolt-on inboard joint and conventional outboard joint connection styles. The design emphasizes compatibility and ease of installation, with included hardware such as a self-locking axle nut and Allen head inboard bolts to maintain secure assembly.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that provides resistance against wear and environmental damage. The axle nut included is a self-locking type with a hex head measuring 1 1/6 inches (30 mm) across flats and a height of 14 mm (5/9 inch). The axle nut thread size is M20*1.5, and the nut length is 34.6 mm (1 1/3 inches). The inboard joint uses a bolt-on connection style with six M8*1.25 threaded bolts, each 58 mm (2 2/7 inches) in length, secured by Allen heads sized 6 mm (1/4 inch). The outboard joint is conventional with 36 splines, ensuring proper engagement with the vehicle’s hub assembly. The overall compressed length of the shaft is 554 mm (21.81 inches), matching OEM dimensions for proper fitment.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts in Audi A3 and Volkswagen Golf models
• Resolves clicking or popping noises during turns caused by failing CV joints
• Eliminates vibration or shuddering under acceleration due to axle shaft imbalance
• Addresses grease leakage from torn or cracked CV boots
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

Installation requires removal of the old axle shaft and proper torqueing of the included self-locking axle nut to manufacturer specifications. The bolt-on inboard joint with six bolts ensures a secure connection; use an Allen wrench sized 6 mm for these fasteners. Verify the overall compressed length matches the vehicle’s requirements before final assembly. The neoprene boot should be inspected for proper seating to prevent premature wear. It is recommended to use thread locker on the inboard bolts to maintain joint security.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8001 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware for installation, such as the self-locking axle nut and inboard bolts. While specific warranty details are not provided, TrakMotive products typically undergo quality control inspections to ensure durability and fitment accuracy for Audi and Volkswagen vehicles.
