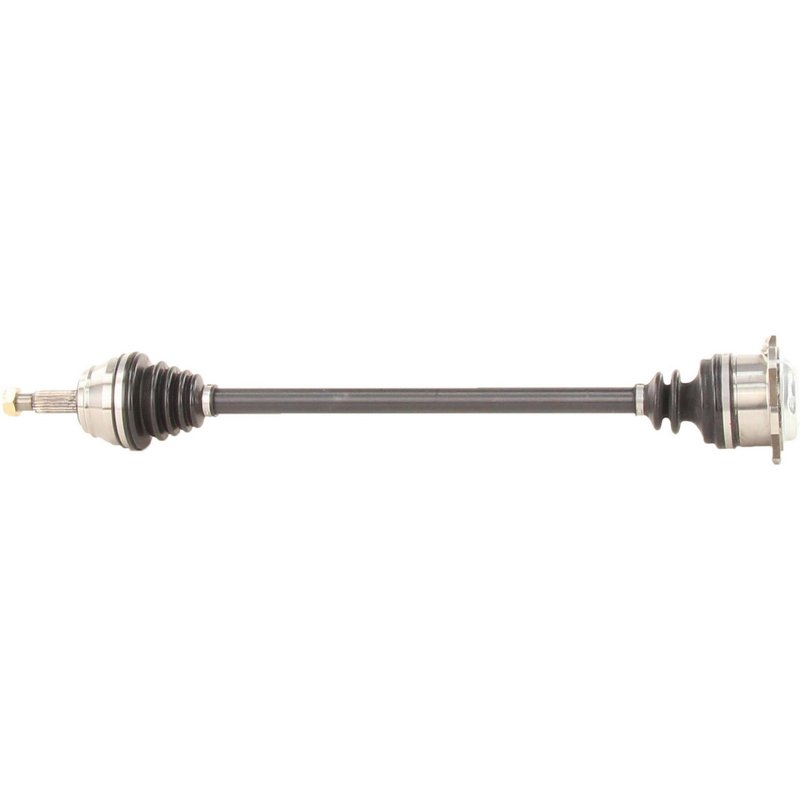

TrakMotive VW-8002 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8002 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.63 |
| Overall Compressed Length (mm) | 778 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 28 vehicles |
New CV axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Self-locking hex nut is ready for installation.
Cross-references Anchor 3042, Anchor 6038 and Cardone New 66-7100 for the same application. See all 31.
CV Axle Shaft for Volkswagen Front Right
TrakMotive VW-8002 is a new CV axle shaft for the front right position on select Volkswagen applications. It is built with a neoprene boot, a conventional outboard joint, and a flange-style inboard connection for direct driveline replacement on supported Cabrio, Golf, Jetta, and Passat models.
This TrakMotive CV Axle Shaft line focuses on OE-style fit and application-specific construction. Part number VW-8002 includes a self-lock axle nut, a 30 mm hex size, and a 22-spline outboard design for the listed Volkswagen front right applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8002
- New axle shaft assembly
- Front right position
- Neoprene boot material
- Flange inboard joint and flange shaft connection
- Conventional outboard joint and conventional shaft connection
- 22 outboard splines
- Axle nut included with self-lock design
- 30 mm axle nut hex size, M20 x 1.5 thread
- Overall compressed length: 30.63 in. (778 mm)
- No ABS tone ring included
Detailed Description
TrakMotive VW-8002 is a CV axle shaft for Volkswagen front right driveline service where the original axle has worn joints, damaged boots, or spline wear. It is listed for 1995-2002 Volkswagen Cabrio front right, 1999 Volkswagen Golf front right old body style, 1999 Volkswagen Jetta front right old body style, 1993-1998 Volkswagen Golf front right except GTi VR6, 1993-1998 Volkswagen Jetta front right except GTi VR6, and 1995-1997 Volkswagen Passat front right. The axle is built new, not remanufactured, and uses a neoprene boot for the specified applications.
Part number VW-8002 cross-references Cardone New 66-7100 and Cardone Reman 60-7100 for the same application.
What It Helps Fix
- Clicking or popping from a worn front right CV joint
- Vibration during acceleration from axle wear or imbalance
- Grease leakage from a damaged CV boot
- Clunking caused by excessive driveline play
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify the vehicle’s front right application, model year, and notes before installation. This axle uses a flange-style inboard connection and a conventional outboard connection, so matching the original configuration is important. Confirm axle nut thread size, hex size, and overall length against the removed part before assembly.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for the VW-8002 axle shaft.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2001 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2000 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1999 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1999 | Volkswagen | Golf | — | Automatic | 2.0L | L4 | Front Right | Old Body Style; CV Axle Shaft |
| 1999 | Volkswagen | Golf | — | Automatic | 1.9L | L4 | Front Right | Old Body Style; CV Axle Shaft |
| 1999 | Volkswagen | Jetta | — | Automatic | 2.0L | L4 | Front Right | Old Body Style; CV Axle Shaft |
| 1999 | Volkswagen | Jetta | — | Automatic | 1.9L | L4 | Front Right | Old Body Style; CV Axle Shaft |
| 1998 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1998 | Volkswagen | Golf | — | Automatic | 1.9L | L4 | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1998 | Volkswagen | Jetta | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1997 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1997 | Volkswagen | Golf | — | Automatic | 1.9L | L4 | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1997 | Volkswagen | Jetta | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1997 | Volkswagen | Passat | FWD | Automatic | 1.9L | L4 | Front Right | CV Axle Shaft |
| 1996 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1996 | Volkswagen | Golf | — | Automatic | 1.9L | L4 | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1996 | Volkswagen | Jetta | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1996 | Volkswagen | Passat | FWD | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1996 | Volkswagen | Passat | FWD | Automatic | 1.9L | L4 | Front Right | CV Axle Shaft |
| 1995 | Volkswagen | Cabrio | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1995 | Volkswagen | Golf | — | Automatic | 2.0L | L4 | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1995 | Volkswagen | Jetta | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1995 | Volkswagen | Passat | FWD | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1994 | Volkswagen | Golf | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1994 | Volkswagen | Jetta | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1993 | Volkswagen | Golf | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
| 1993 | Volkswagen | Jetta | — | Automatic | — | — | Front Right | Exc. GTi VR6; CV Axle Shaft |
