OE Quality
60-Day Returns

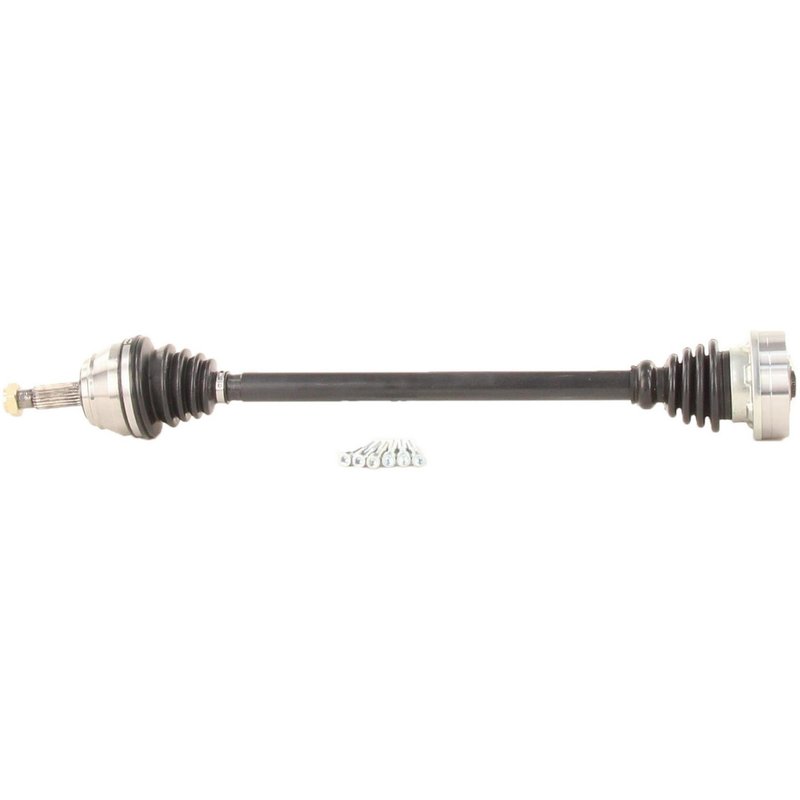

TrakMotive VW-8007 CV Axle Shaft - Front Right
CV Axle Shaft for Volkswagen Cabriolet
TrakMotive VW-8007 is a new CV axle shaft for the front right position on 1985-1993 Volkswagen Cabriolet models. It is built with a neoprene boot, a conventional outboard joint, and a bolt-on inboard connection for direct replacement service.
Key Features
- Fits 1985-1993 Volkswagen Cabriolet, front right
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint protection
- Conventional outboard joint and bolt-on inboard joint design
- Includes axle nut with self-locking M20 x 1.5 thread
- 22 outboard splines and 6 inboard joint bolt holes
- Overall compressed length: 29.37 in. (746 mm)
- TrakMotive part number VW-8007
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Volkswagen Cabriolet and matches the listed OE-style configuration for the application. The shaft uses a conventional outboard joint, a bolt-on inboard shaft connection, and a neoprene boot to support consistent operation in the driveline. TrakMotive VW-8007 also includes the axle nut specified for the assembly, with a 30 mm hex size and M20 x 1.5 thread.
TrakMotive’s CV Axle Shaft line is focused on replacement driveline components for passenger vehicles, with this application covering 1985-1993 Volkswagen Cabriolet front right service. If you are searching for a Volkswagen Cabriolet front right CV axle shaft or a TrakMotive VW-8007 replacement axle, this part matches the listed fitment and configuration.
This part cross-references Cardone New 66-7014 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from axle wear or imbalance
- Grease leakage from a damaged axle boot
- Clunking or looseness in the driveline during load changes
- Loss of smooth power transfer to the front right wheel
Installation Notes and Tips
- Verify front right fitment before installation on 1985-1993 Volkswagen Cabriolet models.
- Confirm spline count, axle length, and flange style against the removed shaft.
- Inspect the hub, seals, and mounting hardware surfaces for wear before assembly.
- Torque the axle nut and inboard fasteners to the vehicle manufacturer’s specifications.
- Check for proper suspension and steering movement after installation to confirm smooth operation.
Quality Assurance
TrakMotive lists this axle as a new replacement part and states that its products are manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also backs this CV axle shaft with a limited lifetime warranty.
| Brand | TrakMotive |
|---|---|
| Part Number | VW-8007 |
| Position | CV Axle Shaft, Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 2/9 |
| Inboard Bolt Length (mm) | 56.5 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.37 |
| Overall Compressed Length (mm) | 746 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1992 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1991 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1990 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1989 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1988 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1987 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1986 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
| 1985 | Volkswagen | Cabriolet | Front Right | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
