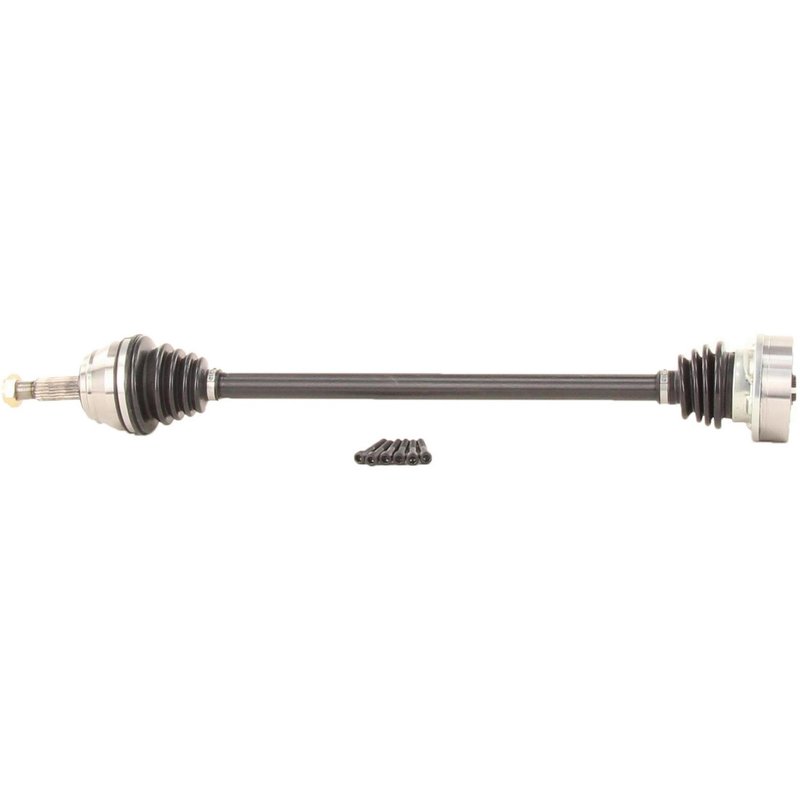

TrakMotive VW-8010 CV Axle Shaft - Front Right

Overview of the TrakMotive CV Axle Shaft VW-8010

The TrakMotive CV Axle Shaft VW-8010 is engineered for reliable driveline performance in select Volkswagen models. Designed specifically for the Volkswagen Corrado, Golf, and Jetta, this new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Volkswagen Corrado, Golf, and Jetta models
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Bolt-on inboard joint with 6 bolt holes for secure installation
• Overall compressed length of 30.12 inches (765 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This CV axle shaft line emphasizes precise fitment and reliable driveline connection, featuring bolt-on inboard joints and conventional outboard joints to maintain smooth power transfer and vehicle handling. The VW-8010 model is part of this line, offering a robust neoprene boot and a self-locking axle nut to ensure long-lasting performance in Volkswagen vehicles.

Technical Specifications and Features

This CV axle shaft includes a self-locking axle nut with a hex head type measuring 30 mm across flats and a height of 14 mm (5/9 inch). The axle nut thread size is M20x1.5, and the nut length is 34.6 mm (1 1/3 inch). The inboard joint is bolt-on style with six M8x1.25 bolts, each 58 mm (2 2/7 inch) in length, secured by 6 Allen head bolts sized 6 mm (1/4 inch). The outboard joint uses a conventional connection style with 22 splines on the outboard shaft. The boot is made from durable neoprene material, providing resistance to wear and environmental factors. The overall compressed length of the axle shaft is 765 mm (30.12 inches), ensuring proper fitment and alignment within the driveline assembly.

Applications and Problem Solving

This CV axle shaft is designed for use in the following Volkswagen models:

• Volkswagen Corrado
• Volkswagen Golf
• Volkswagen Jetta

It addresses common driveline issues such as:

• Worn or torn CV boots causing grease leakage
• Excessive axle shaft play or vibration
• Damaged or stripped axle splines
• Failed or loose axle nuts compromising wheel security
• Noise or clicking during turns due to joint wear

Installation Notes and Tips

Installation of the TrakMotive CV Axle Shaft VW-8010 requires proper torque specifications for the self-locking axle nut (M20x1.5 thread) and secure fastening of the six inboard joint bolts (M8x1.25). Use an Allen wrench for the inboard bolt heads and a 30 mm socket for the axle nut. Ensure the neoprene boot is properly seated to prevent contamination. Verify the overall compressed length matches the vehicle’s specifications to avoid driveline misalignment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8010 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or supplier information for exact warranty terms.
