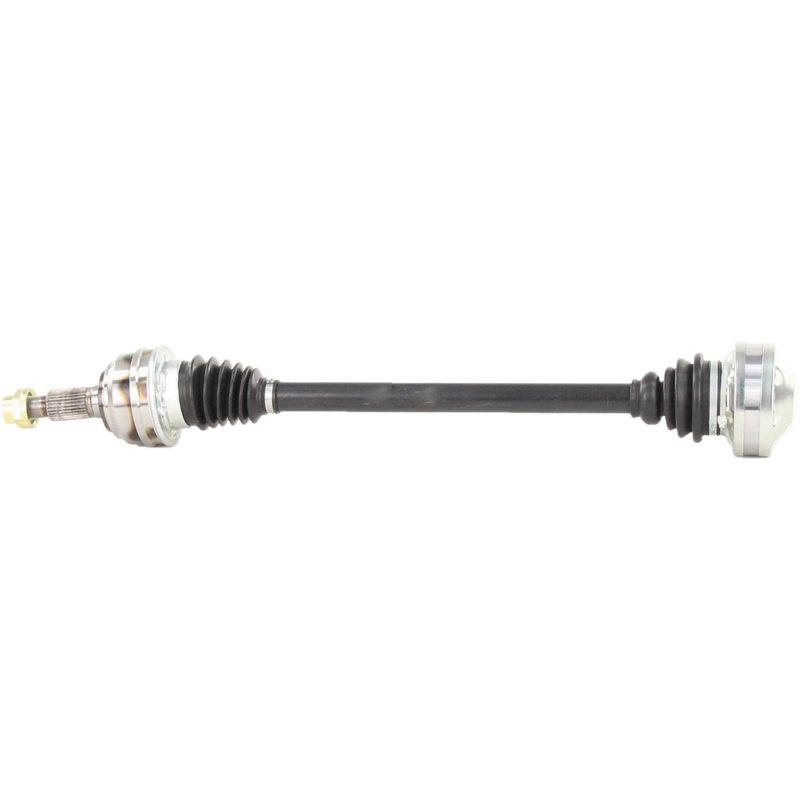

TrakMotive VW-8014 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-8014 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 2/9 |
| Inboard Bolt Length (mm) | 56.5 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.69 |
| Overall Compressed Length (mm) | 551 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 4 vehicles |
OE direct replacement. Bolt-on design for straightforward installation.
Neoprene boot material. Helps resist wear in demanding driveline use.
New unit. Built as a complete CV axle shaft assembly.
Cross-references Schaeffler MP0114, TrakMotive VW-8014 and 40-18863 for the same application. See all 21.
TrakMotive VW-8014 CV Axle Shaft
The TrakMotive VW-8014 CV axle shaft is a new front left driveline replacement for 1995-1997 Volkswagen Passat applications. Built for direct replacement service, it matches the original axle layout with a bolt-on inboard joint and conventional outboard connection.
Key Features
- Fits 1995-1997 Volkswagen Passat, front left
- New CV axle shaft for driveline and axle service
- Neoprene boot material for joint protection
- Bolt-on inboard joint with 6 bolt holes and 6 inboard shaft bolts
- Conventional outboard joint design
- 22 outboard splines
- Axle nut included with self-locking M20 x 1.5 thread
- Overall compressed length: 551 mm (21.69 in.)
- ABS tone ring not included
Product Details
TrakMotive CV Axle Shaft VW-8014 is built for the front left position on the Volkswagen Passat from 1995 through 1997. It uses a bolt-on inboard shaft connection, a conventional outboard shaft connection, and a 22-spline outboard design to match the specified driveline configuration. The neoprene boot helps protect the CV joints, while the included self-locking axle nut supports proper axle retention during service. TrakMotive markets this CV axle shaft line as a new replacement option backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes.
This part cross-references Schaeffler MP0114 for the same application.
Common Repair Uses
- Restores driveline function after a worn or noisy front axle
- Addresses clicking or popping from a damaged CV joint
- Replaces a torn boot that has allowed grease loss or contamination
- Corrects vibration or shudder related to axle wear
- Replaces a bent or damaged front left axle assembly
Installation Notes
Verify the front left position, spline count, axle nut thread size, and overall compressed length before installation. Confirm whether the vehicle uses ABS, since this axle does not include an ABS tone ring. Use the specified axle nut and follow factory torque procedures during installation on the Volkswagen Passat.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing, supporting consistent production standards for the VW-8014 axle shaft.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1997 | Volkswagen | Passat | — | Manual | 1.9L | L4 | — | Front Left | CV Axle Shaft |
| 1996 | Volkswagen | Passat | Sedan | Manual | 2.0L | L4 | — | Front Left | CV Axle Shaft |
| 1996 | Volkswagen | Passat | Sedan | Manual | 1.9L | L4 | DIESEL | Front Left | CV Axle Shaft |
| 1995 | Volkswagen | Passat | — | Manual | 2.0L | L4 | — | Front Left | CV Axle Shaft |
