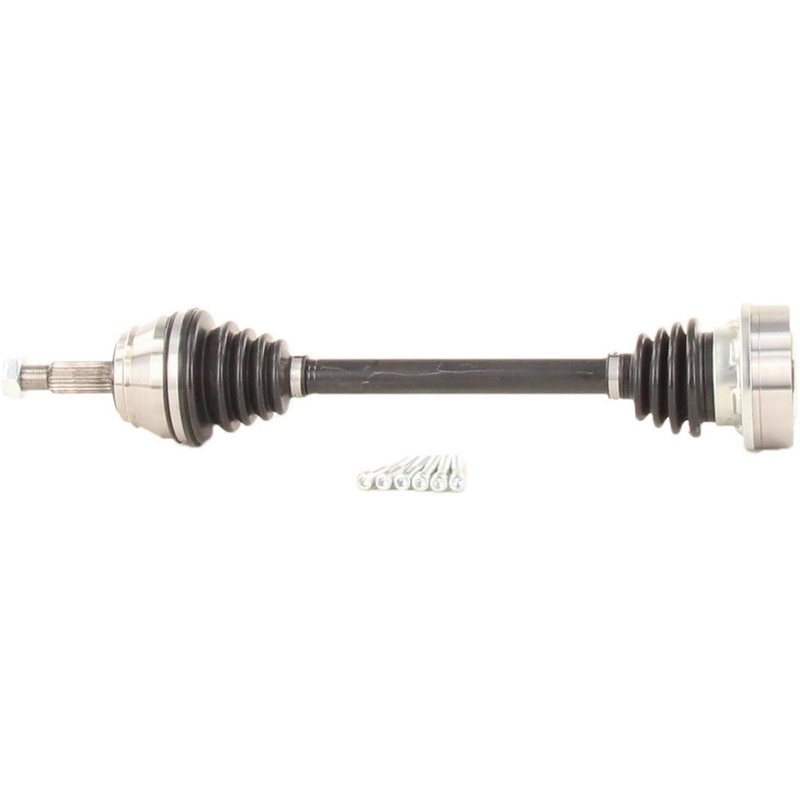

TrakMotive VW-8016 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft VW-8016

The TrakMotive CV Axle Shaft VW-8016 is designed for reliable driveline performance in Volkswagen vehicles. Engineered to meet the demands of models like the Volkswagen Cabrio, Golf, Jetta, and Passat, this new axle shaft ensures consistent power transfer and durability.

• Compatible with Volkswagen Cabrio, Golf, Jetta, and Passat
• Part Number: VW-8016
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Bolt-on inboard joint with 6 bolt holes
• Overall compressed length of 22.01 inches (559 mm)
• Outboard joint type: Conventional with 22 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed for direct replacement applications. This line emphasizes precise fitment and robust construction, featuring bolt-on inboard joints and conventional outboard connections to maintain factory specifications. The VW-8016 model exemplifies this approach, providing a reliable driveline component for select Volkswagen vehicles.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a self-locking type with a hex head measuring 1 1/6 inches (30 mm) across flats, a height of 14 mm (5/9 inch), and a length of 34.6 mm (1 1/3 inch). The axle nut thread size is M20 x 1.5, ensuring secure fastening. The inboard joint uses a bolt-on connection style with six M8 x 1.25 bolts, each 58 mm (2 2/7 inches) long, tightened with a 6 mm (1/4 inch) Allen head bolt. The outboard joint is conventional with 22 splines, designed for compatibility with the specified Volkswagen models. The overall compressed length of the shaft is 559 mm (22.01 inches), matching OEM dimensions for proper fit and function.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Volkswagen Cabrio, Golf, Jetta, and Passat
• Addresses issues such as axle vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded boots
• Eliminates axle shaft play or looseness affecting driveline stability
• Restores proper torque transfer from transmission to wheels

Installation Notes and Tips

Installation requires removal of the old axle shaft and proper torqueing of the included self-locking axle nut to manufacturer specifications. The bolt-on inboard joint uses six Allen head bolts that should be tightened evenly to ensure secure fitment. Verify the axle length and spline count match the vehicle requirements before installation. Use appropriate tools to avoid damage to the neoprene boot and axle components during assembly.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8016 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot for extended service life. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in Volkswagen Cabrio, Golf, Jetta, and Passat models.
