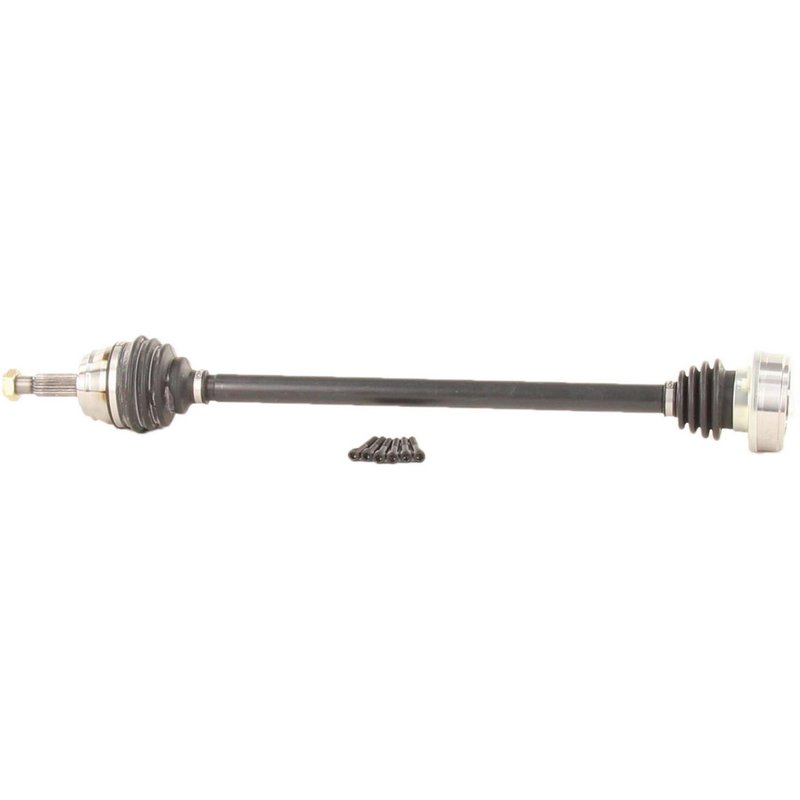

TrakMotive VW-8019 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VW-8019

The TrakMotive CV Axle Shaft VW-8019 is designed specifically for Volkswagen Golf and Jetta models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Compatible with Volkswagen Golf and Jetta
• Part number VW-8019 for exact replacement
• Includes self-locking axle nut with hex head
• Neoprene boot material for enhanced durability
• Bolt-on inboard joint with 6 bolt holes
• Conventional outboard joint with 22 splines
• Overall compressed length of 30.37 inches (771.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, direct-fit CV components engineered for driveline reliability. This line emphasizes quality materials such as neoprene boots and precision-machined joints to ensure consistent performance and longevity. The VW-8019 model exemplifies this approach with its bolt-on inboard joint and conventional outboard joint design, tailored for Volkswagen vehicles.

Technical Specifications and Features

The VW-8019 CV axle shaft features a neoprene boot that resists wear and environmental damage. The axle nut included is a self-locking type with a hex head measuring 1 1/6 inches (30 mm) across flats, a height of 14 mm (5/9 inch), and a thread size of M20x1.5. The axle nut length is 34.6 mm (1 1/3 inches). The inboard joint uses a bolt-on connection style with six M8x1.25 bolts, each 58 mm (2 2/7 inches) long, secured by 6 Allen head bolts sized 6 mm (1/4 inch). The outboard joint is conventional with 22 splines, ensuring a secure fit to the wheel hub. The overall compressed length of the axle shaft is 771.5 mm (30.37 inches), matching factory specifications for proper driveline geometry.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Volkswagen Golf and Jetta
• Addresses issues such as torn or leaking CV boots
• Resolves axle shaft vibration or clicking noises during turns
• Corrects axle shaft play or looseness affecting driveline stability
• Restores proper torque transfer from transmission to wheels

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removal. Use the included self-locking axle nut and torque to manufacturer specifications. Verify the bolt-on inboard joint bolts are tightened evenly to avoid joint misalignment. Inspect the mating surfaces for cleanliness before installation. The neoprene boot should be checked for proper seating to prevent premature wear.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft VW-8019 is a new, not remanufactured, component built to meet OEM standards. The part includes a self-locking axle nut and is manufactured with durable materials such as neoprene boots and precision-machined joints. Warranty coverage details should be confirmed with the distributor or installer, as they may vary.
