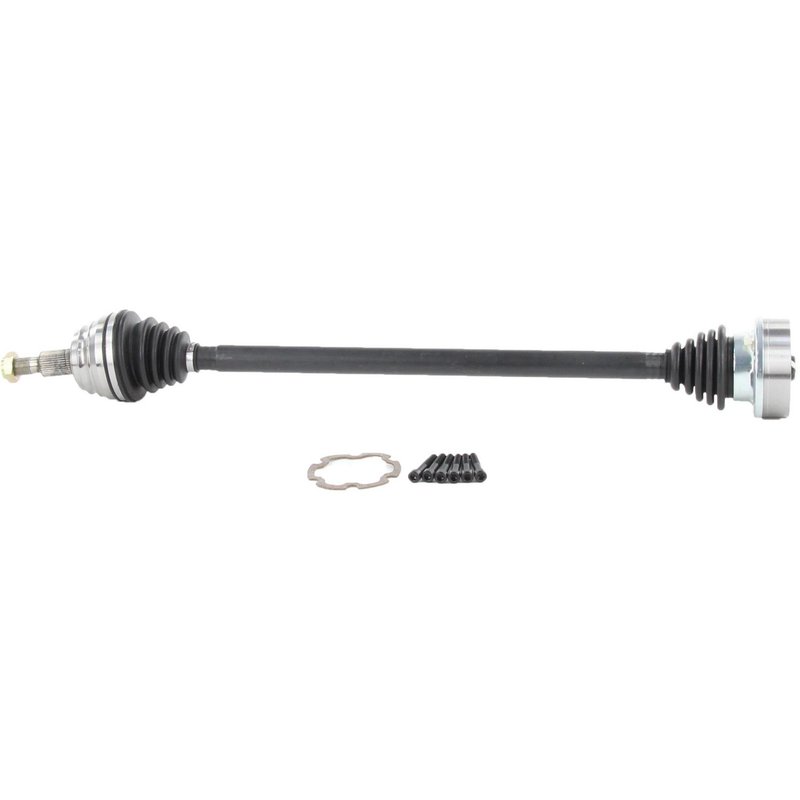

TrakMotive VW-8032 CV Axle Shaft - Front Right

Overview of the TrakMotive CV Axle Shaft VW-8032

The TrakMotive CV Axle Shaft VW-8032 is designed specifically for Volkswagen models including Beetle, Clasico, Golf, Golf City, Jetta, and Jetta City. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Compatible with Volkswagen Beetle, Clasico, Golf, Golf City, Jetta, and Jetta City
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability and protection
• Bolt-on inboard joint with 6 bolt holes for secure installation
• Overall compressed length of 32.48 inches (825 mm)
• Outboard joint features conventional connection style with 36 splines

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is engineered to meet the specific requirements of Volkswagen vehicles. The axle nut included is a self-locking type with a hex head measuring 1 1/6 inches (30 mm) across flats and a height of 14 mm (5/9 inch). The axle nut thread size is M20 x 1.5, and the nut length is 34.6 mm (1 1/3 inches), ensuring a secure fit. The inboard joint uses a bolt-on connection style with six M8 x 1.25 threaded bolts, each 58 mm (2 2/7 inches) long, tightened with a 6 mm (1/4 inch) Allen head bolt. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The outboard joint is conventional with 36 splines, providing smooth power transfer to the wheels. The overall compressed length of the axle shaft is 825 mm (32.48 inches), matching factory specifications for proper fitment and function.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on compatible Volkswagen models
• Resolves clicking or popping noises during turns caused by failing CV joints
• Eliminates vibration or shuddering under acceleration due to axle shaft wear
• Prevents grease leaks and contamination with durable neoprene boot
• Restores proper driveline alignment and torque transfer

Installation Notes and Tips

Installation of the TrakMotive VW-8032 CV Axle Shaft requires removal of the old axle and proper torqueing of the included self-locking axle nut to manufacturer specifications. Use a 30 mm hex socket for the axle nut and a 6 mm Allen wrench for the inboard joint bolts. Ensure the neoprene boot is properly seated to prevent contamination. Verify the 6-bolt inboard joint is securely fastened and the 36-spline outboard joint is fully engaged. It is recommended to inspect related suspension and driveline components during installation for wear or damage.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8032 is a new, not remanufactured, component designed to meet OEM standards for fit and function. Manufactured with quality materials including a neoprene boot and self-locking hardware, this axle shaft supports reliable vehicle operation. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary.
