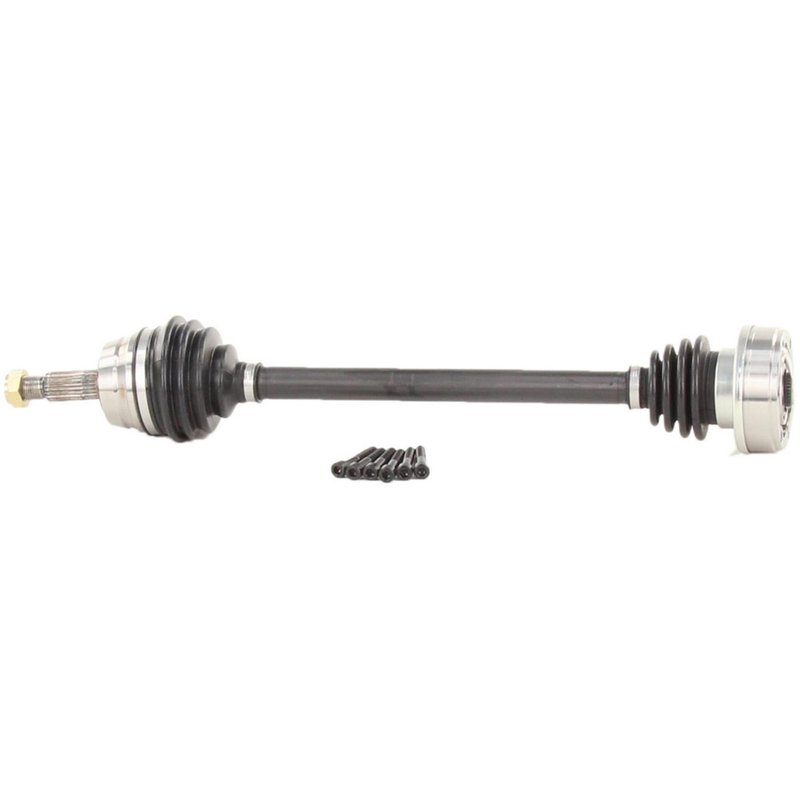

TrakMotive VW-8035 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive VW-8035 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 2/7 |
| Inboard Bolt Length (mm) | 58 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.9 |
| Overall Compressed Length (mm) | 607 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen and Audi · 14 vehicles |
New CV axle shaft. Bolt-on design for straightforward replacement.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Self-lock axle nut included. Hex head hardware is ready for installation.
Cross-references Anchor 2973, AP Exhaust 7545 and Cardone New 66-7011 for the same application. See all 18.
CV Axle Shaft for Volkswagen Fox
TrakMotive VW-8035 is a new CV axle shaft for front axle service on the 1987-1993 Volkswagen Fox. It is built for front left and front right applications and includes the axle nut specified for the assembly.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8035
- Fits 1987-1993 Volkswagen Fox, front right
- Fits 1987-1993 Volkswagen Fox, front left
- New axle assembly with conventional outboard joint type
- Bolt-on inboard joint and bolt-on inboard shaft connection style
- Neoprene boot material
- 22 outboard splines
- Overall compressed length: 23.9 in. (607 mm)
- Axle nut included; M20 x 1.5 thread, 30 mm hex, self-locking type
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is a direct driveline replacement for Volkswagen Fox front axle service. The VW-8035 uses a conventional outboard joint and a bolt-on inboard connection, with six inboard shaft bolts and six inboard joint bolt holes for the specified application. The neoprene boot helps protect the joint area, while the included axle nut matches the listed thread and hex size requirements. This part cross-references Cardone New 66-7011 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive driveline play from worn axle components
- Front axle noise on a 1987-1993 Volkswagen Fox
Installation Notes and Tips
Verify front left or front right application before installation on the Volkswagen Fox. Confirm spline count, axle length, and axle nut thread size against the original part. Inspect the hub, seals, and mounting hardware condition before assembly, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive lists this axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The VW-8035 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1993 | Volkswagen | Fox | Front Left | CV Axle Shaft |
| 1992 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1992 | Volkswagen | Fox | Front Left | CV Axle Shaft |
| 1991 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1991 | Volkswagen | Fox | Front Left | CV Axle Shaft |
| 1990 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1990 | Volkswagen | Fox | Front Left | CV Axle Shaft |
| 1989 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1989 | Volkswagen | Fox | Front Left | CV Axle Shaft |
| 1988 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1988 | Volkswagen | Fox | Front Left | CV Axle Shaft |
| 1987 | Volkswagen | Fox | Front Right | CV Axle Shaft |
| 1987 | Volkswagen | Fox | Front Left | CV Axle Shaft |
