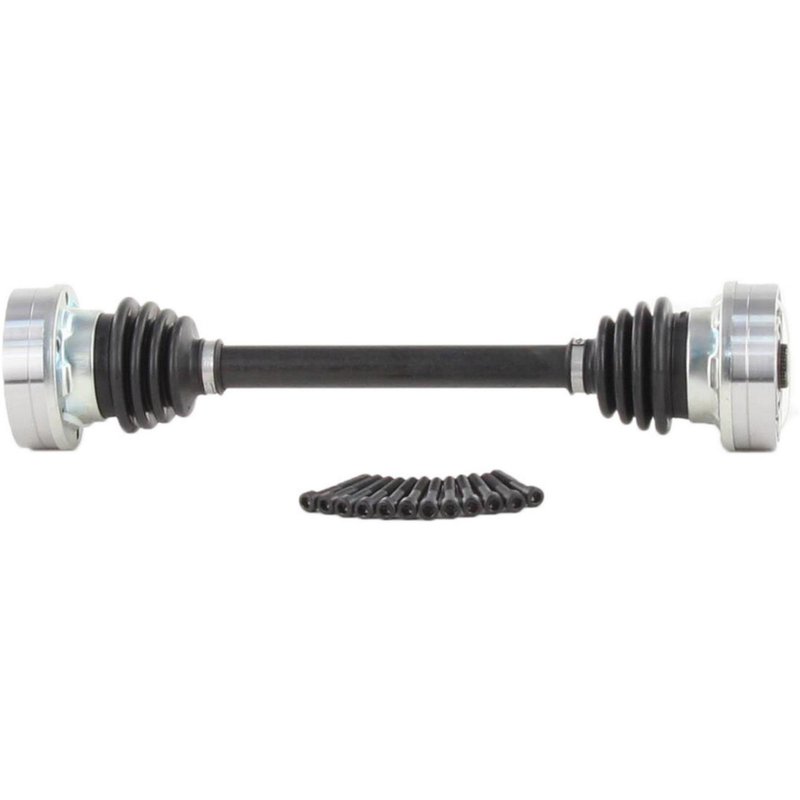

TrakMotive VW-8045 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive VW-8045 CV Axle Shaft

The TrakMotive VW-8045 CV Axle Shaft is designed for reliable driveline performance in select Volkswagen and compatible vehicle models. Engineered with durable neoprene boots and bolt-on joint connections, this new CV axle shaft ensures precise fitment and long-lasting operation.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: VW-8045
• Boot Material: Neoprene for enhanced durability
• Inboard and Outboard Bolt Head Type: Allen
• Inboard and Outboard Bolt Size: 1/4 inch (6 mm)
• Inboard and Outboard Bolt Length: 2 2/7 inches (58 mm)
• Number of Bolt Holes: 6 on both inboard and outboard joints
• Overall Compressed Length: 18.9 inches (480 mm)
• New, not remanufactured

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components tailored for driveline and axle applications. This line emphasizes bolt-on joint connections for secure installation and maintenance ease. The VW-8045 model exemplifies these characteristics with its precise bolt specifications and neoprene boot construction, suitable for vehicles requiring robust CV axle replacements.

Technical Description and Specifications

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors, extending the service life of the joint. Both the inboard and outboard joints utilize bolt-on connection styles with six bolt holes each, secured by M8*1.25 thread size bolts with Allen head types. The bolts measure 1/4 inch (6 mm) in head size and 2 2/7 inches (58 mm) in length, ensuring a tight and reliable fit. The overall compressed length of 18.9 inches (480 mm) is designed to match specific Volkswagen and compatible vehicle driveline requirements. This part does not include an ABS tone ring or axle nut, so those components must be sourced separately if needed.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts in Volkswagen models
• Addressing axle shaft vibration or clicking noises during turns
• Resolving torn or leaking CV boots causing grease loss
• Fixing driveline issues related to loose or broken inboard/outboard joint bolts
• Restoring proper axle length and joint integrity for safe vehicle operation

Installation Notes and Tips

Installation requires proper torque specifications for the M8*1.25 Allen head bolts on both inboard and outboard joints. Ensure the neoprene boot is correctly seated to prevent contamination and premature wear. Since the axle nut and ABS tone ring are not included, verify compatibility with existing components or acquire replacements as necessary. This CV axle shaft is designed for bolt-on installation, facilitating straightforward replacement on compatible Volkswagen and similar models.

Quality Assurance and Warranty

The TrakMotive VW-8045 CV Axle Shaft is a new component manufactured to meet OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in driveline applications.
