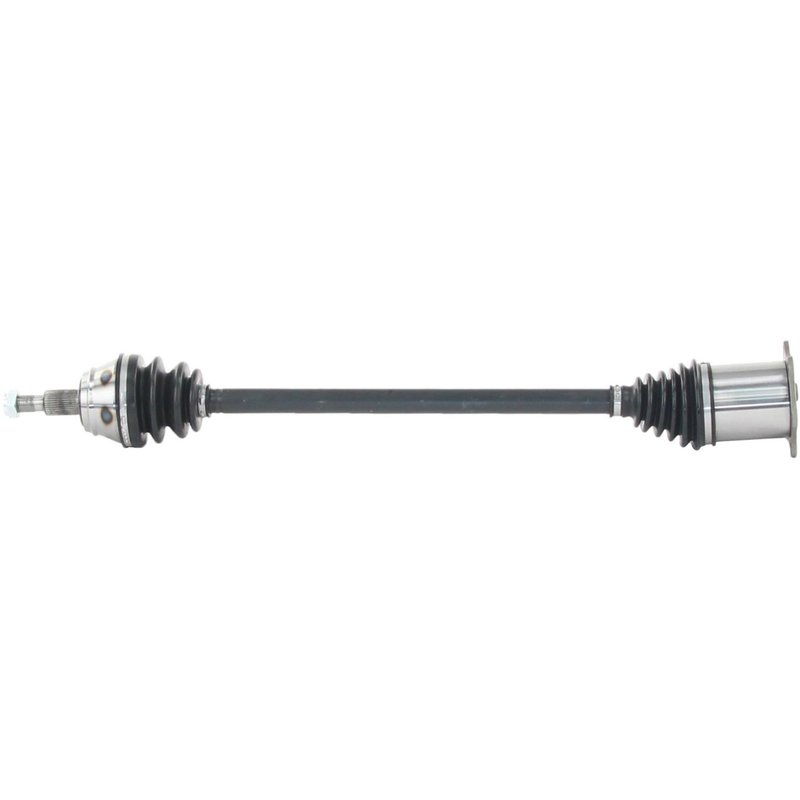

TrakMotive VW-8053 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8053 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.01 |
| Overall Compressed Length (mm) | 813 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 22 vehicles |
New replacement part. Built as a CV axle shaft for straightforward service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Saves time by supplying the matching self-lock nut.
Cross-references Cardone New 66-7315, Cardone Reman 60-7315 and TrakMotive VW-8053 for the same application. See all 29.
CV Axle Shaft for Volkswagen Front Right Applications
TrakMotive VW-8053 is a new CV axle shaft built for front right service on select Volkswagen Golf and Jetta models. It is specified with a 32.01 in. compressed length, a 36-spline outboard end, and a flange-style inboard connection for direct driveline replacement.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8053
- New axle shaft with conventional outboard joint type
- Flange inboard joint and flange shaft connection style
- Neoprene boot material for joint protection
- Includes axle nut with M20 x 1.5 thread, 30 mm hex, and self-lock design
- No ABS tone ring included
- Overall compressed length: 32.01 in. (813 mm)
- Outboard spline count: 36
Product Details
This TrakMotive CV axle shaft is engineered for front right driveline replacement on 2002-2006 Volkswagen Golf and 2002-2005 Volkswagen Jetta applications, including 2005 Jetta models with VIN J or VIN M at the 8th digit. The VW-8053 part number is also a useful reference when cross-checking OE and aftermarket listings for the same application. This part cross-references Cardone New 66-7315 and Cardone Reman 60-7315 for the same application.
TrakMotive’s CV Axle Shaft line is positioned as a direct replacement driveline component for passenger vehicles that need accurate fitment, joint geometry, and consistent assembly specifications. The axle is built new, uses a conventional outboard joint, and is configured with a flange-style inboard connection to match the listed Volkswagen front right applications.
Common Problems This Part Can Address
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play in the driveline from worn axle components
- Noise or binding from a failing front right CV axle assembly
Installation Notes and Tips
- Verify vehicle year, model, and VIN details before ordering, especially for 2005 Jetta applications.
- Confirm front right position and flange-style inboard connection before installation.
- Inspect axle seals, hub splines, and mounting surfaces for wear or damage during replacement.
- Use the included axle nut with the correct M20 x 1.5 thread and 30 mm hex specification.
- Check suspension and steering components for related wear that could affect axle life.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The VW-8053 is built as a new replacement part for the listed Volkswagen Golf and Jetta front right applications.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2006 | Volkswagen | Golf | — | — | Automatic | 1.9L | L4 | — | Front Right | CV Axle Shaft |
| 2006 | Volkswagen | Golf | — | — | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Golf | — | — | Automatic | 1.9L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Golf | — | — | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Jetta | GLS | Sedan | Automatic | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Jetta | — | Wagon | Automatic | 1.9L | L4 | — | Front Right | VIN J (8th digit); CV Axle Shaft |
| 2005 | Volkswagen | Jetta | — | Wagon | Automatic | 1.9L | L4 | — | Front Right | VIN M (8th digit); CV Axle Shaft |
| 2005 | Volkswagen | Jetta | GLS | Wagon | Automatic | 1.8L | L4 | — | Front Right | VIN J (8th Digit); CV Axle Shaft |
| 2005 | Volkswagen | Jetta | GLS | Wagon | Automatic | 1.8L | L4 | — | Front Right | VIN M (8th digit); CV Axle Shaft |
| 2005 | Volkswagen | Jetta | GLI | Sedan | Automatic | 1.8L | L4 | — | Front Right | VIN J (8th digit); CV Axle Shaft |
| 2004 | Volkswagen | Golf | — | — | Automatic | 1.9L | L4 | — | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | Golf | — | — | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | Jetta | — | — | Automatic | 2.8L | V6 | — | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | Jetta | — | — | Automatic | 1.9L | L4 | — | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | Jetta | — | Sedan | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2003 | Volkswagen | Golf | — | — | Automatic | 1.9L | L4 | — | Front Right | CV Axle Shaft |
| 2003 | Volkswagen | Golf | — | — | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2003 | Volkswagen | Jetta | — | — | Automatic | 2.8L | V6 | — | Front Right | CV Axle Shaft |
| 2003 | Volkswagen | Jetta | — | Sedan | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2002 | Volkswagen | Golf | — | — | Automatic | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2002 | Volkswagen | Jetta | — | — | Automatic | 2.8L | V6 | — | Front Right | CV Axle Shaft |
| 2002 | Volkswagen | Jetta | — | — | Automatic | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
