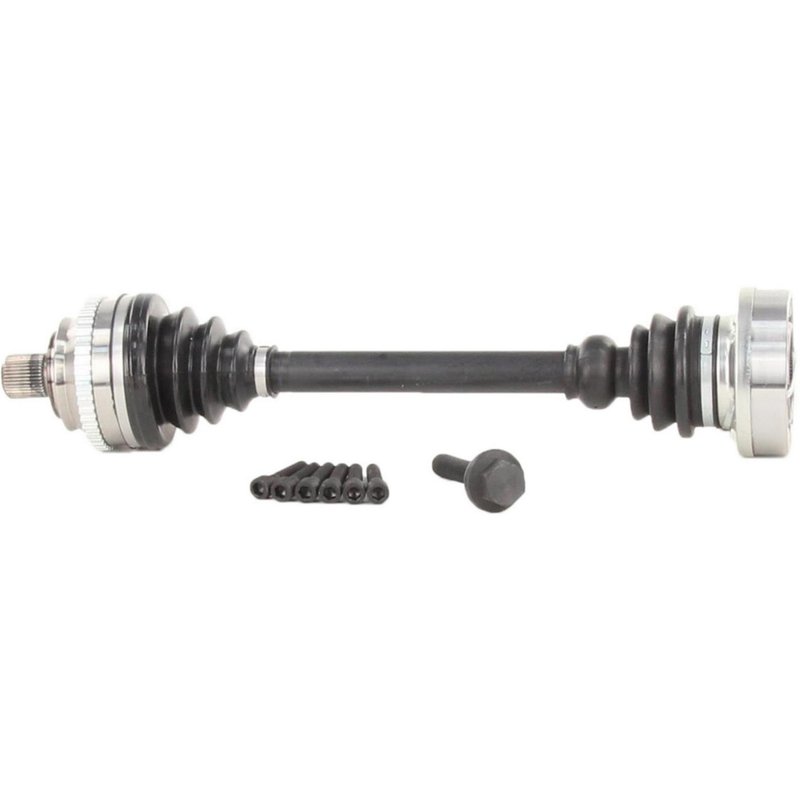

TrakMotive VW-8054 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft VW-8054 for Volkswagen EuroVan

The TrakMotive CV Axle Shaft VW-8054 is engineered specifically for Volkswagen EuroVan models, providing reliable driveline performance. This new CV axle shaft is designed to meet precise OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Volkswagen EuroVan
• Part number VW-8054 for exact identification
• Includes a neoprene boot for durability and protection
• Features a 48-tooth ABS ring with a toothed design
• Equipped with a bolt-on inboard joint and Audi style spline bolt outboard joint
• Axle bolt specifications: 27mm hex size, 97mm length, M16*1.5 thread size
• Inboard bolt uses an Allen head, 8mm size, 55mm length, M10*1.5 thread
• Overall compressed length of 525.5mm (20.69 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed for driveline applications. This line emphasizes precise fitment and durability, featuring bolt-on inboard joints and specialized outboard connections such as the Audi style spline bolt used in this VW-8054 axle shaft. The inclusion of a neoprene boot and ABS tone ring ensures compatibility with vehicle safety systems and long-term reliability.

Technical Description and Specifications

This CV axle shaft is a new, not remanufactured, component designed for the Volkswagen EuroVan. It includes a 48-tooth ABS ring with a toothed design and an ABS tone ring for accurate wheel speed sensor readings. The axle bolt has a 27mm hex size and measures 97mm in length with an M16*1.5 thread size, while the inboard bolt features an Allen head type, 8mm size, 55mm length, and M10*1.5 thread size. The inboard joint is bolt-on style with six bolt holes, and the outboard joint uses an Audi style spline bolt with 38 splines and one bolt hole. The neoprene boot material offers resistance to wear and environmental factors. The overall compressed length of the axle shaft is 525.5mm (20.69 inches), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Volkswagen EuroVan
• Restoring proper ABS sensor function with included ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing boot damage or grease leakage to prevent joint failure
• Ensuring secure axle connection with correct bolt sizes and thread specifications

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft VW-8054, verify compatibility with your Volkswagen EuroVan model year and drivetrain configuration. Use the specified axle bolt hex size (27mm) and thread size (M16*1.5) to ensure proper torque settings. The inboard joint requires six M10*1.5 Allen head bolts, so an Allen wrench set is necessary. Inspect the neoprene boot for any damage during installation and ensure the ABS tone ring is properly aligned for accurate sensor readings. Follow manufacturer torque specifications to avoid over-tightening or under-tightening fasteners.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft VW-8054 is manufactured as a new component to meet or exceed OEM standards. It undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
