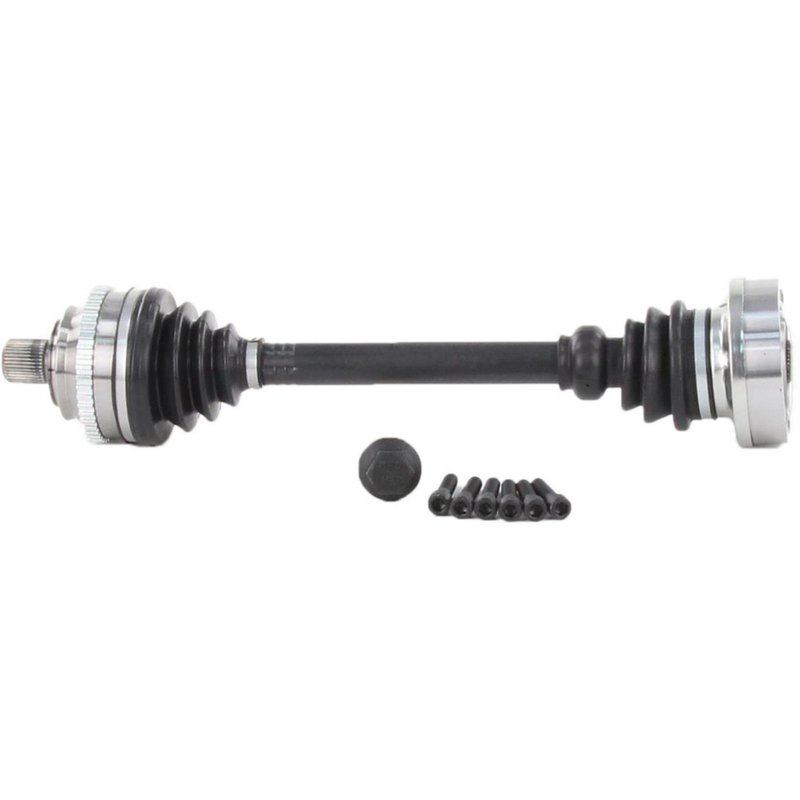

TrakMotive VW-8055 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-8055 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 20.43 |
| Overall Compressed Length (mm) | 519 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 5 vehicles |
Bolt-on design. Simplifies installation with direct shaft connections.
Neoprene boot material. Helps resist wear and keep the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references AMS Automotive 6027, Nissens 607103 and TrakMotive VW-8055 for the same application. See all 22.
TrakMotive VW-8055 CV Axle Shaft
TrakMotive VW-8055 is a new CV axle shaft for the front left position on select Volkswagen EuroVan models. It is built for 1992-1996 Volkswagen EuroVan applications, including automatic and ABS-equipped vehicles where specified, and uses an Audi-style spline bolt outboard connection for proper driveline engagement.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8055
- Front left axle for select Volkswagen EuroVan applications
- Overall compressed length: 519 mm (20.43 in.)
- Outboard shaft connection: Audi-style spline bolt
- Outboard splines: 38
- Inboard joint type: bolt-on
- Inboard shaft connection style: bolt-on
- ABS tone ring included with 48-tooth toothed ring
- Neoprene boot material
- New, not remanufactured
- Axle bolt thread size: M16 x 1.5
Product Details
This TrakMotive CV axle shaft is engineered for direct replacement in Volkswagen EuroVan driveline service. The VW-8055 uses a bolt-on inboard joint, 6 inboard joint bolt holes, and a 38-spline outboard shaft connection to match the specified front left EuroVan fitment. TrakMotive identifies this axle as a new part and notes that ABS axles fit non-ABS applications unless otherwise noted. The brand also states ISO 9001:1007 and TS 16949:2009 certification, supporting consistent manufacturing control for this Volkswagen EuroVan CV axle shaft.
This part cross-references AMS Automotive 6027 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping noises during turns from a worn outer CV joint
- Vibration or shudder from a damaged or imbalanced axle assembly
- Grease leakage caused by a torn or deteriorated boot
- Driveline play from worn inboard or outboard CV components
- ABS warning concerns related to a damaged tone ring or sensor trigger surface
Installation Notes
Verify front left fitment by year, transmission, and ABS configuration before installation. This axle uses a 27 mm axle bolt hex size and M16 x 1.5 axle bolt thread size; the axle nut is not included. Confirm the inboard and outboard connection styles match the vehicle before assembly, and inspect related seals, hardware, and mounting surfaces for wear.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification for its production processes.
Fitment
- Fits 1992-1996 Volkswagen EuroVan, front left.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1996 | Volkswagen | EuroVan | — | Front Left | w/ ABS; Automatic; CV Axle Shaft |
| 1995 | Volkswagen | EuroVan | Automatic | Front Left | CV Axle Shaft |
| 1994 | Volkswagen | EuroVan | — | Front Left | w/ ABS; Automatic; CV Axle Shaft |
| 1993 | Volkswagen | EuroVan | Automatic | Front Left | CV Axle Shaft |
| 1992 | Volkswagen | EuroVan | — | Front Left | w/ ABS; Automatic; CV Axle Shaft |
