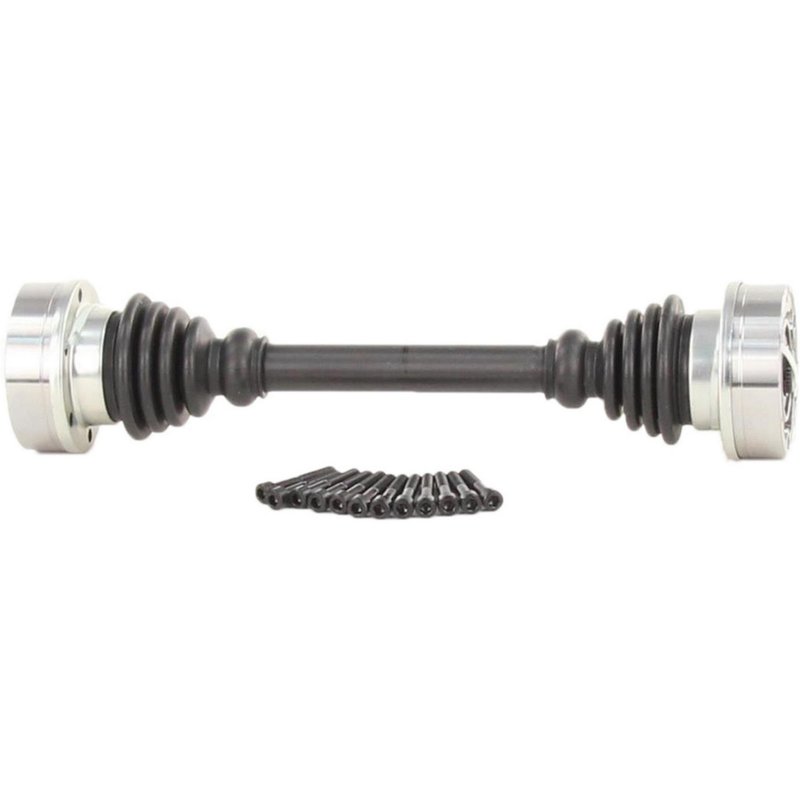

TrakMotive VW-8064 CV Axle Shaft - Rear Left

TrakMotive VW-8064 CV Axle Shaft

The TrakMotive VW-8064 is a new CV axle shaft built for driveline service where a direct-fit replacement is needed. It features bolt-on inboard and outboard joint connections, a neoprene boot, and a 17.99-inch compressed length for applications that match this configuration.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this part engineered as a new assembly rather than a remanufactured unit. The VW-8064 is identified for Volkswagen applications and is supported by TrakMotive’s ISO 9001:1007 and TS 16949:2009 certified manufacturing standards.

Key Features

• Part number VW-8064 for Volkswagen driveline repair
• New CV axle shaft construction
• Bolt-on inboard and outboard shaft connection style
• Neoprene boot material for joint protection
• 17.99 in. overall compressed length
• 6-bolt inboard and outboard joint design
• Allen head bolts with M8 x 1.25 thread size
• No ABS tone ring included
• No axle nut included

Detailed Description

Use the TrakMotive VW-8064 when replacing a worn or damaged CV axle shaft in a Volkswagen driveline application that calls for a bolt-on axle with a 457 mm compressed length. The axle uses 6 mm Allen hardware at both ends, with six bolt holes at the inboard and outboard joints and M8 x 1.25 thread specification. This configuration supports direct replacement needs where the original axle matches the same connection style and dimensions. Cross-reference part numbers include 80-6106 and AX-9811 for the same application.

What This CV Axle Shaft Helps Address

• Clicking or popping noises during turns caused by worn CV joints
• Vibration from a damaged or out-of-balance axle shaft
• Grease leakage from a deteriorated axle boot
• Driveline noise from excessive joint wear
• Loss of smooth power transfer to the wheels

Installation Notes and Tips

Confirm the vehicle’s axle length, bolt pattern, and joint style before installation. This axle does not include an ABS tone ring, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. The axle nut is not included, so reuse or replacement should be verified separately based on the vehicle’s service requirements. Match the inboard and outboard bolt head size, thread pitch, and compressed length to the original part before installation.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a new replacement part under ISO 9001:1007 and TS 16949:2009 certified processes. The VW-8064 is backed by a limited lifetime warranty.
