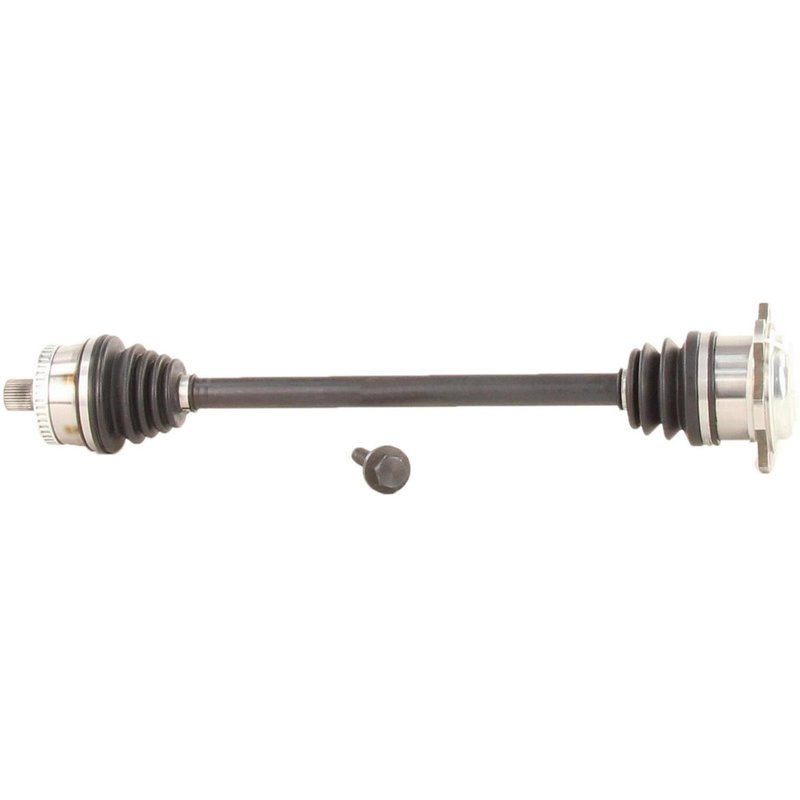

TrakMotive VW-8073 CV Axle Shaft - Front Right

Overview of TrakMotive VW-8073 CV Axle Shaft for Volkswagen Passat

The TrakMotive VW-8073 CV Axle Shaft is designed specifically for Volkswagen Passat models, providing reliable driveline performance. This new CV axle shaft features a neoprene boot and includes an ABS tone ring to ensure proper wheel speed sensor function.

• Compatible with Volkswagen Passat vehicles
• New CV Axle Shaft from TrakMotive's CV Axle Shaft product line
• 45-tooth window ABS ring included for accurate sensor readings
• Neoprene boot material for enhanced durability and protection
• Flange-type inboard joint and Audi style spline bolt outboard joint
• Axle bolt specifications: 23.8 mm hex size, 93 mm length, M14*1.5 thread size
• Overall compressed length of 616 mm (24.25 inches)

Detailed Product Features and Specifications

The VW-8073 CV Axle Shaft from TrakMotive is engineered with a 45-tooth window ABS ring, which is included to maintain accurate wheel speed sensor signals essential for ABS and traction control systems. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the axle shaft. The inboard joint uses a flange connection style, while the outboard joint features an Audi style spline bolt design with 33 splines, ensuring a secure fit and smooth power transfer.

The axle bolt has a 23.8 mm hex size, 93 mm length, and M14*1.5 thread size, designed for precise installation. This CV axle shaft is new, not remanufactured, and includes one bolt hole on the inboard flange and one outboard shaft bolt for secure mounting. The overall compressed length measures 616 mm (24.25 inches), matching factory specifications for proper fitment.

About the TrakMotive CV Axle Shaft Product Line

TrakMotive's CV Axle Shaft product line focuses on delivering new, high-quality driveline components tailored to specific vehicle applications. This line emphasizes precise fitment, durability, and compatibility with OEM specifications. The VW-8073 is part of this line, designed to meet the exact requirements of Volkswagen Passat models, ensuring reliable driveline operation and vehicle safety.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volkswagen Passat
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boot
• Corrects vibration or driveline imbalance issues related to axle shaft failure

Installation Notes and Tips

• Verify vehicle compatibility with Volkswagen Passat before installation
• Use proper torque specifications for axle bolts: 23.8 mm hex size, M14*1.5 thread
• Inspect surrounding components such as wheel bearings and suspension for wear
• Ensure ABS tone ring is properly aligned for accurate sensor readings
• Replace axle nuts separately as they are not included with this part

Quality Assurance and Warranty Information

The TrakMotive VW-8073 CV Axle Shaft is a new component manufactured to meet or exceed OEM standards. It undergoes quality control inspections to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty covering defects in materials and workmanship.
