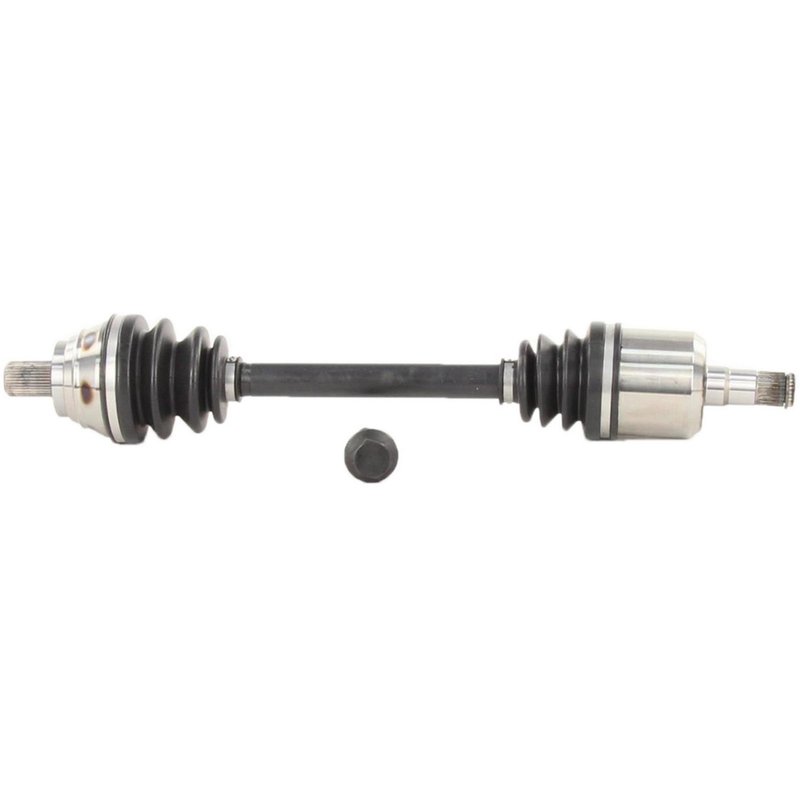

TrakMotive VW-8084 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft VW-8084

The TrakMotive CV Axle Shaft VW-8084 is designed for reliable driveline performance in select Volkswagen models. Engineered to meet OEM specifications, this new axle shaft supports smooth power transfer and durability for vehicles like the Golf, Jetta, Passat, and Passat CC.

• Compatible with Volkswagen Golf, Golf SportWagen, Jetta, Passat, and Passat CC
• New, not remanufactured, ensuring fresh components
• Neoprene boot material for enhanced flexibility and protection
• Axle bolt hex size: 27 mm with M16*1.5 thread size
• Overall compressed length of 585 mm (23.03 inches)
• Inboard joint type: Male with 26 splines
• Outboard joint type: Audi style spline bolt with 36 splines
• Single bolt hole and single outboard shaft bolt for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and exact spline counts to ensure compatibility and longevity. The VW-8084 part exemplifies this approach by matching the inboard and outboard joint styles required for Volkswagen models, providing a direct replacement that maintains factory performance standards.

Technical Description and Specifications

This CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint uses a male connection style with 26 splines, while the outboard joint employs an Audi style spline bolt with 36 splines, ensuring a secure and precise fit. The axle bolt specifications include a 27 mm hex size, 97 mm length, and M16*1.5 thread size, designed to match factory hardware requirements. With an overall compressed length of 585 mm (23.03 inches), this axle shaft fits the specified Volkswagen models without modification.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volkswagen Golf, Jetta, Passat, and Passat CC
• Addresses issues such as axle vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded boots
• Eliminates driveline binding or uneven power transfer
• Prevents premature joint wear due to compromised seals or splines

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft VW-8084, ensure the axle bolt torque specifications match Volkswagen factory recommendations. Verify the correct orientation of the male inboard joint and Audi style outboard spline bolt connection. Inspect the surrounding components such as wheel bearings and seals for wear during replacement. Use appropriate tools for the 27 mm axle bolt hex size and confirm the single bolt hole alignment for secure mounting.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for fit and function. The use of durable neoprene boots and precision-machined splines supports long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in Volkswagen driveline applications.
