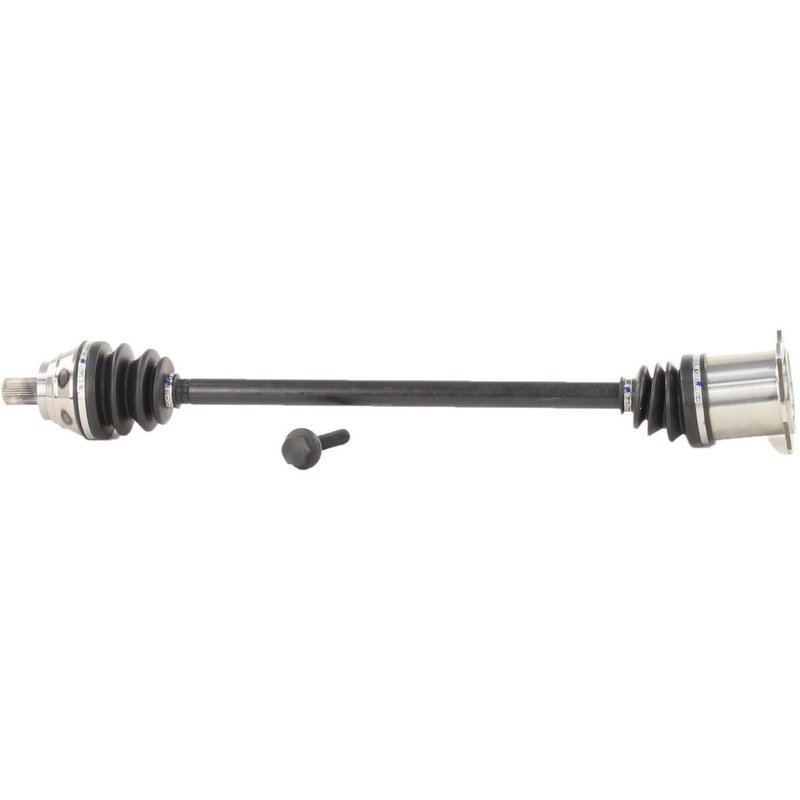

TrakMotive VW-8089 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8089 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Audi style spline bolt |
| Overall Compressed Length (in) | 29.61 |
| Overall Compressed Length (mm) | 752 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 3 vehicles |
New CV axle shaft. Built as a direct replacement for straightforward installation.
Neoprene boot material. Helps protect the joint from dirt and moisture.
ISO 9001 and TS 16949 certified. Manufactured under recognized quality management standards.
Cross-references Protech CV VW10537, TrakMotive VW-8089 and 1K0407272 for the same application. See all 10.
CV Axle Shaft for Volkswagen Jetta
TrakMotive VW-8089 is a new CV axle shaft for the front right position on select 2005-2007 Volkswagen Jetta models. It is built with an Audi-style spline bolt outboard connection and a flange-style inboard joint for direct driveline replacement on the listed application.
Key Features
- Fits 2005-2007 Volkswagen Jetta, front right
- TrakMotive CV Axle Shaft, part number VW-8089
- New replacement axle for standard-duty service
- Outboard joint uses an Audi-style spline bolt connection
- Inboard flange connection style
- Neoprene boot material for axle boot durability
- 27 mm axle bolt hex size, M16 x 1.5 thread
- 36 outboard splines
- No ABS tone ring included
- No axle nut included
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Volkswagen Jetta in 2005, 2006, and 2007. The VW-8089 uses a flange inboard joint and Audi-style spline bolt outboard connection, with a compressed overall length of 752 mm (29.61 in) for the specified fitment. TrakMotive identifies this axle as a new part, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. The brand also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing process.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Uses
- Front right axle shaft replacement for a worn Volkswagen Jetta driveline
- Repair for clicking or popping during turns caused by CV joint wear
- Correction for vibration under acceleration from a damaged axle assembly
- Replacement for torn axle boot or grease loss at the CV joint
- Service part for a vehicle with axle shaft play or driveline noise
Installation Notes
Verify the front right position, spline count, bolt size, and connection style before installation. Confirm whether the vehicle uses ABS, since this axle does not include an ABS tone ring. The axle nut is not included, so reuse or replacement should be planned separately based on the vehicle service procedure.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also references ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for the VW-8089 axle shaft.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2007 | Volkswagen | Jetta | Sedan | — | 1.9L | L4 | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2006 | Volkswagen | Jetta | Sedan | Automatic Dual Clutch | 1.9L | L4 | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Volkswagen | Jetta | Sedan | Automatic | 1.9L | L4 | DIESEL | Front Right | Standard Duty Replacement; CV Axle Shaft |
| No rows match your filter. | |||||||||
