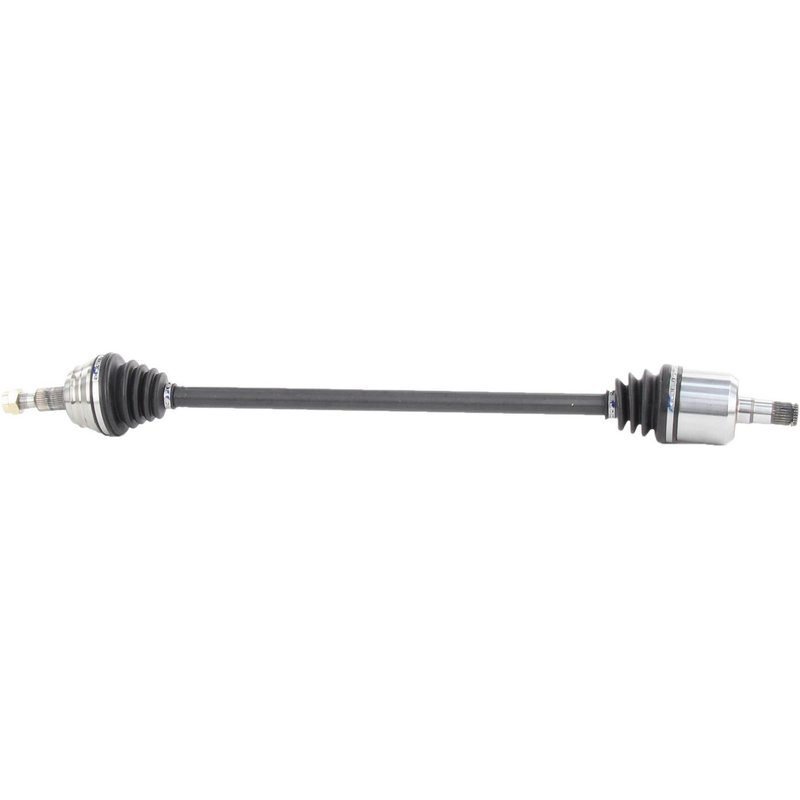

TrakMotive VW-8091 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8091 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/9 |
| Axle Nut Length (mm) | 39.3 |
| Axle Nut Locking Type | Nylon Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 35.43 |
| Overall Compressed Length (mm) | 900 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 16 vehicles |
New axle shaft. Built with a neoprene boot for dependable CV joint protection.
Axle nut included. Comes with a nylon-lock nut for secure fastening.
ISO certified. Made by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-7313, Cardone Reman 60-7313 and Four Seasons 2304N for the same application. See all 17.
CV Axle Shaft for Volkswagen Front Right Applications
TrakMotive VW-8091 is a new front right CV axle shaft for select Volkswagen models, including Golf, Jetta, Jetta City, Golf City, and Beetle applications. It is built for standard-duty replacement use and matches the listed spline counts, compressed length, and axle nut specifications for the confirmed fitments.
Key Features
- New CV axle shaft for front right placement
- Overall compressed length: 35.43 in. (900 mm)
- Inboard joint type: male; outboard joint type: conventional
- Inboard splines: 26; outboard splines: 36
- Neoprene boot material for driveline protection
- Axle nut included with M20 x 1.5 thread, 34 mm hex size, and nylon lock design
- No ABS tone ring included
- TrakMotive part number VW-8091
Product Details
This TrakMotive CV axle shaft is engineered for direct replacement on confirmed Volkswagen front right applications. It is listed for 2011 Volkswagen Golf and Jetta, 2009-2010 Volkswagen Golf City, 2010 Volkswagen Jetta Canada market only, 2008-2009 Volkswagen Jetta and Jetta City with VIN M (8th digit), 2008 Volkswagen Golf City with VIN M (8th digit), and 2003-2005 Volkswagen Beetle. The VW-8091 part number is also referenced by several aftermarket cross numbers for the same application, including Cardone New 66-7313 and Four Seasons 2304N.
As a standard-duty replacement CV axle shaft, this assembly is built to restore driveline function where the original axle has worn splines, damaged joints, or boot failure. TrakMotive identifies the product line as a CV Axle Shaft and backs it with ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
What This Part Helps Address
- Clicking or popping noises during turns caused by worn CV joints
- Vibration or shudder from a damaged or out-of-balance axle shaft
- Grease leakage from a torn or deteriorated boot
- Axle spline wear that affects engagement at the hub or transaxle
- Front right driveline failure on listed Volkswagen Golf, Jetta, and Beetle applications
Installation Notes
Verify the vehicle’s year, model, position, and notes before ordering, especially VIN M (8th digit) and Canada market restrictions where listed. Confirm axle nut thread size, hex size, and overall compressed length against the original part before installation. This axle includes an axle nut; ABS tone ring is not included.
Quality Assurance
TrakMotive states that this CV axle shaft is manufactured under ISO 9001:1007 and TS 16949:2009 certified processes. It is covered by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2011 | Volkswagen | Golf | — | Automatic Dual Clutch | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2011 | Volkswagen | Jetta | — | Automatic | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Volkswagen | Golf City | — | Automatic | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Volkswagen | Jetta | — | Automatic | 2.0L | L4 | Front Right | Canada Market Only; CV Axle Shaft |
| 2009 | Volkswagen | Golf City | — | Automatic | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Volkswagen | Jetta | — | Automatic | 2.0L | L4 | Front Right | VIN M (8th Digit); CV Axle Shaft |
| 2009 | Volkswagen | Jetta City | — | Automatic | 2.0L | L4 | Front Right | VIN M (8th Digit); CV Axle Shaft |
| 2008 | Volkswagen | Golf City | — | Automatic | — | — | Front Right | VIN M (8th Digit); CV Axle Shaft |
| 2008 | Volkswagen | Jetta | — | Automatic Dual Clutch | 2.0L | L4 | Front Right | VIN M (8th Digit); CV Axle Shaft |
| 2008 | Volkswagen | Jetta City | — | Automatic | 2.0L | L4 | Front Right | VIN M (8th Digit); CV Axle Shaft |
| 2005 | Volkswagen | Beetle | — | Automatic Dual Clutch | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Beetle | — | Automatic Dual Clutch | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | Beetle | Hatchback | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | Beetle | Hatchback | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2003 | Volkswagen | Beetle | Hatchback | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2003 | Volkswagen | Beetle | Convertible | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| No rows match your filter. | ||||||||
