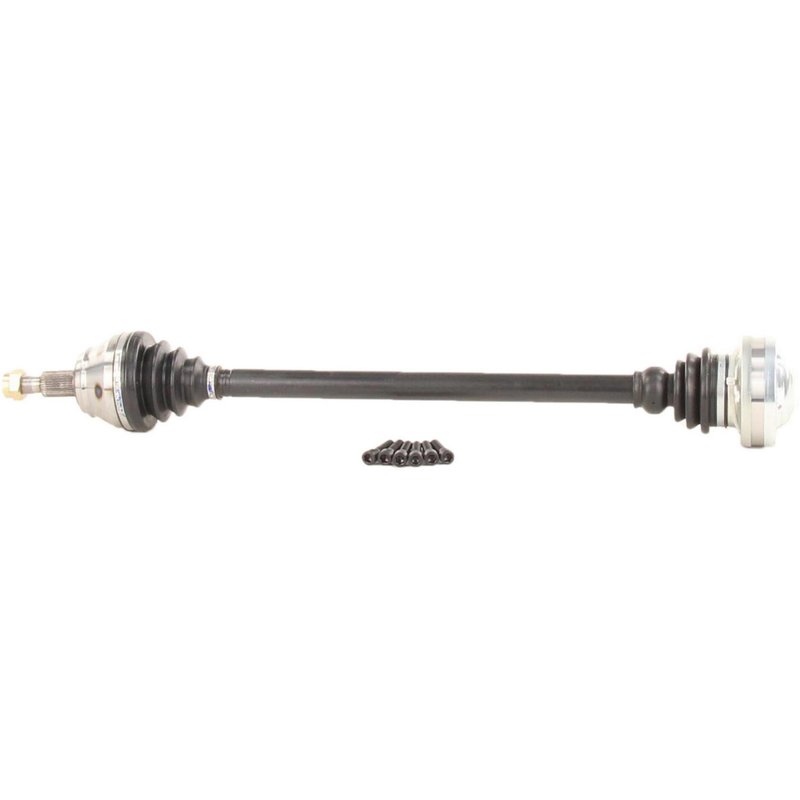

TrakMotive VW-8094 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VW-8094

The TrakMotive CV Axle Shaft VW-8094 is engineered for Volkswagen Beetle models requiring reliable driveline components. This new CV axle shaft is designed to maintain optimal power transfer and vehicle stability without the inclusion of an ABS tone ring.

• Compatible with Volkswagen Beetle
• New CV axle shaft with bolt-on inboard joint
• Includes axle nut with nylon lock for secure fitment
• Neoprene boot material for enhanced durability
• Overall compressed length of 31.69 inches (805 mm)
• Hex head axle nut with M20*1.5 thread size
• Inboard bolt head size 8 mm (Allen type), 6 bolt holes
• Outboard joint type is conventional with 36 splines

Detailed Product Description

The TrakMotive CV Axle Shaft VW-8094 is a new replacement part specifically designed for Volkswagen Beetle vehicles. It features a bolt-on inboard joint with six bolt holes and an Allen-type bolt head sized at 8 mm, ensuring a secure and precise connection to the drivetrain. The outboard joint uses a conventional style with 36 splines, providing consistent torque transfer to the wheels.

This CV axle shaft comes with a neoprene boot, which offers resistance to wear and environmental factors, extending the service life of the joint. The included axle nut has a hex head measuring 34 mm (1 1/3 inches) with a nylon locking mechanism to prevent loosening during operation. The axle nut thread size is M20*1.5, and the nut length is 39.3 mm (1 5/9 inches), designed to fit the Volkswagen Beetle’s specifications precisely.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering reliable and durable constant velocity axle components for various vehicle applications. This line emphasizes precise fitment and quality materials, such as neoprene boots and secure bolt-on connections, to ensure consistent driveline performance. The VW-8094 model exemplifies these standards by providing a direct replacement part tailored for Volkswagen Beetle models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Volkswagen Beetle
• Resolves issues related to axle joint noise or vibration
• Addresses grease leakage from torn or degraded boots
• Fixes axle nut loosening problems with nylon lock feature
• Restores proper driveline function after axle shaft failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft VW-8094, ensure the axle nut is torqued to manufacturer specifications to maintain the integrity of the nylon lock. The bolt-on inboard joint requires tightening of all six Allen head bolts evenly to avoid misalignment. Inspect the neoprene boot for any damage during installation and replace if necessary to prevent premature joint wear. Proper lubrication of the joint before assembly is recommended for optimal performance.

Quality Assurance and Warranty

This CV axle shaft is a new, remanufactured-free component designed to meet OEM standards for Volkswagen Beetle vehicles. The part undergoes quality checks to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for durability and reliability in driveline components.
