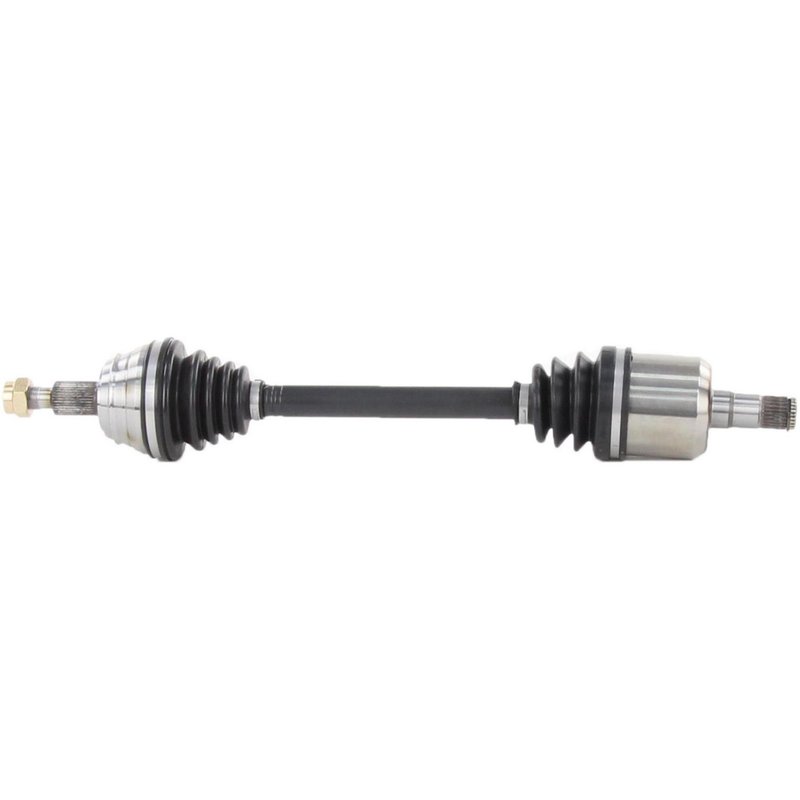

TrakMotive VW-8096 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-8096 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/9 |
| Axle Nut Length (mm) | 39.3 |
| Axle Nut Locking Type | Nylon Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.94 |
| Overall Compressed Length (mm) | 608 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 8 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable protection.
Axle nut included. Comes with a nylon-lock nut for secure fastening.
ISO certified company. Built by a manufacturer certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-7449, Cardone Reman 60-7449 and TrakMotive VW-8096 for the same application. See all 10.
TrakMotive CV Axle Shaft VW-8096
The TrakMotive VW-8096 CV axle shaft is a new front left driveline replacement for select Volkswagen Beetle and Volkswagen Beetle Cabrio applications. Built for 2006-2011 Volkswagen Beetle and 2010-2011 Volkswagen Beetle Cabrio front left positions, it is specified with a 23.94 in. compressed length, 26 inboard splines, and 36 outboard splines for direct-fit service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8096
- New axle shaft assembly
- Front left application
- Overall compressed length: 23.94 in. (608 mm)
- Inboard joint type: Male
- Outboard joint type: Conventional
- Inboard splines: 26
- Outboard splines: 36
- Neoprene boot material
- Axle nut included with M20 x 1.5 nylon-lock design
- 34 mm hex axle nut head
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline replacement on Volkswagen Beetle and Volkswagen Beetle Cabrio models listed in the fitment data. The VW-8096 uses a male inboard shaft connection and a conventional outboard connection, along with a neoprene boot for joint protection. It also includes the axle nut specified for the application, with a 34 mm hex size and M20 x 1.5 thread.
TrakMotive positions this CV axle shaft line as a new replacement component backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes. ABS tone ring is not included, and ABS axles are stated to fit non-ABS applications unless otherwise noted. For buyers searching for a Volkswagen Beetle front left CV axle shaft or a Volkswagen Beetle Cabrio front left axle replacement, VW-8096 is the listed part number.
This part cross-references Cardone New 66-7449 and Cardone Reman 60-7449 for the same application.
What It Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Axle shaft wear from damaged boots or joint contamination
- Front left driveline noise on Volkswagen Beetle and Beetle Cabrio models
- Loss of smooth power transfer from the transaxle to the wheel
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. Confirm front left position and match the vehicle’s ABS configuration to the axle specification. Inspect related hub, seal, and suspension components during replacement to help prevent repeat driveline noise or premature wear. Use the included axle nut only if it matches the vehicle’s service requirements.
Quality Assurance
TrakMotive states that this CV axle shaft is manufactured under ISO 9001:1007 and TS 16949:2009 certified processes. The VW-8096 is a new part and is covered by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Volkswagen | Beetle | Automatic | — | — | Front Left | CV Axle Shaft |
| 2011 | Volkswagen | Beetle Cabrio | Automatic | — | — | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | Beetle | Automatic | — | — | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | Beetle Cabrio | Automatic | — | — | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | Beetle | Automatic | — | — | Front Left | CV Axle Shaft |
| 2008 | Volkswagen | Beetle | Automatic | — | — | Front Left | CV Axle Shaft |
| 2007 | Volkswagen | Beetle | Automatic | — | — | Front Left | CV Axle Shaft |
| 2006 | Volkswagen | Beetle | Automatic | 2.5L | L5 | Front Left | CV Axle Shaft |
