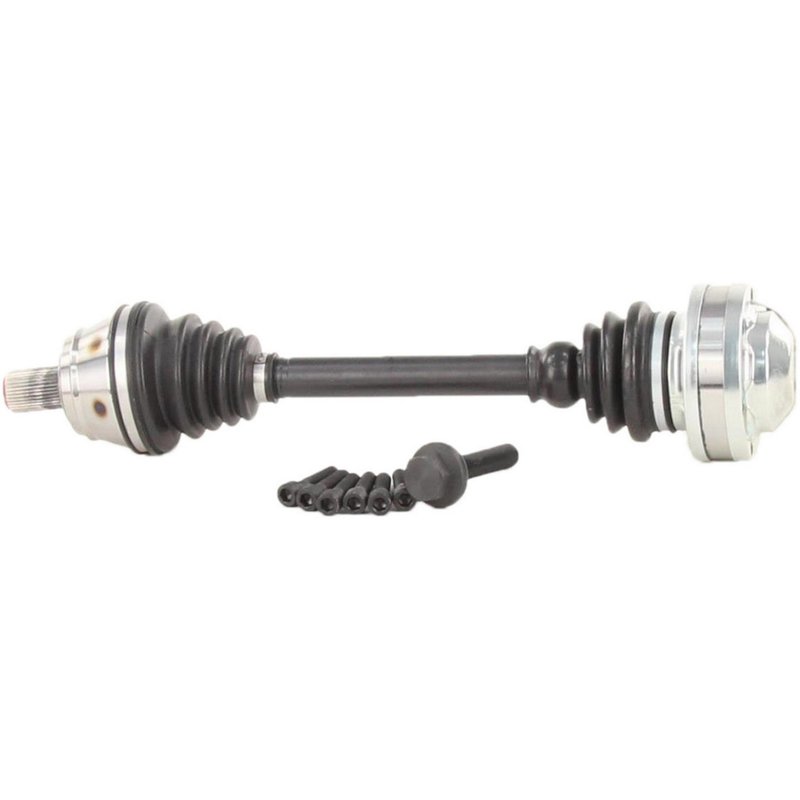

TrakMotive VW-8098 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-8098 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 19.02 |
| Overall Compressed Length (mm) | 483 |
| Product line | CV Axle Shaft |
| Fits | Audi and Volkswagen · 10 vehicles |
Bolt-on design. Simplifies installation with matching inboard and shaft connections.
Neoprene boot. Helps protect the axle from dirt and moisture.
New unit. Built as a fresh replacement, not remanufactured.
Cross-references Four Seasons 2433N, TrakMotive VW-8098 and 80-9091 for the same application. See all 9.
CV Axle Shaft for Audi TT Quattro and VW
TrakMotive VW-8098 is a new CV axle shaft for front left applications on select Audi and Volkswagen models. It is built with a neoprene boot, a 36-spline outboard connection, and a bolt-on inboard joint for the specified fitments.
This CV axle shaft is a direct replacement for front left driveline service on 2002-2006 Audi TT Quattro and select 2002-2005 Volkswagen Jetta and Golf applications. TrakMotive VW-8098 is also referenced by cross numbers used for the same application, including Four Seasons 2433N.
Key Features
- New CV axle shaft for front left driveline replacement
- Neoprene boot material for the CV joint assembly
- Outboard Audi-style spline bolt connection with 36 outboard splines
- Bolt-on inboard joint and bolt-on shaft connection
- Overall compressed length: 483 mm (19.02 in.)
- Axle bolt thread size: M16 x 1.5
- Inboard bolt head type: Allen
- ABS axles fit non-ABS applications unless otherwise noted
Detailed Description
TrakMotive VW-8098 is a CV axle shaft engineered for front left service on the listed Audi TT Quattro, Volkswagen Jetta, and Volkswagen Golf applications. The axle uses an Audi-style spline bolt outboard connection, a 6-bolt inboard joint pattern, and a 483 mm compressed length to match the specified driveline geometry. The TrakMotive CV Axle Shaft line focuses on replacement fitment for common passenger vehicle driveline repairs, and VW-8098 is identified for the exact vehicle and position combinations shown below.
Compatible With: 2003-2006 Audi TT Quattro, front left; 2005 Volkswagen Jetta, front left; 2002 Volkswagen Jetta, front left; 2004 Volkswagen Jetta GLI, front left; 2002-2003 Volkswagen Golf, front left; 2002 Audi TT Quattro, front left with 18 in. wheels. Use the part number VW-8098 when verifying application details for Audi TT Quattro and Volkswagen Jetta or Golf front left axle replacement service.
Common Repair Uses
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a worn or damaged axle shaft
- Torn boot or grease loss at the CV joint
- Front left driveline noise on Audi TT Quattro or Volkswagen Jetta/Golf applications
- Axle replacement after spline, joint, or shaft wear
Installation Notes and Tips
Confirm the vehicle year, model, and front left position before installation. Verify the axle bolt thread size, inboard bolt pattern, and outboard spline style against the original part. For 2002 Audi TT Quattro applications, confirm the 18 in. wheel note before ordering. Always inspect seals, hub hardware, and surrounding suspension components during axle service.
Quality Assurance
TrakMotive VW-8098 is backed by a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and the company is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2006 | Audi | TT Quattro | — | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2005 | Audi | TT Quattro | — | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2005 | Volkswagen | Jetta | GLI | — | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2004 | Audi | TT Quattro | — | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2004 | Volkswagen | Jetta | GLI | Sedan | Manual | 1.8L | L4 | Front Left | GLI; CV Axle Shaft |
| 2003 | Audi | TT Quattro | — | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2003 | Volkswagen | Golf | — | — | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2002 | Audi | TT Quattro | — | — | — | — | — | Front Left | w/ 18 in. Wheels; CV Axle Shaft |
| 2002 | Volkswagen | Golf | — | — | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2002 | Volkswagen | Jetta | — | — | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
