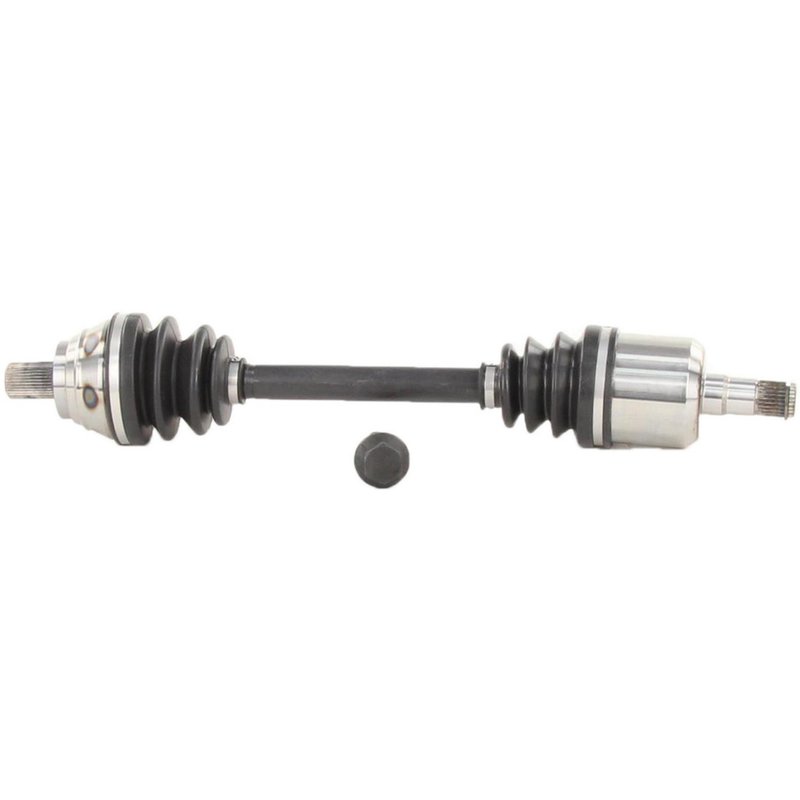

TrakMotive VW-8102 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-8102 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.13 |
| Overall Compressed Length (mm) | 562 |
| Product line | CV Axle Shaft |
| Fits | Audi and Volkswagen · 35 vehicles |
New CV axle shaft. A direct replacement for restoring driveline performance.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO 9001 and TS 16949 certified. Built by a certified company with controlled quality standards.
Cross-references TrakMotive VW-8102, 3C0407271AA and 3C0407271AN for the same application. See all 9.
CV Axle Shaft for Audi and Volkswagen
TrakMotive VW-8102 is a new CV axle shaft for front left applications on select Audi and Volkswagen models. It is built with a neoprene boot, male inboard connection, and Audi-style spline bolt outboard joint for direct driveline service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8102
- New replacement axle shaft, not remanufactured
- Front left position
- 26 inboard splines and 36 outboard splines
- Overall compressed length: 22.13 in. (562 mm)
- Neoprene boot material
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
- No ABS tone ring included
- No axle nut included
Product Details
TrakMotive VW-8102 is a CV axle shaft for front left driveline repair on 2006-2010 Volkswagen Passat, 2009-2012 Volkswagen Passat CC, 2009-2015 Volkswagen Tiguan, 2009-2016 Volkswagen CC, and 2015-2016 Audi Q3. The axle uses a male inboard shaft connection and an Audi-style spline bolt outboard joint, with dimensions and spline counts matched to the listed applications. TrakMotive CV axle shafts are backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices, and the brand notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references OE-style numbers such as 3C0407271AA and 3C0407271AN for the same application.
Common Repair Uses
- Restores driveline transfer when the original axle shaft is worn or damaged
- Addresses clicking or popping noises during turns caused by CV joint wear
- Helps correct vibration under acceleration from a failing front axle
- Replaces a torn boot or grease loss condition before further joint damage occurs
- Supports repair of axle-related play or binding at the front left corner
Installation Notes
Verify spline count, axle bolt size, and compressed length before installation. Confirm front left fitment on the specific Audi Q3, Volkswagen CC, Volkswagen Tiguan, Volkswagen Passat CC, or Volkswagen Passat application listed above. Inspect mating hubs, seals, and fasteners for wear before installing the new axle shaft. Because no axle nut is included, reuse or replace related hardware as required by the vehicle service procedure.
Quality Assurance
TrakMotive VW-8102 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It includes a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2016 | Audi | Q3 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2016 | Volkswagen | CC | V6 Executive 4Motion | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2015 | Audi | Q3 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2015 | Volkswagen | CC | Executive 4 Motion | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2015 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2014 | Volkswagen | CC | — | AWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2014 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2013 | Volkswagen | CC | VR6 4Motion Executive | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2013 | Volkswagen | CC | Highline V6 | AWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2013 | Volkswagen | CC | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2013 | Volkswagen | CC | — | FWD | Automatic Dual Clutch | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2013 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2012 | Volkswagen | CC | — | AWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2012 | Volkswagen | Passat CC | — | — | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2012 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2011 | Volkswagen | CC | — | AWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2011 | Volkswagen | Passat CC | — | — | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2011 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | CC | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | CC | — | AWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | Passat | — | — | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | Passat CC | — | — | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | CC | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | CC | — | AWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | Passat | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | Passat | — | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | Passat CC | — | — | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | Tiguan | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2008 | Volkswagen | Passat | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2008 | Volkswagen | Passat | — | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2007 | Volkswagen | Passat | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2007 | Volkswagen | Passat | — | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2006 | Volkswagen | Passat | — | FWD | Automatic | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2006 | Volkswagen | Passat | — | AWD | — | 3.6L | V6 | Front Left | CV Axle Shaft |
