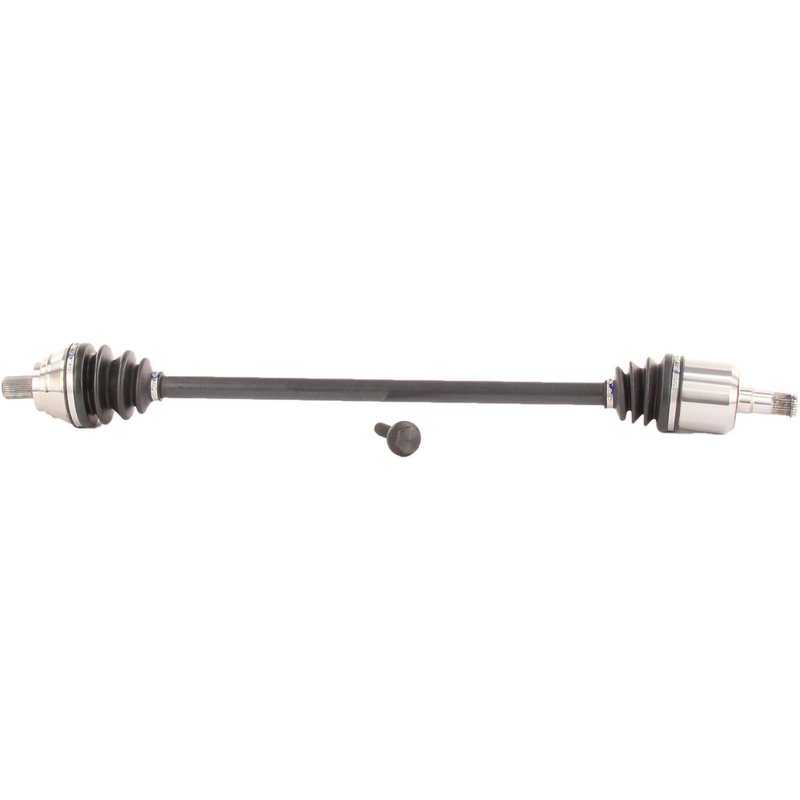

TrakMotive VW-8103 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VW-8103

The TrakMotive CV Axle Shaft VW-8103 is designed for reliable driveline performance in select Audi and Volkswagen models. Engineered as a new component, this axle shaft supports smooth power transfer and durability for vehicles like the Audi Q3 and Volkswagen Passat CC.

• Compatible with Audi CC, Q3 and Volkswagen Passat, Passat CC, Tiguan
• New CV Axle Shaft with neoprene boot material for enhanced durability
• Axle bolt hex size: 27 mm, bolt length: 97 mm, thread size: M16*1.5
• Inboard joint type: Male with 26 splines; Outboard joint type: Audi style spline bolt with 36 splines
• Overall compressed length: 903 mm (35.55 inches)
• Single bolt hole design for both inboard and outboard shaft connections

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and function for driveline and axle components. This line emphasizes new, high-quality parts engineered to meet OEM specifications, ensuring compatibility and performance for vehicles requiring CV axle replacements. The VW-8103 part exemplifies this approach with its detailed spline counts and connection styles tailored for Audi and Volkswagen applications.

Technical Description and Features

This CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a male connection style with 26 splines, while the outboard joint employs an Audi style spline bolt with 36 splines, ensuring secure and precise engagement. The axle bolt specifications include a 27 mm hex size, 97 mm length, and M16*1.5 thread size, designed for proper torque and fitment. The overall compressed length of 903 mm (35.55 inches) matches the exact requirements for compatible Audi and Volkswagen models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Audi Q3 and Volkswagen Tiguan
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses boot damage or grease leakage due to torn or degraded boots
• Corrects driveline imbalance caused by bent or broken axle shafts
• Improves vehicle handling and power transfer efficiency

Installation Notes and Tips

Ensure the axle bolt hex size (27 mm) and thread size (M16*1.5) match your vehicle’s specifications before installation. Proper torque settings should be followed to avoid damage to the axle or hub assembly. The single bolt hole design simplifies alignment during installation. It is recommended to inspect related components such as wheel bearings and suspension parts during replacement to ensure overall driveline integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8103 is a new, remanufactured-free part built to meet or exceed OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy for Audi and Volkswagen vehicles. Always verify warranty coverage with the supplier or manufacturer.
