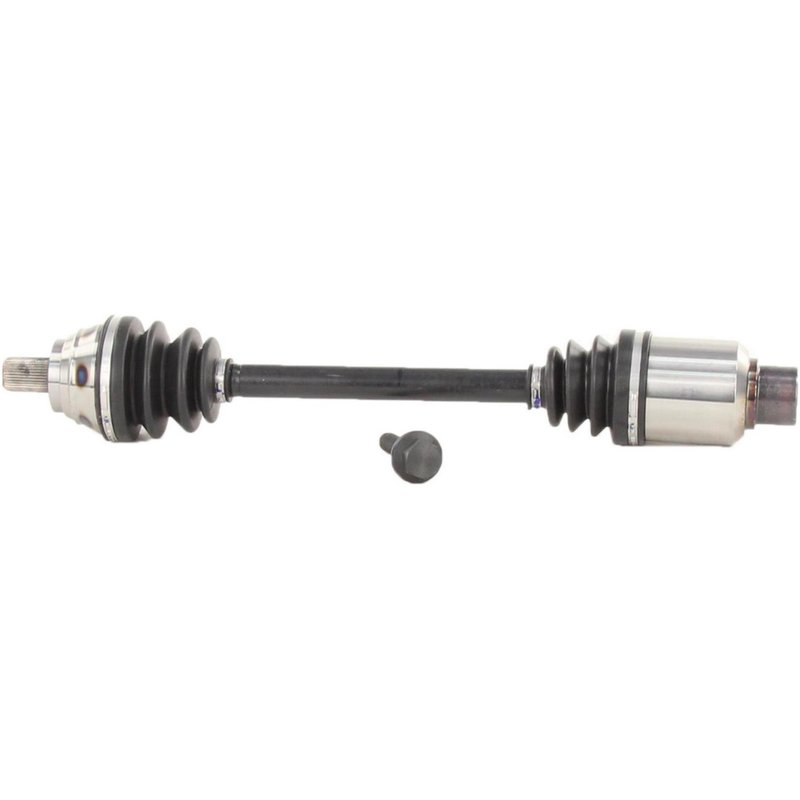

TrakMotive VW-8107 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8107 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Audi style spline bolt |
| Overall Compressed Length (in) | 23.35 |
| Overall Compressed Length (mm) | 593 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 13 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear and keep grease contained.
ISO certified company. Built by a manufacturer certified to recognized quality standards.
Cross-references Cardone Reman 60-7345, TrakMotive VW-8107 and 3C0407272BF for the same application. See all 10.
CV Axle Shaft for Volkswagen Front Right Applications
TrakMotive VW-8107 is a new CV axle shaft for the front right position on select Volkswagen CC and Passat applications. It is built with a neoprene boot, a female inboard connection, and an Audi-style spline bolt outboard joint for the specified driveline setup.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8107
- New axle shaft for front right driveline service
- Neoprene boot material for the CV joint assembly
- Female inboard shaft connection style
- Audi-style spline bolt outboard joint
- 26 inboard splines and 36 outboard splines
- Overall compressed length: 23.35 in. (593 mm)
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for front right Volkswagen driveline service where the original axle uses a female inboard connection and Audi-style spline bolt outboard design. The VW-8107 part number is listed for 2006-2009 Volkswagen Passat, 2009-2011 Volkswagen CC, 2009-2012 Volkswagen Passat CC, and 2013-2014 Volkswagen CC front right applications. TrakMotive identifies this axle as a new replacement component, and the company notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system.
This part cross-references Cardone Reman 60-7345 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from a damaged CV boot
- Excessive play in the front right axle assembly
- Noise from a failing driveline shaft on Volkswagen CC or Passat models
Installation Notes and Tips
Verify the front right position, spline count, and axle bolt specifications before installation. Confirm whether the vehicle uses the listed Audi-style spline bolt outboard connection and match the axle length to the original part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certification, supporting consistent manufacturing control for Volkswagen CC and Passat replacement needs.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2014 | Volkswagen | CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2013 | Volkswagen | CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2012 | Volkswagen | Passat CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2011 | Volkswagen | CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2011 | Volkswagen | Passat CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2010 | Volkswagen | CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2010 | Volkswagen | Passat CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | Passat | AWD | — | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | Passat CC | AWD | Automatic | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2008 | Volkswagen | Passat | AWD | — | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2007 | Volkswagen | Passat | AWD | — | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2006 | Volkswagen | Passat | AWD | — | 3.6L | V6 | Front Right | CV Axle Shaft |
