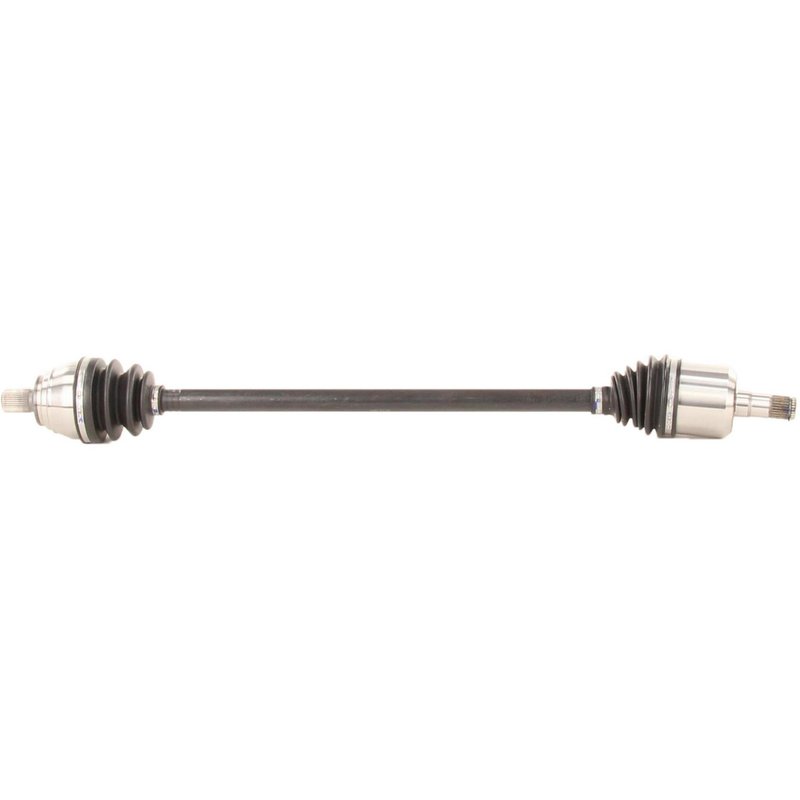

TrakMotive VW-8125 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VW-8125 for Volkswagen Passat

The TrakMotive CV Axle Shaft VW-8125 is designed specifically for Volkswagen Passat models, providing reliable driveline performance. This new CV axle shaft features durable neoprene boots and precise spline counts to ensure proper fit and function.

• Compatible with Volkswagen Passat vehicles
• New CV axle shaft with part number VW-8125
• Neoprene boot material for enhanced durability
• Inboard joint type: Male with 26 splines
• Outboard joint type: Conventional with 36 splines
• Overall compressed length: 35.31 inches (897 mm)
• Does not include ABS tone ring or axle nut

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for specific vehicle applications. This line emphasizes precise fitment and reliable joint types, such as the male inboard joint and conventional outboard joint found on the VW-8125, to maintain driveline integrity and vehicle safety.

Technical Description and Specifications

The VW-8125 CV axle shaft is constructed with a neoprene boot material that offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint features a male connection style with 26 splines, while the outboard joint uses a conventional design with 36 splines and a spline shaft connection. The overall compressed length of 35.31 inches (897 mm) ensures compatibility with Volkswagen Passat driveline assemblies. This part is new and does not include an ABS tone ring or axle nut, so those components must be sourced separately if required.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volkswagen Passat
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Restores driveline stability and smooth power transfer to wheels
• Prevents grease leakage by maintaining boot integrity with neoprene material

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft VW-8125, ensure the vehicle is securely lifted and supported. Verify spline counts and joint types match the original axle to avoid fitment issues. Since the axle nut and ABS tone ring are not included, reuse existing components if in good condition or acquire replacements as needed. Proper torque specifications should be followed to maintain driveline safety and performance.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet OEM specifications for Volkswagen Passat vehicles. TrakMotive products undergo quality control to ensure durability and fitment accuracy. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship under normal use.
