TrakMotive VW-8130 CV Axle Shaft - Rear Right

OE Quality 60-Day Returns

CV Axle Shaft

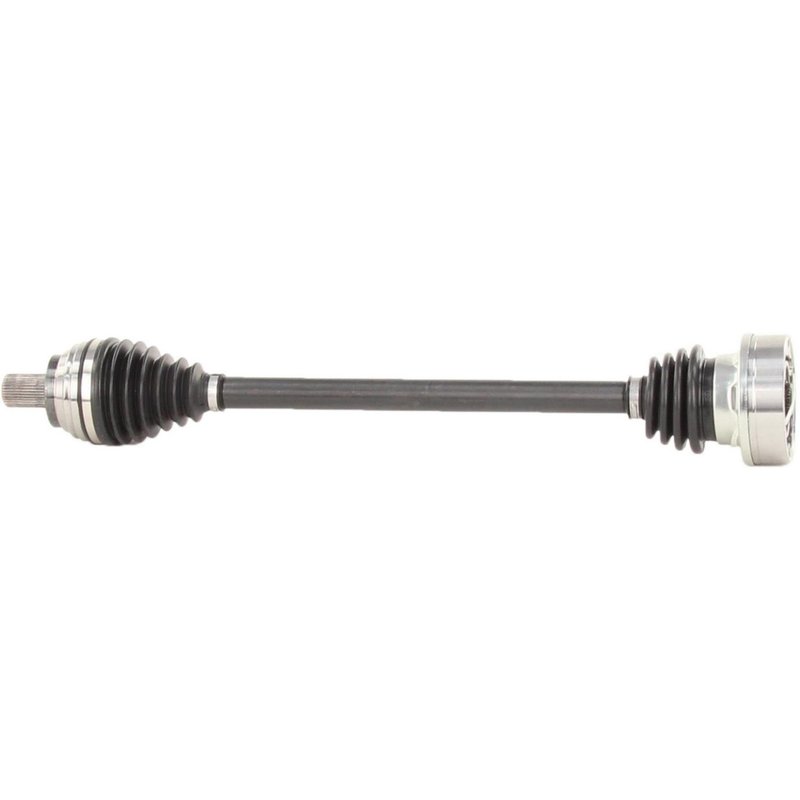

TrakMotive VW-8130 CV Axle Shaft - Rear Right

Brand	TrakMotive VW-8130
Position	Rear Right
Abs Tone Ring Included	No
Axle Nut Included	No
Boot Material	Neoprene
Inboard Joint Type	Bolt-on
Inboard Shaft Connection Style	Bolt-on
New Or Remanufactured	New
Number Of Outboard Splines	36
Outboard Joint Type	Audi style spline bolt
Outboard Shaft Connection Style	Spline
Overall Compressed Length (in)	24.8
Overall Compressed Length (mm)	630
Product line	CV Axle Shaft
Fits	Audi and Volkswagen · 50 vehicles

Bolt-on design. Simplifies installation with bolt-on inboard connection points.

Neoprene boot material. Helps resist wear while keeping the joint protected.

New axle shaft. Built as a fresh replacement, not remanufactured.

Cross-references TrakMotive VW-8130 for the same application. See all 1.

$123.89Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

Rear Right CV Axle Shaft for Audi and Volkswagen

TrakMotive VW-8130 is a new rear right CV axle shaft for select Audi and Volkswagen applications. It is built with a neoprene boot, a bolt-on inboard joint, and an Audi-style spline bolt outboard joint for direct driveline service on covered vehicles.

This CV axle shaft is listed for rear right use on Audi Q3 Quattro, Audi TT Quattro, Audi TT RS Quattro, Audi A3 Quattro, Volkswagen Tiguan, Volkswagen CC, Volkswagen Golf R, and Volkswagen Passat applications. TrakMotive VW-8130 is also referenced by part number VW-8130 for ordering and catalog lookup.

Key Features

New CV axle shaft for driveline and axle repair
Rear right position
Neoprene boot material for flexible joint protection
Bolt-on inboard joint and bolt-on inboard shaft connection style
Audi-style spline bolt outboard joint with 36 outboard splines
Overall compressed length: 24.8 in. (630 mm)
No ABS tone ring included
No axle nut included

Product Details

TrakMotive VW-8130 is a CV axle shaft built for rear right driveline replacement on select Audi and Volkswagen models. The axle uses a spline outboard shaft connection and an Audi-style spline bolt joint, with a bolt-on inboard connection for the specified applications. Its 24.8-inch compressed length and 36-spline outboard design help match the original driveline geometry on covered vehicles.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline service parts for import applications. This part cross-references TrakMotive VW-8130 for the same application.

Common Problems This Part Can Address

Clicking or popping from a worn rear CV joint
Vibration during acceleration from axle wear
Torn or deteriorated axle boot condition
Excessive driveline play at the rear axle
Noise from a damaged rear right axle assembly

Installation Notes and Tips

Verify rear right fitment by year, model, and notes before installation.
Confirm the vehicle uses the listed bolt-on inboard and Audi-style spline bolt outboard connection.
Check axle length and spline count against the original part before removal.
Inspect related seals, hub components, and mounting hardware condition during service.
For 2018 Volkswagen Tiguan, confirm German-built VIN W application and limited notes.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing quality control.

This part fits 50 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Drive Type	Transmission	Position	Notes
2018	Audi	Q3 Quattro	—	AWD	—	Rear Right	Standard Duty Replacement; CV Axle Shaft
2018	Volkswagen	Tiguan	—	AWD	—	Rear Right	German Built; VIN W (1st Digit); Limited; CV Axle Shaft
2017	Audi	Q3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2017	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2017	Volkswagen	Tiguan	—	AWD	—	Rear Right	CV Axle Shaft
2016	Audi	Q3	—	AWD	—	Rear Right	CV Axle Shaft
2016	Audi	Q3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2016	Audi	TT Quattro	—	AWD	—	Rear Right	Thru 1/11/16; CV Axle Shaft
2016	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2016	Volkswagen	Tiguan	—	AWD	Automatic	Rear Right	CV Axle Shaft
2015	Audi	Q3	—	AWD	—	Rear Right	CV Axle Shaft
2015	Audi	Q3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2015	Audi	TT Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2015	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2015	Volkswagen	Tiguan	—	AWD	Automatic	Rear Right	CV Axle Shaft
2014	Audi	TT Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2014	Audi	TT RS Quattro	—	—	—	Rear Right	Standard Duty Replacement; CV Axle Shaft
2014	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2014	Volkswagen	Tiguan	—	AWD	Automatic	Rear Right	CV Axle Shaft
2013	Audi	A3 Quattro	—	AWD	—	Rear Right	RS; CV Axle Shaft
2013	Audi	TT Quattro	Base	AWD	—	Rear Right	CV Axle Shaft
2013	Audi	TT RS Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2013	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2013	Volkswagen	Golf R	—	AWD	—	Rear Right	CV Axle Shaft
2013	Volkswagen	Tiguan	—	AWD	Automatic	Rear Right	CV Axle Shaft
2012	Audi	A3 Quattro	—	AWD	—	Rear Right	RS; CV Axle Shaft
2012	Audi	TT Quattro	Base	AWD	—	Rear Right	CV Axle Shaft
2012	Audi	TT RS Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2012	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2012	Volkswagen	Golf R	—	AWD	—	Rear Right	CV Axle Shaft
2012	Volkswagen	Tiguan	—	AWD	Automatic	Rear Right	CV Axle Shaft
2011	Audi	A3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2011	Audi	TT Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2011	Audi	TT RS Quattro	—	—	—	Rear Right	Standard Duty Replacement; CV Axle Shaft
2011	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2011	Volkswagen	Tiguan	—	AWD	—	Rear Right	CV Axle Shaft
2010	Audi	A3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2010	Audi	TT Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2010	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2010	Volkswagen	Tiguan	—	AWD	—	Rear Right	CV Axle Shaft
2009	Audi	A3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2009	Volkswagen	CC	—	AWD	—	Rear Right	CV Axle Shaft
2009	Volkswagen	Passat	—	AWD	—	Rear Right	CV Axle Shaft
2009	Volkswagen	Tiguan	—	AWD	—	Rear Right	CV Axle Shaft
2008	Audi	A3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2008	Volkswagen	Passat	—	AWD	—	Rear Right	CV Axle Shaft
2007	Audi	A3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2007	Volkswagen	Passat	—	AWD	—	Rear Right	CV Axle Shaft
2006	Audi	A3 Quattro	—	AWD	—	Rear Right	CV Axle Shaft
2006	Volkswagen	Passat	—	AWD	—	Rear Right	CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 1 part number

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

TrakMotive — VW-8130
