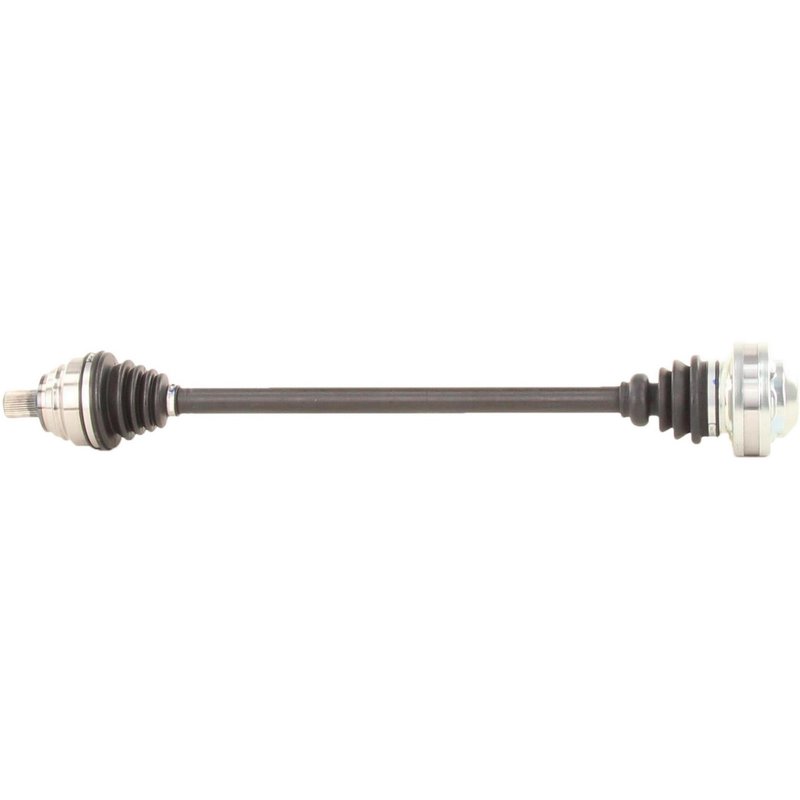

TrakMotive VW-8141 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VW-8141

The TrakMotive CV Axle Shaft VW-8141 is designed specifically for Volkswagen CC and GTI models. This new axle shaft provides reliable driveline performance with precise fitment and durable construction, ensuring smooth power transfer from the transmission to the wheels.

• Compatible with Volkswagen CC and GTI models
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability and protection
• Inboard joint features a bolt-on type connection
• Outboard joint uses Audi style spline bolt with 36 splines
• Overall compressed length of 30.67 inches (779 mm)
• Does not include ABS tone ring or axle nut

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. The VW-8141 model exemplifies this approach by offering a bolt-on inboard joint and a spline-style outboard connection, designed to meet the exact specifications of Volkswagen CC and GTI drivetrains. This ensures proper fitment and performance without modification.

Technical Description and Features

This CV axle shaft is constructed with a neoprene boot that provides resistance to wear and environmental damage, extending the life of the joint. The inboard joint uses a bolt-on connection style, allowing for secure installation and maintenance. The outboard joint features an Audi style spline bolt with 36 splines, ensuring a precise fit with the wheel hub assembly. The overall compressed length of 30.67 inches (779 mm) matches factory specifications for the compatible Volkswagen models. Note that this part does not include an ABS tone ring or axle nut, so these components must be sourced separately if needed.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Volkswagen CC and GTI
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Restores proper driveline function after boot damage or grease leakage
• Addresses axle shaft bending or breakage from impact or wear

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the axle shaft length and spline count match the original part. Since the axle nut and ABS tone ring are not included, retain or replace these components as necessary. Use proper torque specifications for the bolt-on inboard joint and axle nut to avoid premature wear. Inspect the surrounding suspension and drivetrain components during installation for any additional maintenance needs.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8141 is a new, factory-quality replacement part designed to meet or exceed OEM standards. Manufactured with durable materials and precise engineering, it supports reliable vehicle operation. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
