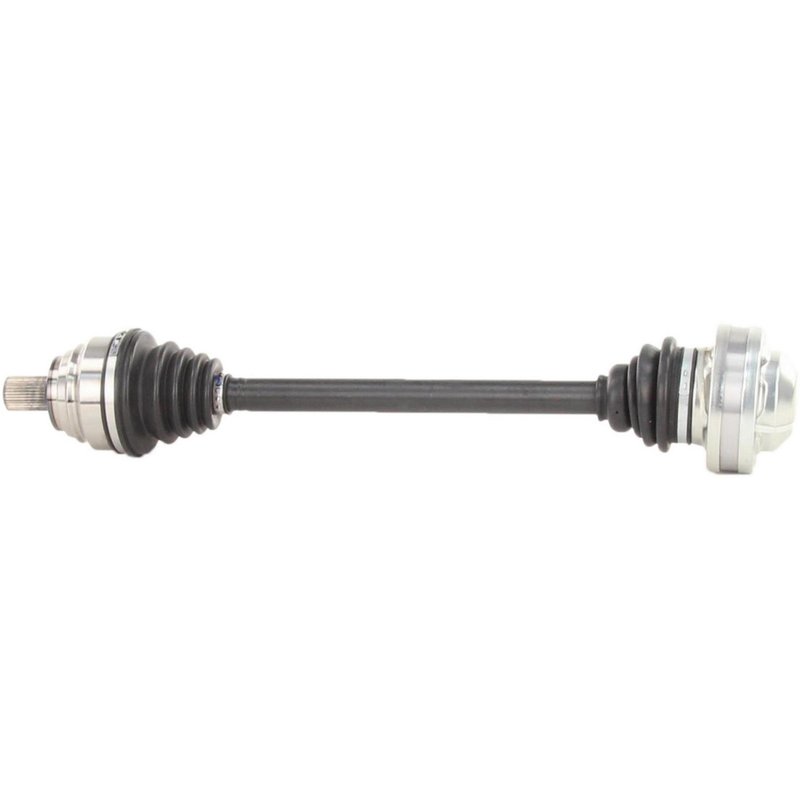

TrakMotive VW-8142 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8142 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.5 |
| Overall Compressed Length (mm) | 597 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 9 vehicles |
Bolt-on design. Simplifies installation with bolt-on inboard connections.
Neoprene boot material. Helps protect the CV joint from dirt and moisture.
ISO 9001 and TS 16949 certified. Built by a company with recognized quality management standards.
Cross-references TrakMotive VW-8142 for the same application. See all 1.
TrakMotive VW-8142 CV Axle Shaft
The TrakMotive VW-8142 is a new front right CV axle shaft for select Volkswagen applications. Built with a neoprene boot and bolt-on inboard connection, it is specified for direct replacement use on listed Golf, GTI, Golf Alltrack, Golf SportWagen, and Jetta models.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8142
- Front right position
- New construction
- Neoprene boot material
- Bolt-on inboard joint and shaft connection
- 36 outboard splines
- Outboard joint type: Audi style spline bolt
- Overall compressed length: 23.5 in. (597 mm)
- No ABS tone ring included
- Axle nut not included
Product Details
This TrakMotive CV axle shaft is engineered for Volkswagen driveline service where the original front right axle has worn splines, joint play, or boot damage. The VW-8142 uses a bolt-on inboard design and a spline outboard connection with 36 outboard splines, making it a direct-fit replacement for the listed applications. TrakMotive identifies this axle as a new part, and the neoprene boot material supports flexible joint protection in everyday driving conditions. This part cross-references TrakMotive VW-8142 for the same application.
Compatible with 2019 Volkswagen Jetta, front right; 2018 Volkswagen Golf, front right, Mexico built through 1/21/18 with AWD; 2018 Volkswagen GTI, front right through 1/21/18; 2017 Volkswagen Golf Alltrack, front right; 2017 Volkswagen Golf SportWagen, front right; and 2015-2017 Volkswagen GTI, front right, VIN 4 (5th digit). Search terms such as Volkswagen Golf front right CV axle shaft, GTI AWD axle replacement, and Jetta front right driveline shaft all align with this application.
Common Problems This Part Addresses
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged CV boot
- Excessive play in the front right driveline assembly
- Noise caused by spline or joint wear
Installation Notes and Tips
Verify the vehicle’s build details, drivetrain, and VIN notes before ordering, especially for 2018 Golf and GTI applications. Confirm the front right position, spline count, and overall compressed length against the original axle. The axle nut is not included, and no ABS tone ring is included, so reuse or source related components as needed based on the vehicle’s original setup.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2019 | Volkswagen | Jetta | GLI | — | — | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2018 | Volkswagen | Golf | — | — | — | Automatic | — | — | Front Right | Mexico built; Thru 1/21/18; w/ AWD; CV Axle Shaft |
| 2018 | Volkswagen | GTI | SE | — | — | — | — | — | Front Right | Thru 1/21/18; CV Axle Shaft |
| 2018 | Volkswagen | GTI | Autobahn | — | — | — | — | — | Front Right | Thru 1/21/18; CV Axle Shaft |
| 2017 | Volkswagen | Golf Alltrack | — | Wagon | — | Automatic Dual Clutch | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf SportWagen | — | Wagon | AWD | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2017 | Volkswagen | GTI | — | — | — | — | — | — | Front Right | VIN 4 (5th digit); CV Axle Shaft |
| 2016 | Volkswagen | GTI | — | — | — | — | — | — | Front Right | VIN 4 (5th digit); CV Axle Shaft |
| 2015 | Volkswagen | GTI | — | — | — | — | — | — | Front Right | VIN 4 (5th digit); CV Axle Shaft |
