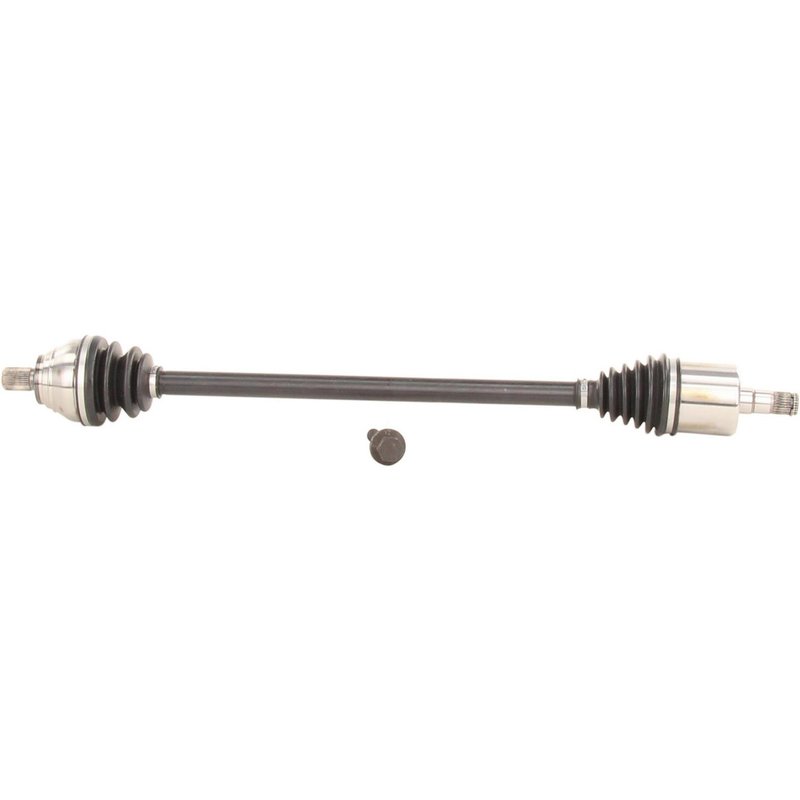

TrakMotive VW-8144 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8144 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34.88 |
| Overall Compressed Length (mm) | 886 |
| Product line | AAR CV Axle Shaft |
| Fits | Volkswagen · 6 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
ISO certified manufacturing. Produced by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-7334 and TrakMotive VW-8144 for the same application. See all 2.
TrakMotive VW-8144 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft VW-8144 is a new front right axle assembly for select Volkswagen Golf and Golf SportWagen models. It is built with a neoprene boot, spline-style shaft connections, and an Audi-style spline bolt outboard joint for direct replacement service.
Fits 2015-2017 Volkswagen Golf, front right. Fits 2015-2017 Volkswagen Golf SportWagen, front right. This application coverage makes VW-8144 a focused choice for drivers searching for a front right CV axle shaft for Volkswagen Golf 2015-2017 or a front right CV axle shaft for Volkswagen Golf SportWagen 2015-2017.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: VW-8144
- New replacement CV axle shaft
- Front right position
- Neoprene boot material
- Male inboard joint with spline connection
- Audi-style spline bolt outboard joint
- 26 inboard splines and 36 outboard splines
- Overall compressed length: 34.88 in. (886 mm)
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- Axle bolt length: 97 mm
- No ABS tone ring included
Product Details
VW-8144 is a direct-fit driveline component for the front right side of select Volkswagen Golf and Volkswagen Golf SportWagen vehicles. The axle uses a spline inboard connection and an Audi-style spline bolt outboard joint, with dimensions and spline counts matched to the listed applications. TrakMotive identifies this AAR CV Axle Shaft line as a new replacement option for service work where the original axle has worn joints, damaged boots, or driveline vibration concerns.
This part cross-references Cardone New 66-7334 for the same application. The TrakMotive VW-8144 part number is also used for identification in catalog and service lookup.
Common Issues This Part Can Address
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn or cracked boot conditions that expose the joint to contamination
- Axle noise caused by internal joint wear
- Front right driveline replacement needs on listed Volkswagen models
Installation Notes
Verify front right fitment by year, model, and axle configuration before installation. Confirm axle bolt thread size, hex size, spline counts, and overall length against the original part. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Because this axle does not include an ABS tone ring, compare the original axle setup before service.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft line is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2017 | Volkswagen | Golf | S | Automatic | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Volkswagen | Golf SportWagen | — | Automatic | 1.8L | L4 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Volkswagen | Golf | Base | Automatic | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Volkswagen | Golf SportWagen | — | Automatic | 1.8L | L4 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Volkswagen | Golf | — | Automatic | — | — | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Volkswagen | Golf SportWagen | — | Automatic | 1.8L | L4 | — | Front Right | Updated Design; AAR CV Axle Shaft |
