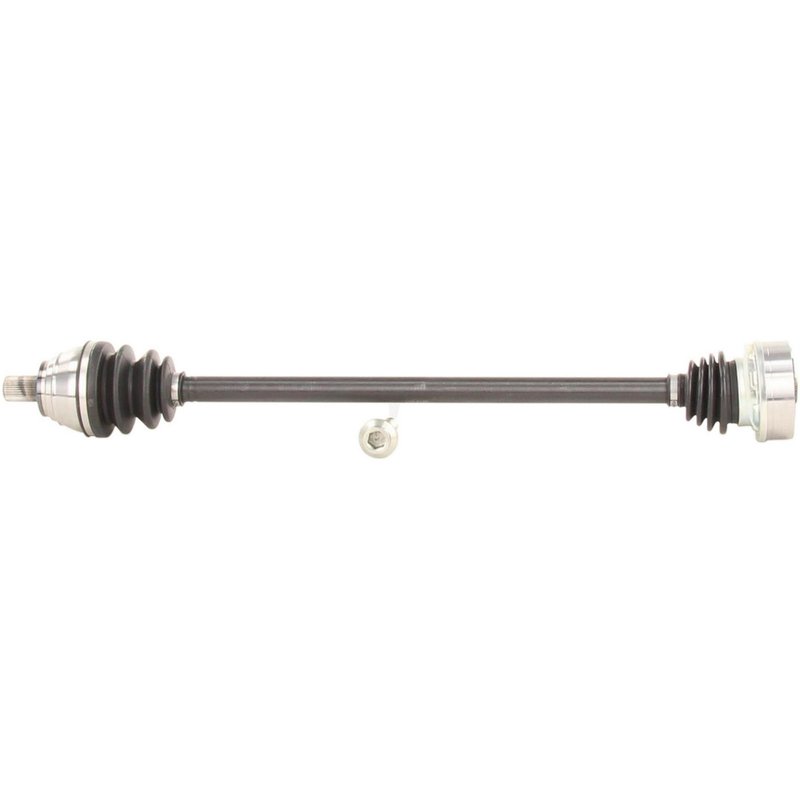

TrakMotive VW-8149 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8149 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 90 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 6 |
| Number Of Inboard Splines | / |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.89 |
| Overall Compressed Length (mm) | 810 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 13 vehicles |
New replacement shaft. Bolt-on design for straightforward installation.
Neoprene boot material. Helps resist wear for dependable joint protection.
ISO certified company. Built by a manufacturer certified to recognized quality standards.
Cross-references TrakMotive VW-8149, 5Q6407272F and 5Q6407272H for the same application. See all 4.
TrakMotive VW-8149 CV Axle Shaft
TrakMotive VW-8149 is a new front right CV axle shaft for select Volkswagen Golf, Golf Alltrack, and Golf SportWagen applications. It is built with a neoprene boot and bolt-on inboard connection for direct driveline service on listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: VW-8149
- Front right position
- New axle shaft construction
- Neoprene boot material
- Bolt-on inboard joint and inboard shaft connection style
- Audi-style spline bolt outboard joint
- 36 outboard splines
- 17 mm axle bolt hex size
- M16 x 1.5 axle bolt thread size
- 810 mm overall compressed length
- ABS tone ring not included
Product Details
This CV axle shaft is part of TrakMotive’s CV Axle Shaft line, a driveline-focused product range for replacement axle service. VW-8149 is engineered for the front right side and matches the listed Volkswagen fitments with a bolt-on inboard design and spline-style outboard connection. The axle is new, uses a neoprene boot, and is specified without an ABS tone ring. TrakMotive VW-8149 also cross-references OE numbers 5Q6407272F and 5Q6407272H for the same application.
Vehicle Fitment
- Fits 2019 Volkswagen Golf, front right. Standard duty replacement; CV axle shaft.
- Fits 2019 Volkswagen Golf Alltrack, front right. Standard duty replacement; CV axle shaft.
- Fits 2019 Volkswagen Golf SportWagen, front right. Standard duty replacement; CV axle shaft.
- Fits 2015-2018 Volkswagen Golf, front right.
- Fits 2018 Volkswagen Golf Alltrack, front right. Mexico built; CV axle shaft.
- Fits 2015-2018 Volkswagen Golf SportWagen, front right.
- Fits 2017 Volkswagen Golf Alltrack, front right.
Common Service Uses
- Front right axle replacement for worn or noisy driveline components
- Repair for clicking or popping during turns caused by CV joint wear
- Correction for vibration or shudder from a damaged axle shaft
- Replacement for torn boot or grease loss at the CV assembly
- Service part for Volkswagen Golf, Golf Alltrack, and Golf SportWagen front axle repair
Installation Notes and Tips
Confirm the front right position, axle bolt size, and spline count before installation. Verify whether the vehicle uses the listed bolt-on inboard connection and Audi-style spline bolt outboard joint. Because ABS tone ring is not included, compare the original axle configuration before ordering. Always inspect seals, hub hardware, and surrounding suspension components during axle service.
Quality Assurance
TrakMotive lists this axle shaft as a new replacement part and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2019 | Volkswagen | Golf | — | Hatchback | FWD | Manual | — | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Volkswagen | Golf Alltrack | — | — | — | Manual | — | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Volkswagen | Golf SportWagen | — | — | — | Manual | 1.8L | L4 | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Volkswagen | Golf | — | Hatchback | — | Manual | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
| 2018 | Volkswagen | Golf Alltrack | — | — | — | Manual | 1.8L | L4 | — | Front Right | Mexico built; CV Axle Shaft |
| 2018 | Volkswagen | Golf SportWagen | — | — | — | Manual | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf | — | Hatchback | — | Manual | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf Alltrack | — | — | — | Manual | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf SportWagen | — | — | — | Manual | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2016 | Volkswagen | Golf | — | Hatchback | — | Manual | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
| 2016 | Volkswagen | Golf SportWagen | — | — | — | Manual | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf | Launch Edition | Hatchback | — | Manual | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf SportWagen | — | — | — | Manual | 1.8L | L4 | — | Front Right | CV Axle Shaft |
