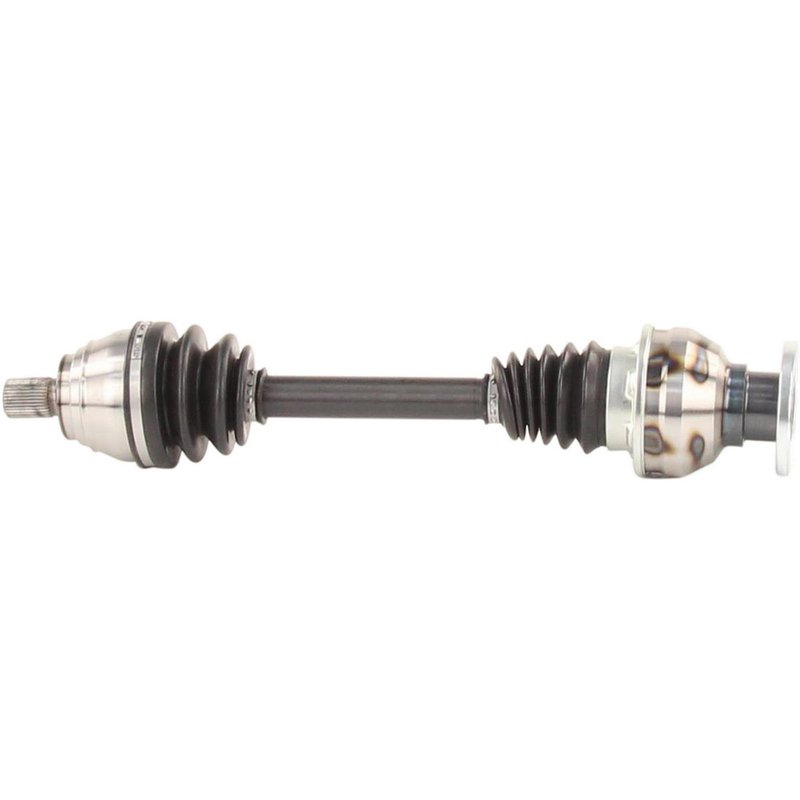

CV Axle ShaftTrakMotive VW-8152 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-8152 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 40 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 19.69 |
| Overall Compressed Length (mm) | 500 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 8 vehicles |
Cross-references TrakMotive VW-8152 and 5N0407761Q for the same application. See all 2.
$157.59Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive VW-8152 CV Axle Shaft - Front Left
This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2015 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2014 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2013 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2012 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2011 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2010 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| 2009 | Volkswagen | Tiguan | FWD | Manual | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||||
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — VW-81525N0407761Q
